Olympus CH2 Series - Assemble the Pinion Shaft

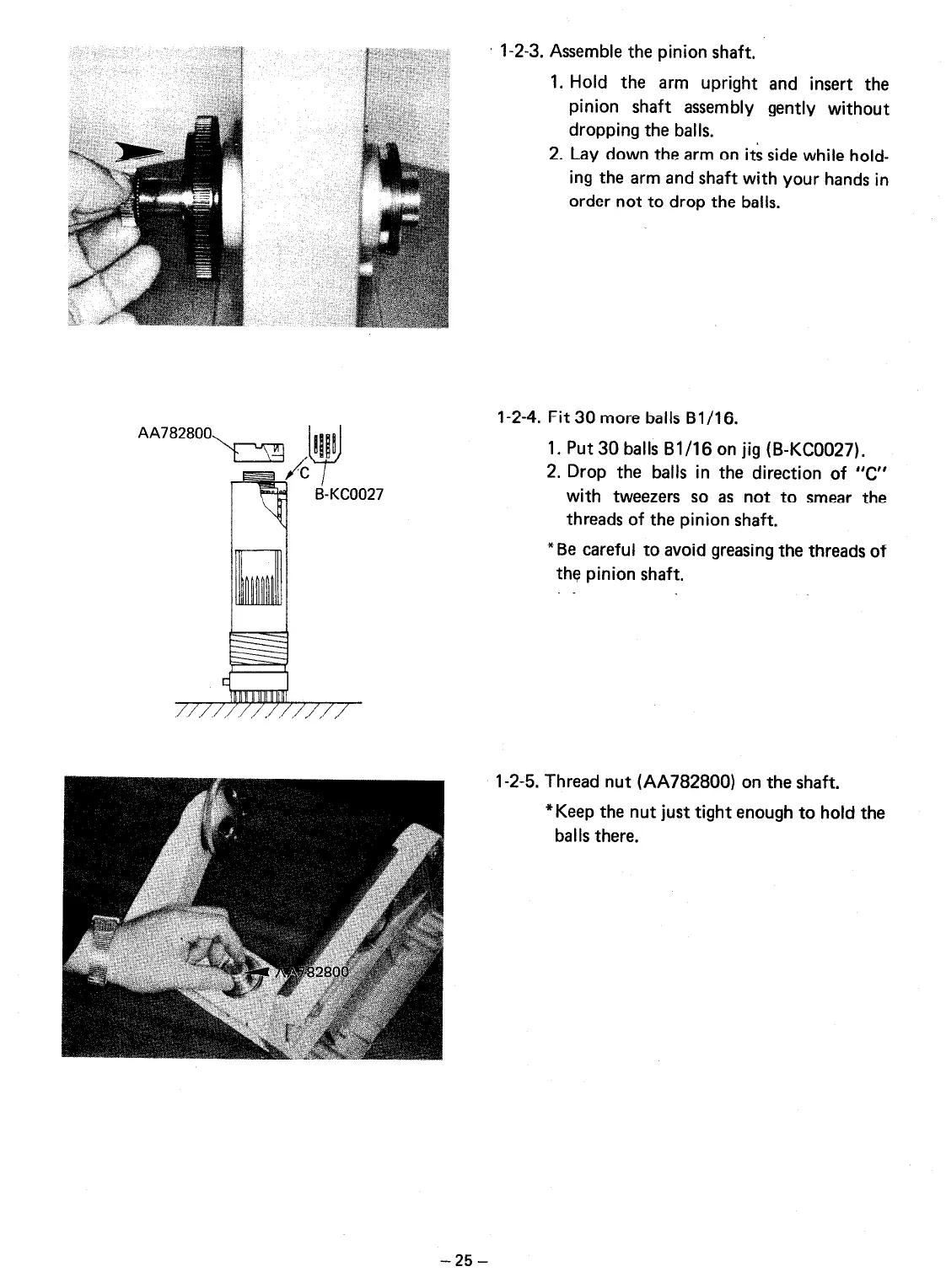

l-2-3. Assemble the pinion shaft.
1. Hold the arm upright and insert the
pinion shaft assembly gently without
dropping the balls.
2. Lay down the arm on its side while hold-
ing the arm and shaft with your hands in
order not to drop the balls.
AA782800
0027
l-2-4. Fit 30 more balls B1/16.
1. Put 30 balls B1/16 on jig (B-KCO027).
2. Drop the balls in the direction of “C”
with tweezers so as not to smear the
threads of the pinion shaft.
*Be careful to avoid greasing the threads of
the pinion shaft.
.
l-2-5. Thread nut (AA782800) on the
*Keep the nut just tight enough
bal Is there.
shaft.
to hold the
-25-
