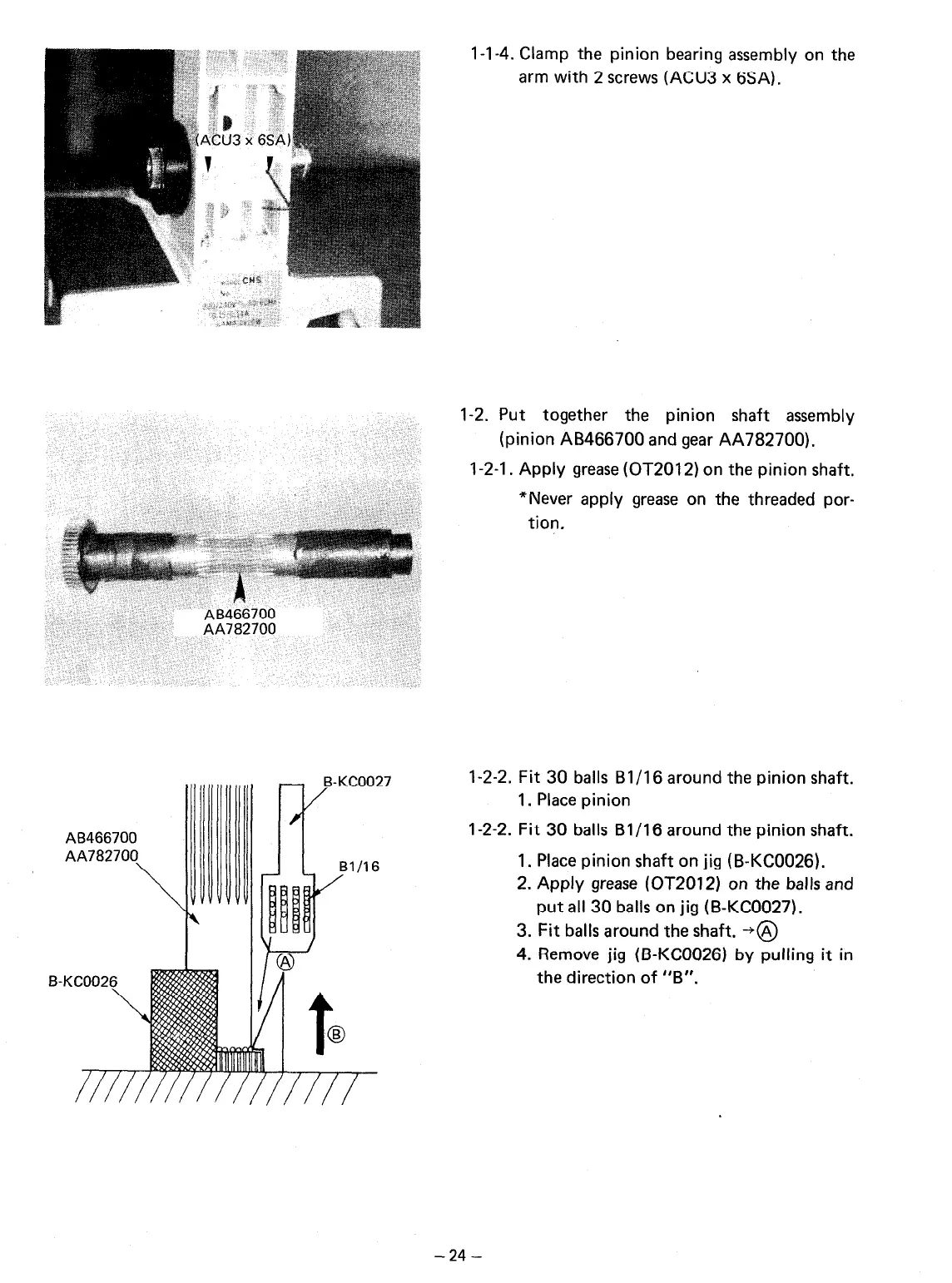

l-l-4. Clamp the pinion bearing assembly on the
arm with 2 screws (ACU3 x 6SA).
l-2. Put together the pinion shaft assembly
(pinion AB466700 and gear AA782700).
I-2-1 . Apply grease (OT2012) on the pinion shaft.
*Never apply grease on the threaded por-
tion.
l-2-2. Fit 30 balls B1/16 around the pinion shaft.
1. Place pinion
l-2-2. Fit 30 balls B1/16 around the pinion shaft.
1. Place pinion shaft on jig (B-KC0026).
2. Apply grease (OT2012) on the balls and
put all 30 balls on jig (B-KC0027).
3. Fit balls around the shaft. -+@
4. Remove jig (B-KC0026) by pulling it in
the direction of “B”.
- 24 -

Olympus CH2 Series Specifications

General

Type	Biological Microscope
Illumination	Halogen lamp 6V 20W
Stage	Mechanical stage with slide holder
Focus	Coaxial coarse and fine focusing knobs
Condenser	Abbe condenser (NA 1.25) with iris diaphragm
Magnification	40x to 1000x
Head	Binocular or trinocular
Power Supply	AC 100-240V, 50/60Hz
Objective Lenses	Achromat objectives
Eyepiece	WF10x/18mm
