Olympus CH2 Series User Manual

5.

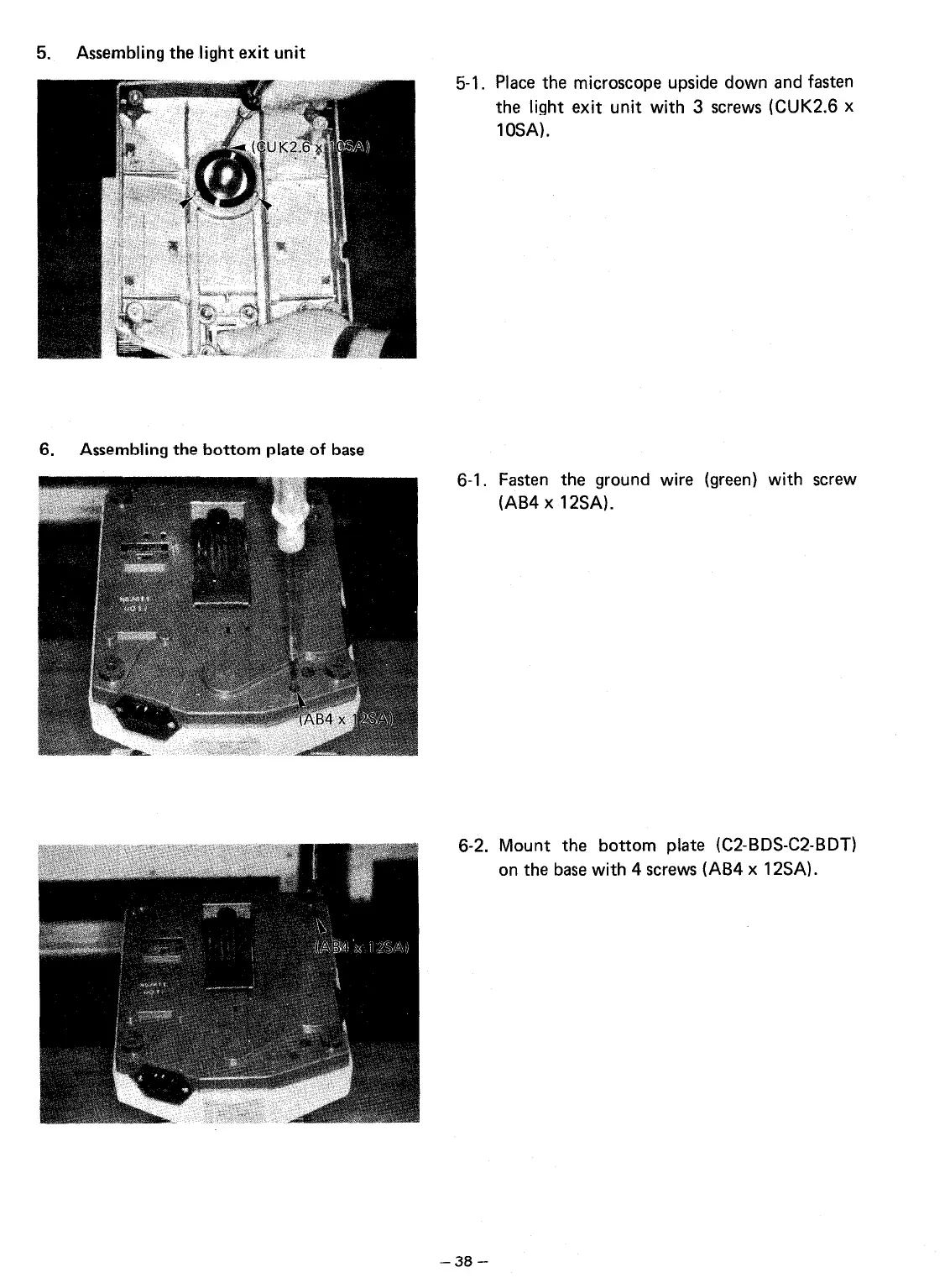

Assembling the light exit unit
5-l.
Place the microscope upside down and fasten
the light exit unit with 3 screws (CUK2.6 x
1OSA).
6.
Assembling the bottom plate of base
6-l.
6-2.
Fasten the ground wire (green) with
(AB4 x 12SA).
Mount the
bottom plate (W
-BDS-C2,
on the base
with 4 screws (AB4
x 12SA)
-BDT)
-38-

Olympus CH2 Series Specifications

General

Type	Biological Microscope
Illumination	Halogen lamp 6V 20W
Stage	Mechanical stage with slide holder
Focus	Coaxial coarse and fine focusing knobs
Condenser	Abbe condenser (NA 1.25) with iris diaphragm
Magnification	40x to 1000x
Head	Binocular or trinocular
Power Supply	AC 100-240V, 50/60Hz
Objective Lenses	Achromat objectives
Eyepiece	WF10x/18mm
