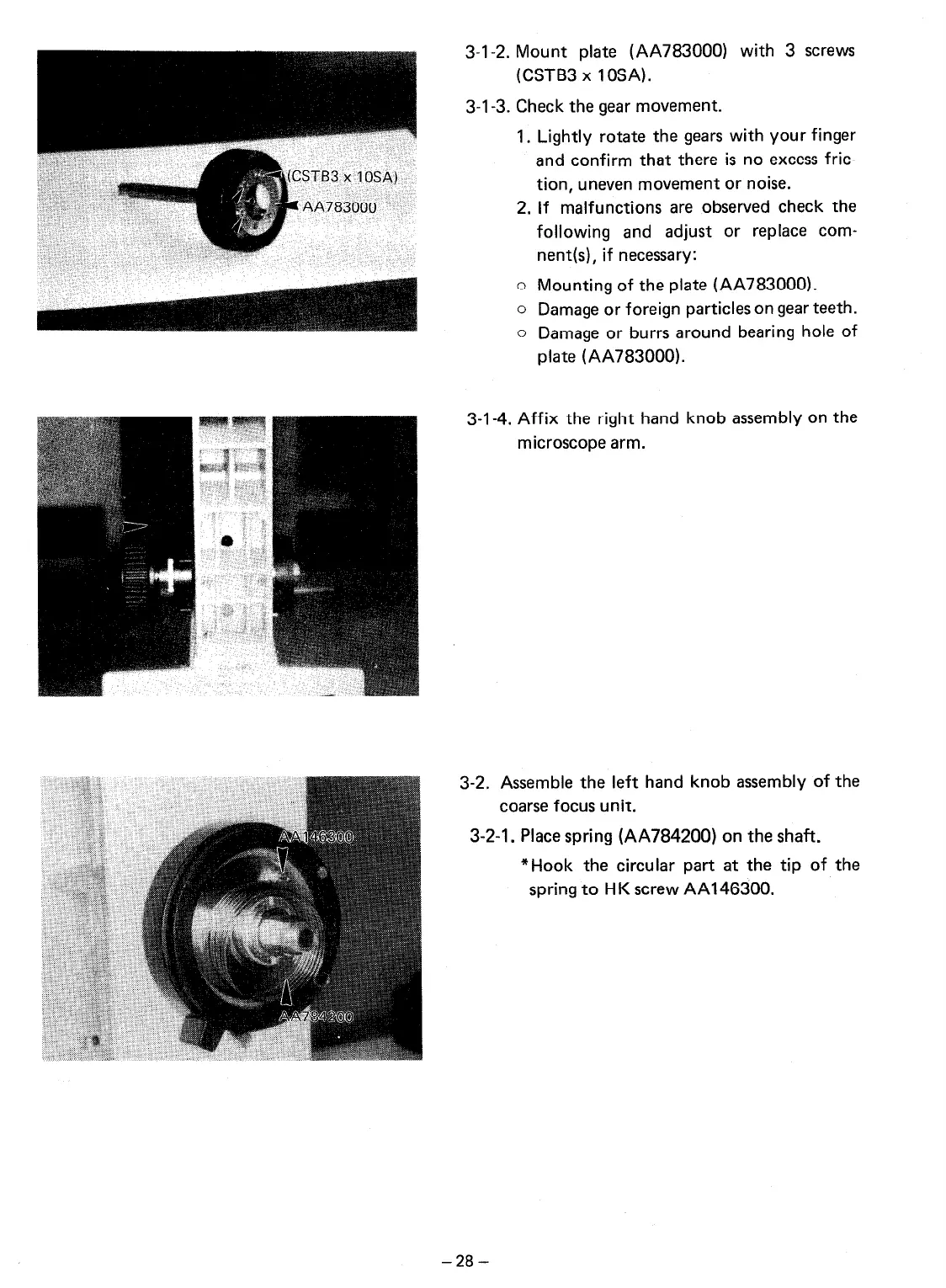

3-l-2. Mount plate (AA783000) with 3 screws
(CSTB3 x 10SA).
3-l -3. Check the gear movement.
1. Lightly rotate the gears with your finger
and confirm that there is no excess fric-
tion, uneven movement or noise.
2. If malfunctions are observed check the
following and adjust or replace com-
nent(s), if necessary:
o Mounting of the plate (AA783000).
o Damage or foreign particles on gear teeth.
o Damage or burrs around bearing hole of
plate (AA783000).
3-l-4. Affix the right hand knob assembly on the
microscope arm.
3-2. Assemble the left hand knob assembly of the
coarse focus unit.
3-2-l. Place spring (AA784200) on the shaft.
*Hook the circular part at the tip of the
spring to H K screw AA146300.
-28-

Olympus CH2 Series Specifications

General

Type	Biological Microscope
Illumination	Halogen lamp 6V 20W
Stage	Mechanical stage with slide holder
Focus	Coaxial coarse and fine focusing knobs
Condenser	Abbe condenser (NA 1.25) with iris diaphragm
Magnification	40x to 1000x
Head	Binocular or trinocular
Power Supply	AC 100-240V, 50/60Hz
Objective Lenses	Achromat objectives
Eyepiece	WF10x/18mm
