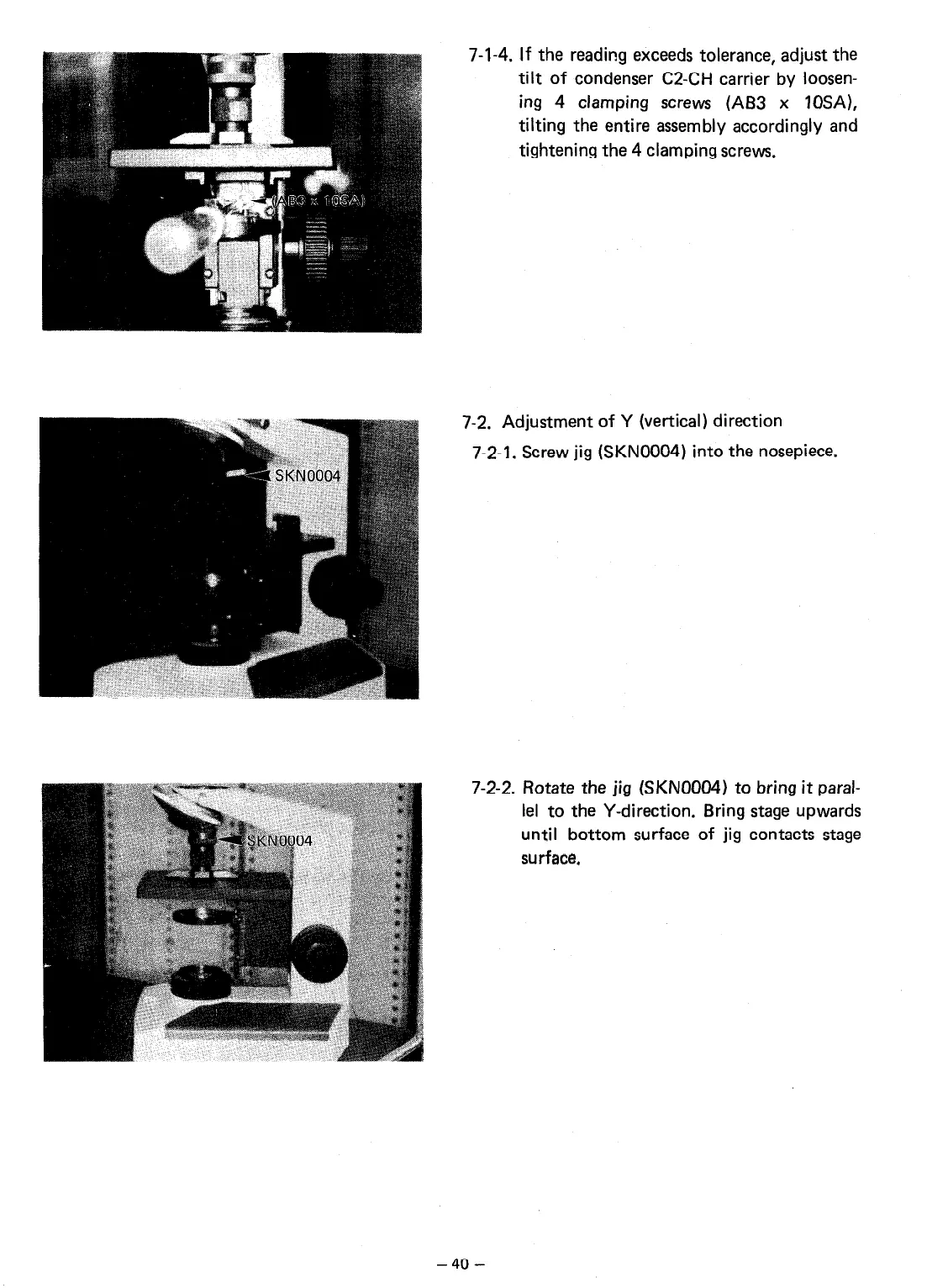

7-l-4. If the reading exceeds tolerance, adjust the
tilt of condenser C2-CH carrier by loosen-
ing 4 clamping screws (AB3 x lOSA),
tilting the entire assembly accordingly and
tightening the 4 clamping screws.
7-2. Adjustment of Y (vertical) direction
7-2-l. Screw jig (SKN0004) into the nosepiece.
7-2-2.
Rotate the jig (SKN0004) to bring it paral-
lel to the Y-direction. Bring stage upwards
until bottom surface of jig contacts stage
surface,
-4o-

Olympus CH2 Series Specifications

General

Type	Biological Microscope
Illumination	Halogen lamp 6V 20W
Stage	Mechanical stage with slide holder
Focus	Coaxial coarse and fine focusing knobs
Condenser	Abbe condenser (NA 1.25) with iris diaphragm
Magnification	40x to 1000x
Head	Binocular or trinocular
Power Supply	AC 100-240V, 50/60Hz
Objective Lenses	Achromat objectives
Eyepiece	WF10x/18mm
