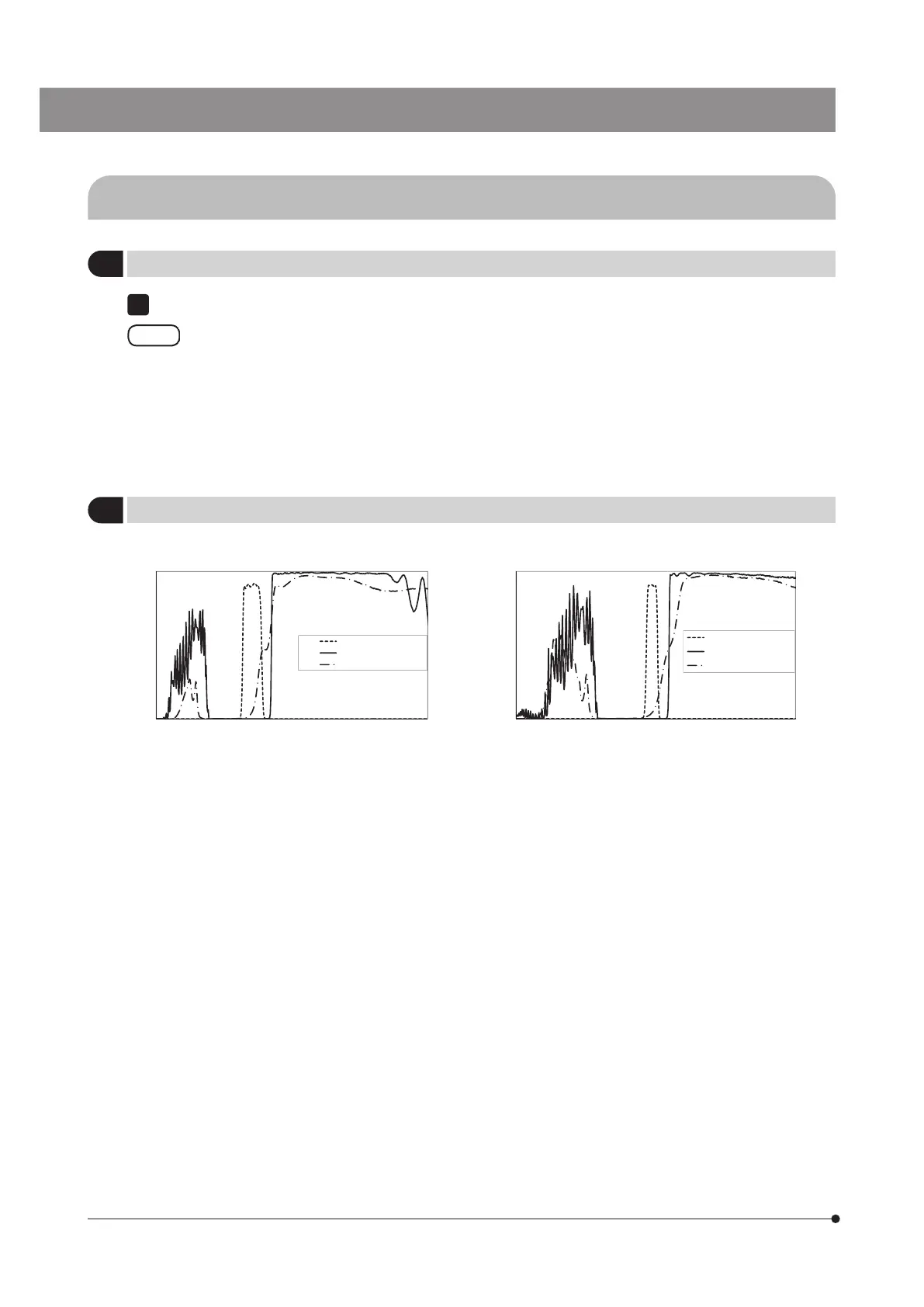

Spectral characteristics of the filter of the fluorescence mirror unit (Fluorescence set)
0
50
100
300 400 500 600 700 800
0
50
100
300 400 500 600 700 800
4-11 Selecting procedures of the fluorescence mirror unit (including options)
1
Selecting the fluorescence mirror unit (Fluorescence set)
Referring to the followings, select the fluorescence mirror unit to be used for observation.
· The fluorescence illuminator CKX3-RFA contains the B-excitation fluorescence mirror unit and the G-excitation
fluorescence mirror unit as a standard mirror unit.
· In addition to the B-excitation or the G-excitation fluorescence mirror units, optional mirror units are also prepared.
· If you use an optional mirror unit, be sure to remove the empty mirror unit for bright field observation or the
B-excitation or the G-excitation fluorescence mirror units in advance.
· For procedures to attach/detach the fluorescence mirror unit to/from the fluorescence mirror unit slider, see
page 34.
1
TIP
excitation filter
absorption filter
dichroic mirror
excitation filter
absorption filter
dichroic mirror
