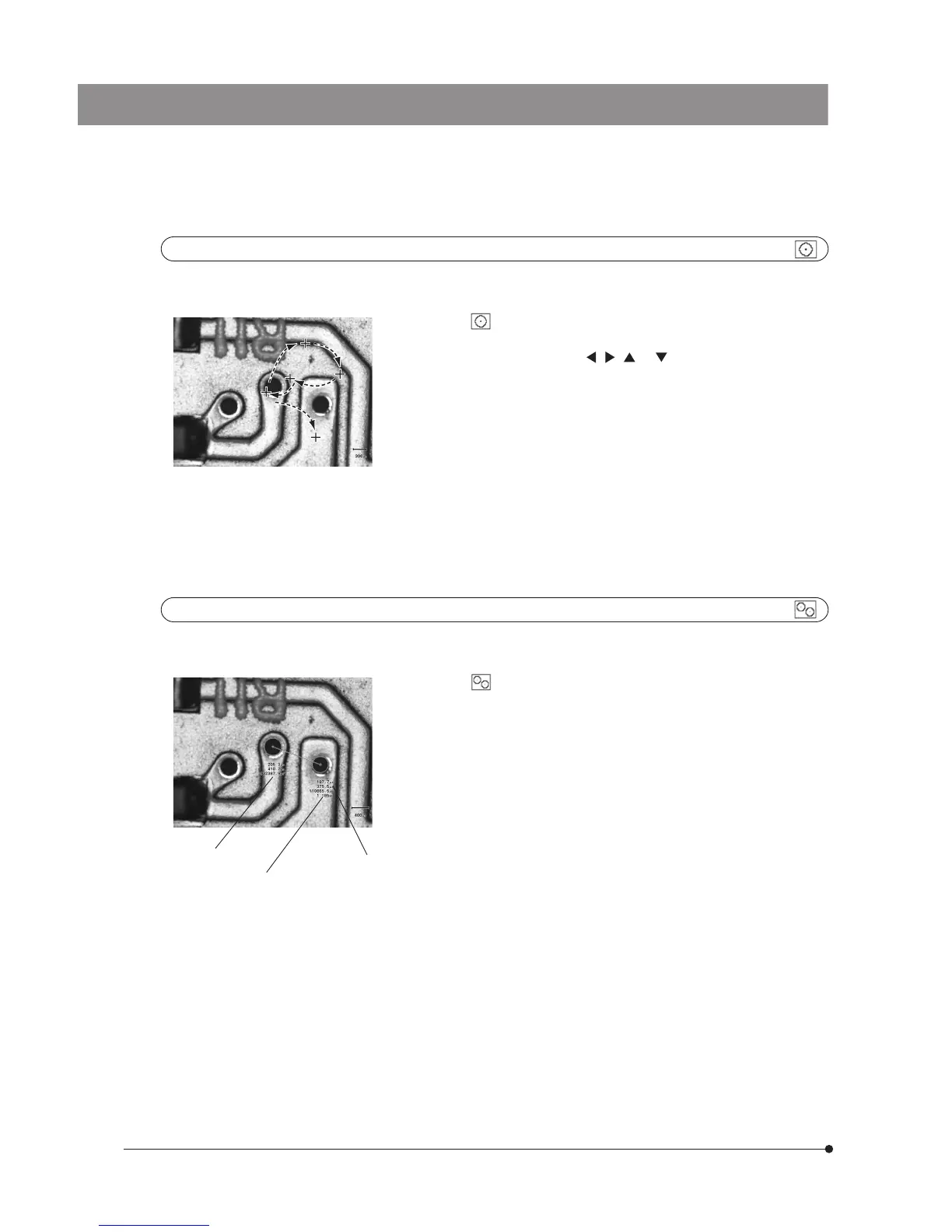

28
1. When is selected, the + (blue) cursor appears on the image center,
indicating that the circle measurement mode is activated.
2. Press cross-cursor button , , or to move the + cursor to the
point you want to set as the first point, and press the SET/OK button.
3. Set the second and third points in the same way as above, and press the
SET/OK button for each point.
4. A circle that passes the three points as the circumference is displayed,
and the + cursor returns to the image center.
}If the three points are set improperly for drawing a circle, the + cursor
turns from blue to red and no more input is accepted. In this case, restart
the procedure from the beginning.
5. Move the + cursor to the position you want to display the measurement
results, and press the SET/OK button.
}The maximum number of measurements is 10 including other
measurement items.
Two-circle measurement
}The two-circle measurement measures the radius, diameters and areas of two circles and the distance between their
centers.
1. When is selected, the + (blue) cursor appears on the image center,
indicating that the two-circle measurement mode is activated.
2. Perform the circle measurement procedure above for each circle.
}The distance between the centers of two circles is displayed in the
measurement results for the last circle.
}The maximum number of measurements is 10 including other
measurement items.
Circle measurement
}The circle measurement measures the radius, diameter and area of a circle that can be specified by selecting three
points.
First point
