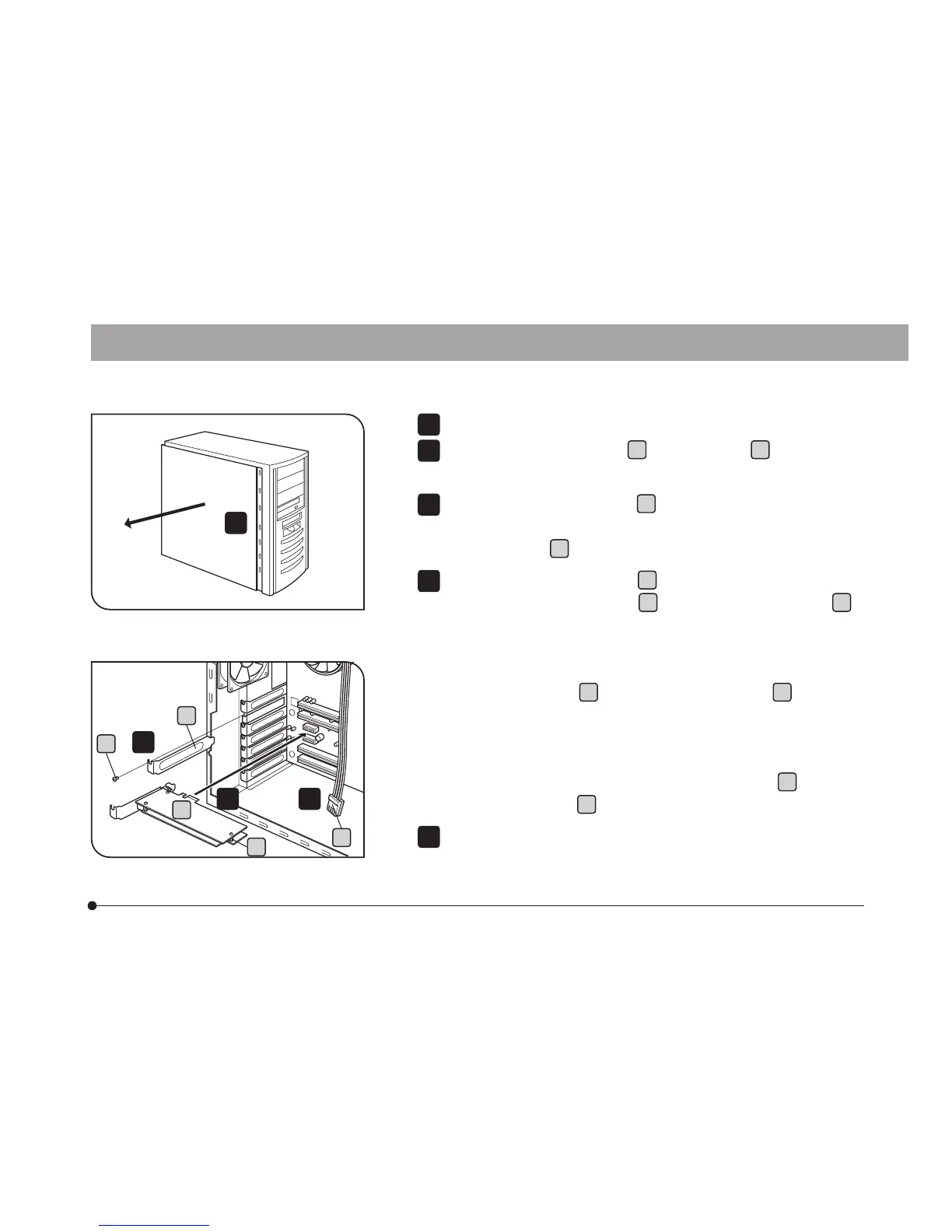

Open the housing of the computer.
Remove the clamping screw
b
of the slot cover
a
of an unused
PCIe slot on the motherboard and remove the cover.
Insert the PCIe interface board
c
carefully without touching the
board surface directly by hand, and attach the slot cover using the
clamping screw
b
removed above.
Connect the FDD power cable
d
from the computer’s power
supply to the power connector
e
on the PCIe interface board
c
.
If your computer does not have an available FDD power cable or
the FDD power cable is too short, connect the provided HDD-to-FDD
power conversion cable from the computer’s HDD power cable to
the power connector
e
on the PCIe interface board
c
.
And if your computer does not have an available HDD(4-pin) power
cable, connect the provided SATA-to-HDD(4-pin) power conversion
adapter and HDD(4-pin)-to-FDD power conversion cable from the
computer’s SATA power cable to the power connector
e
on the
PCIe interface board
c
.
Close the computer housing.
