34
Exposure
time lag
Trigger output
Exposure
Readout &
transfer to PC
DP73
Trigger Output
· The trigger output can be used to control a commercially available shutter.
· The positive and negative logics of the trigger output can be switched with the cellSens / OLYMPUS
Stream.
· The trigger output is interlocked with the shutter release/close operations of the cellSens / OLYMPUS
Stream.
· The external trigger signal is output by starting still image acquisition when the shutter is closed.
· The time lag from the trigger output to the start of exposure can be set between 0 and 2 sec. on the
cellSens / OLYMPUS Stream.
· The trigger output is a TTL compatible signal.
V
OH
: 2.4 V (min.). V
OL
: 0.4 V (max.).

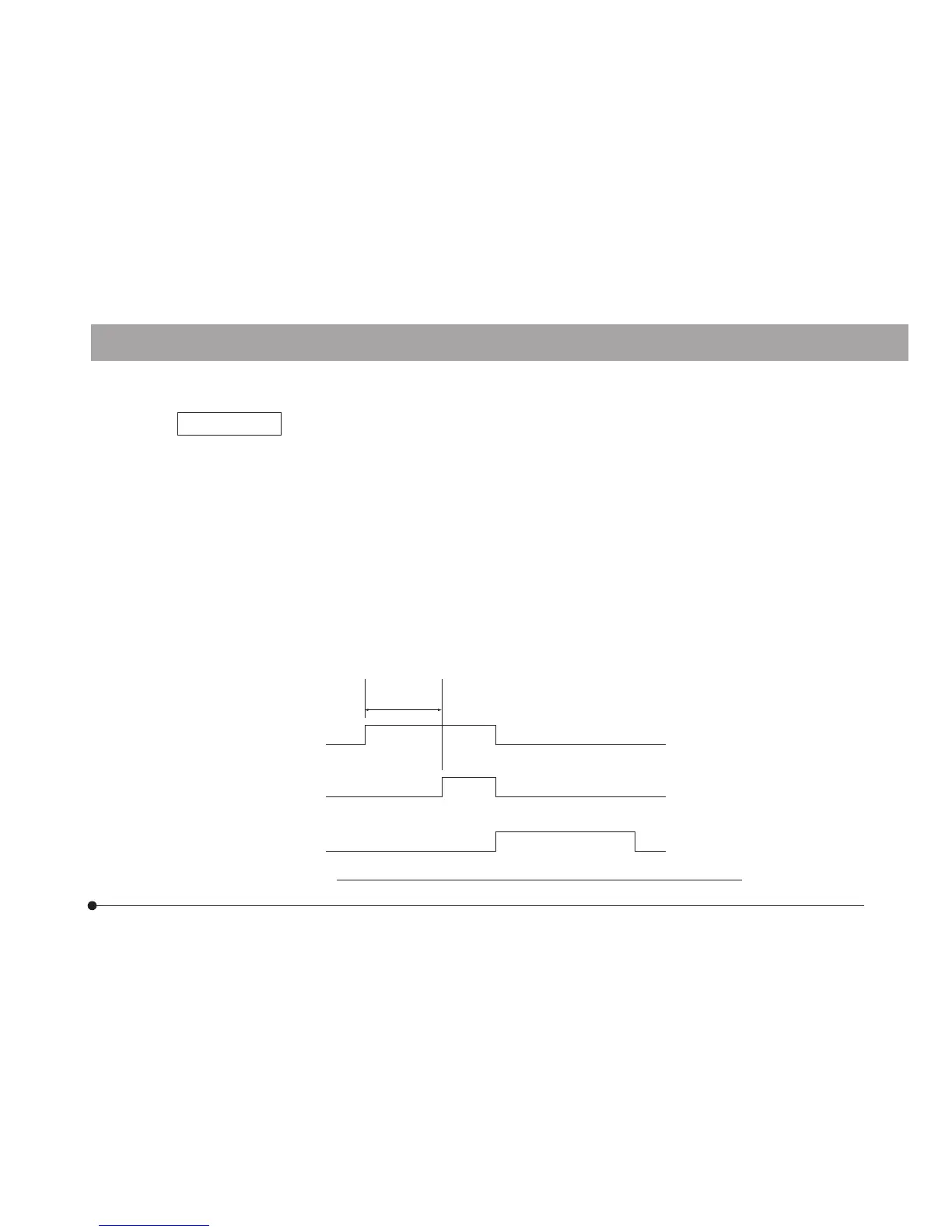

Trigger Output Timing Chart in Still Image Recording (Positive logic)
