Olympus DP73 - Connecting the Cables; Connecting the Interface Cable

25
Fig. 9
Fig. 10
· The cords and cables are vulnerable to bend or twist. Do not
apply excessive force to them.
· Be sure to switch off the computer before proceeding to the
connections.
· Always use the cables designated by Olympus.
· When connecting the cable, insert the connector plug in the
proper direction.
· Keep the cables well away from the equipments generating
high heats, such as the lamp housing of microscope.
Cable side Camera head/
Computer/
PCIe Extension Box side

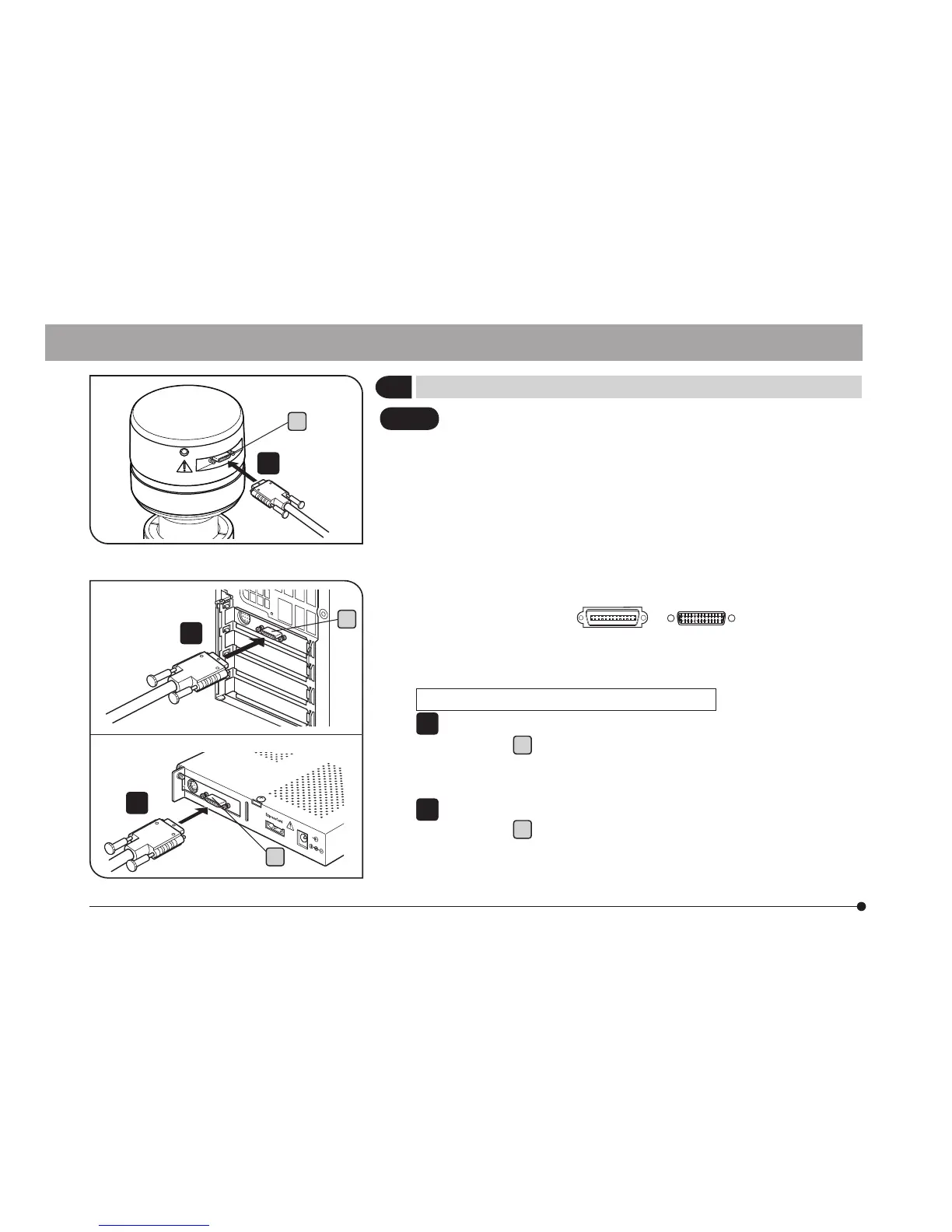

Connecting the Interface Cable (Figs. 9 & 10)
Insert the connector of the interface cable all the way into the
connector
a
of the camera head and secure the clamping screws
on both sides of the connector, and check that the interface cable
will not slip out.
Insert the connector of the
interface cable all the way into the
connector
b
of the Computer or PCIe Extension Box and secure
the clamping screws on both sides of the connector, and check that
the interface cable will not slip out.
CAUTION
1
22
1
2
2
b
b
a
Computer
PCIe Extension Box
(Fig. 9 - Fig. 13)
4
Connecting the Cables
