Olympus DP73 - Installing the Camera Head

23

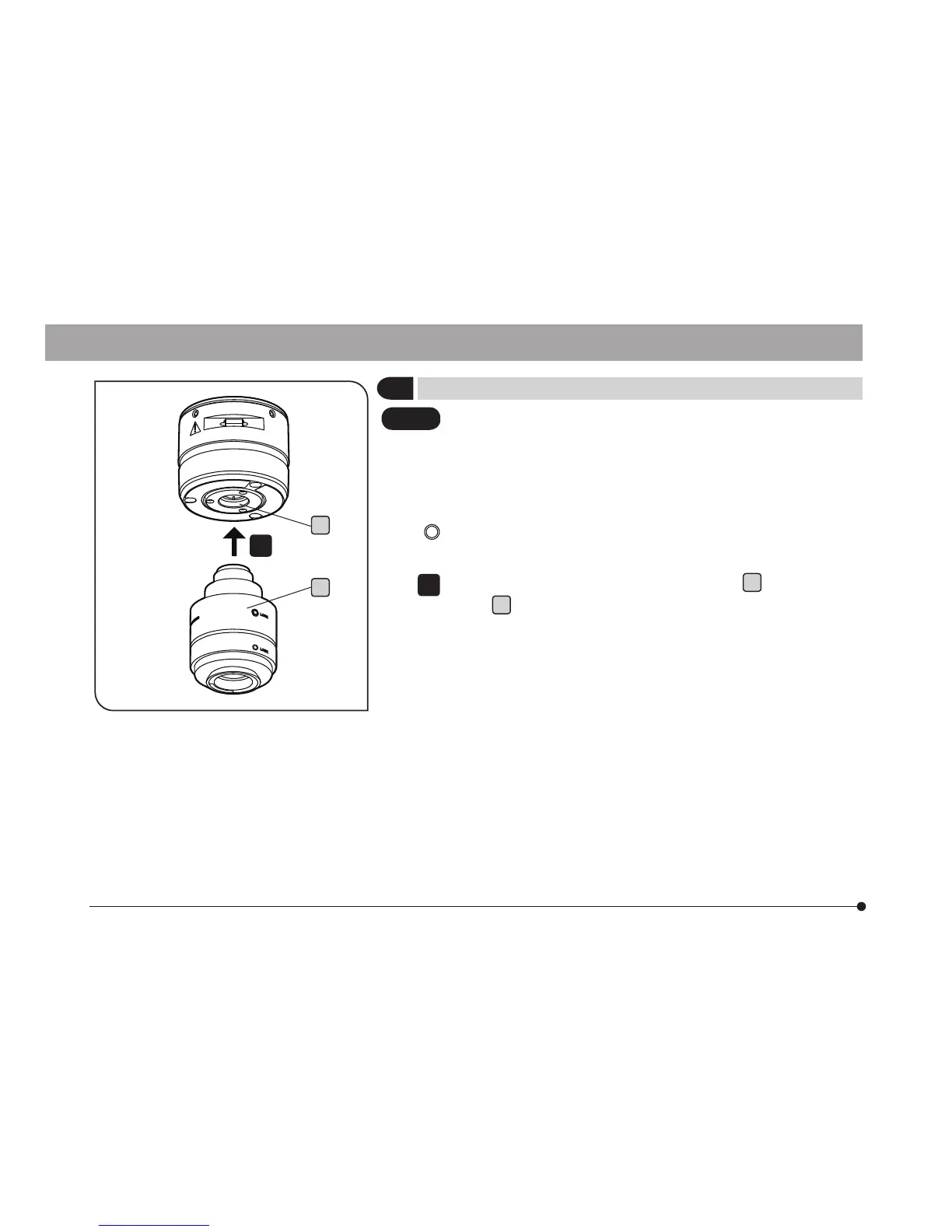

Fig. 7
· The C-mount thread has a sharp edge that should not be
touched.
· The camera head and camera adapter are precision
modules. Be careful not to drop them during attaching or
detaching.
The following procedure deals with the case using the U-TV1XC
C-mount camera adapter.
Screw in the U-TV1XC C-mount camera adapter
a
into the mount
thread
b
at the bottom of the camera head.
CAUTION
1
1
a
b
(Fig. 7)
