7
MVX10

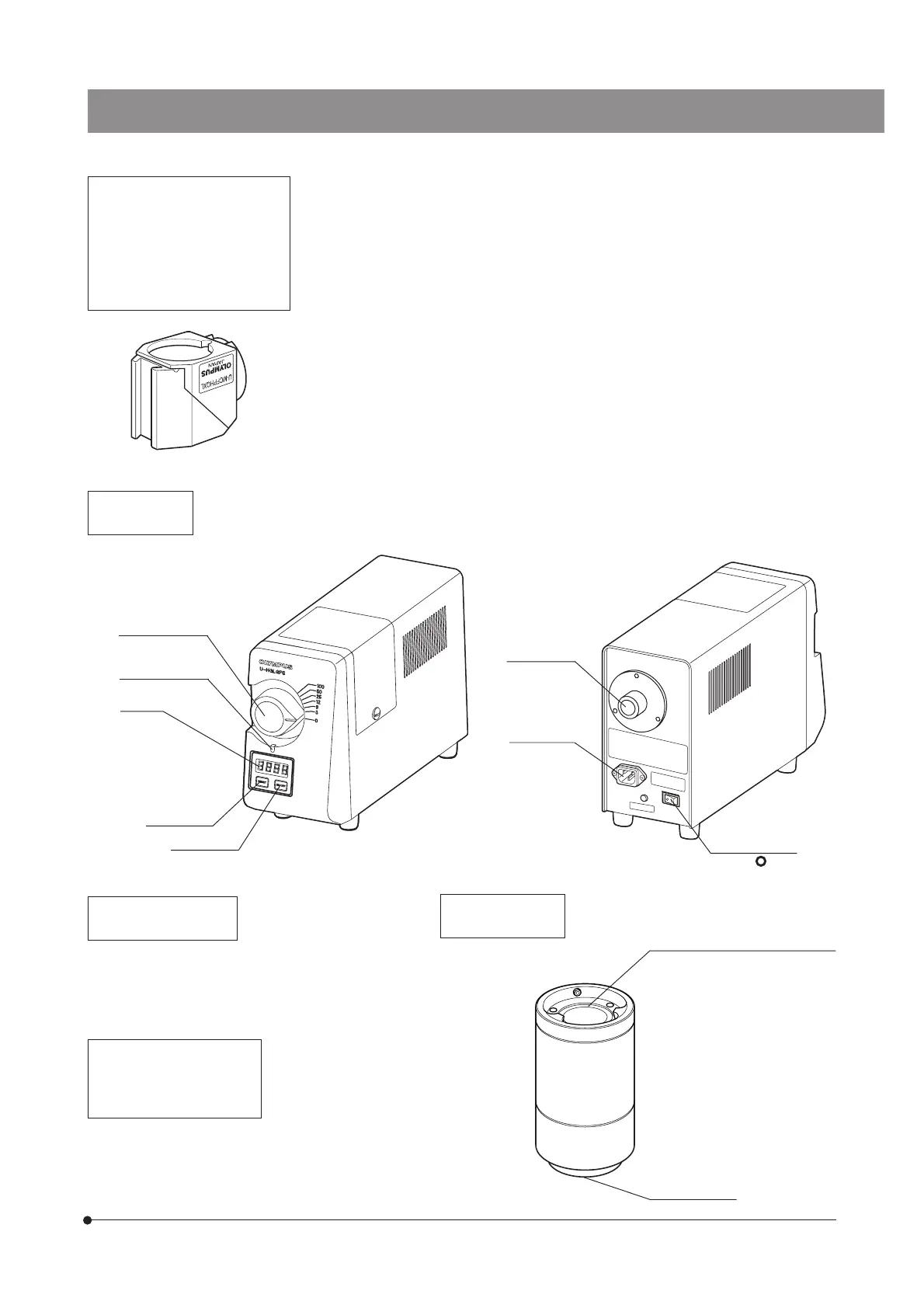

Fluorescence mirror units
U-MCFPHQ/XL
U-MGFPHQ/XL
U-MYFPHQ/XL
U-MRFPHQ/XL
U-MGFP/XL
U-MGFPA/XL
}Up to three fluorescence mirror units can be mounted by placing them in
every other dovetail of the six dovetails of the MVX-RFA.
# Each fluorescence mirror unit is composed of the dichroic mirror,
barrier filter and excitation filter that match a specific fluorescent
protein.
}When fabricating an original fluorescence unit by your own, it is
recommended to use the U-MF/XL mirror unit frame (which does
not incorporate a filter). (P. 39)
Use the blank indicator sheets provided with the illuminator to write the
original mirror unit name.
Tube Lens Unit
MVX-TLU
Camera adapter mount dovetail
Mount dovetail
}For details, see the instruction manual provided
with the U-LH75XEAPO and U-RX-T.
Light source
U-HGLGPS
Light volume
adjustment dial
Lighting display
LED
Power switch
Light guide
entrance
Power cord
connector
I (ON) / (OFF)
}For details, see the instruction manual provided with the U-HGLGPS.
Xenon Lamp Housing
U-LH75XEAPO
Power Supply Unit
U-RX-T
Counter
Reset swich
Lamp swich
Power Supply Unit
U-RFL-T
}For details, see the instruction manual provided
with the U-RFL-T.
