31
MVX10
3
Caution
# Do not project the image of the external light source filament on the frosted surface of the frosted filter. Otherwise
the frosted filter may deteriorate.
# Use neutral detergent to clean the frosted filter.
# In transmitted light observation at a total magnification of no more than 10X, the field of view may be obscured in
the peripheral sections depending on the stage in use.
10-6 Vertical-Movement Stage SZ2-FO
#The MVX-2RE revolving nosepiece cannot be used in combination with this stage (because the objectives
interfere with the stage).
Stage glass
Stage plate
1

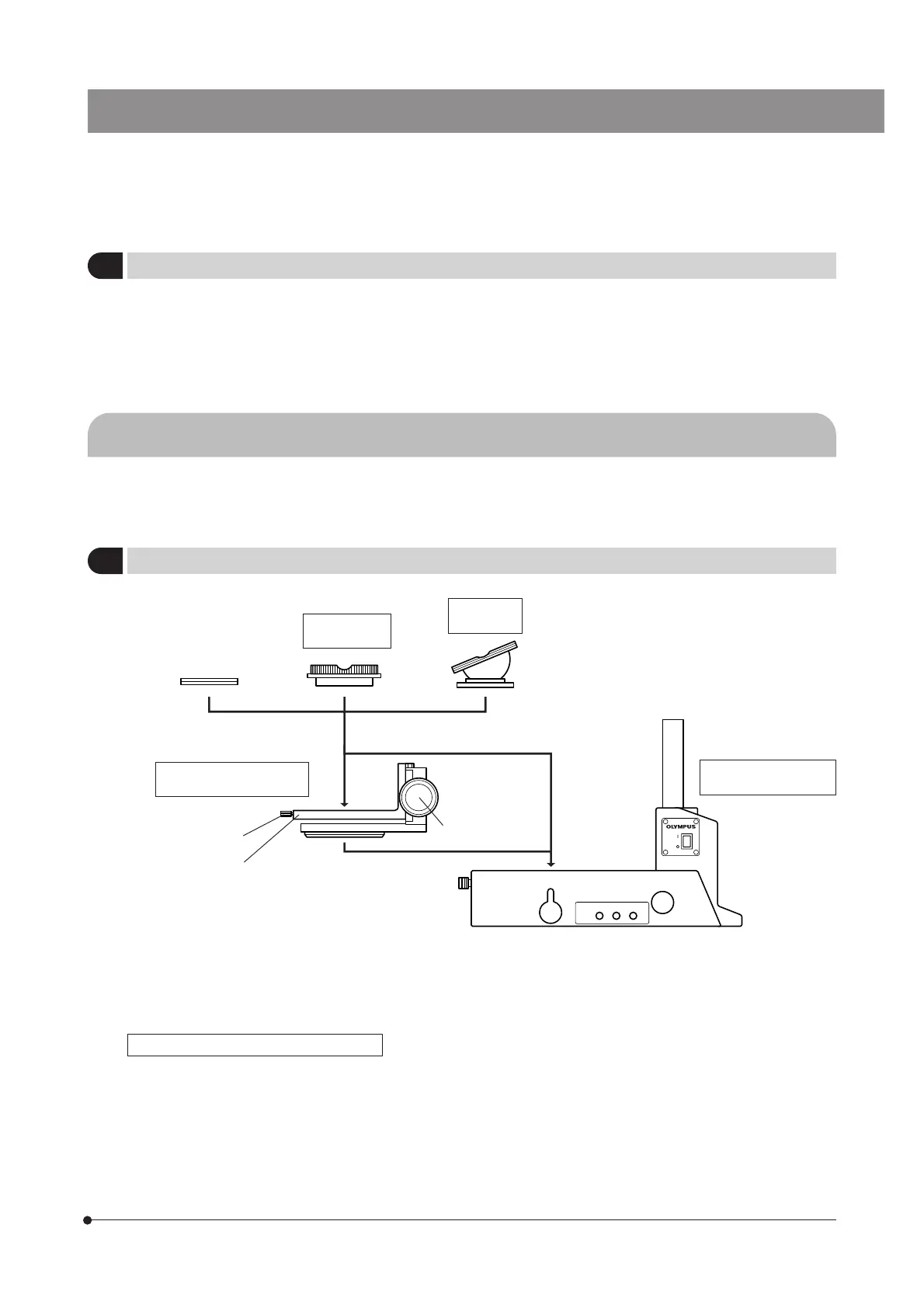

Module System Diagram
Clamping knob
Stage
Gliding Stage
SZH-SG
Cup Stage
SZH-SC
Vertical-Movement Stage
SZ2-FO
Focus adjustment
knob
SZX-STL
SZX illumination base
· When using a filter or polarized simplified light module in combination with a transmitted illumination base, install the filter
holder or polarizer on the base before installing the vertical-movement stage.
· The vertical-movement stage can also be installed so that the focus adjustment knob comes on the side of the observer
(i.e. in a 180° opposite orientation to the above figure).
Modules Combinable with the SZ2-FO
· Stage plate : SP-C, SP-FL, SP-BW-2
· Base : SZX-STL, SZX illumination base
· Stage : SZX-SC, SZH-SG*
* The movement in the front-rear direction is possible only in the section in front of the center due to
interference with the focus adjustment knob of the SZ2-FO.
