}Use the fluorescence mirror unit that is optimum for each purpose of observation.
4-3 Coaxial Fluorescence Illuminator
1
Selecting the Fluorescence Mirror Unit
Mirror unit name Dichroic mirror Excitation filter Barrier filter Application
U-MCFPHQ/XL DM450HQ BP425-445HQ BA460-510HQ ECFP
U-MGFPHQ/XL DM485HQ BP460-480HQ BA495-540HQ EGFP
U-MYFPHQ/XL DM505HQ BP490-500HQ BA515-560HQ EYFP
U-MRFPHQ/XL DM565HQ BP535-555HQ BA570-625HQ RFP
U-MGFP/XL
DM505 BP460-490
BA510IF
EGFP
U-MGFPA/XL BA510-550

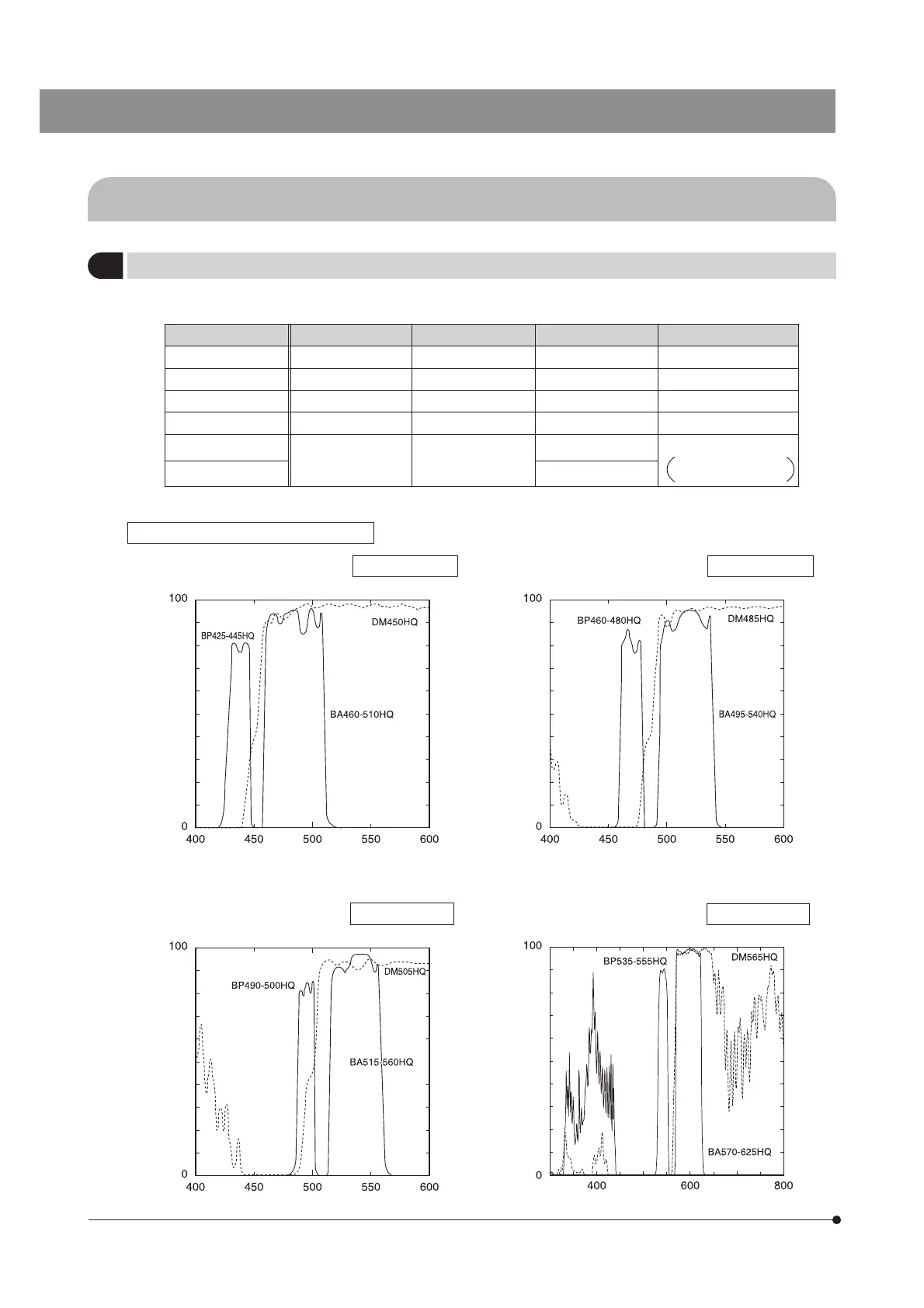

Spectral Characteristics of the Filters
1. Filter for fluorescent protein CFP U-MCFPHQ/XL 2. Filter for fluorescent protein GFP U-MGFPHQ/XL
Transmittance %
Wavelength nm
3. Filter for fluorescent protein YFP U-MYFPHQ/XL 4. Filter for fluorescent protein RFP U-MRFPHQ/XL
U-MGFPA/XL:
For dye separation
Transmittance %
Wavelength nm
Transmittance %
Wavelength nm
Transmittance %
Wavelength nm
