15
MVX10
5

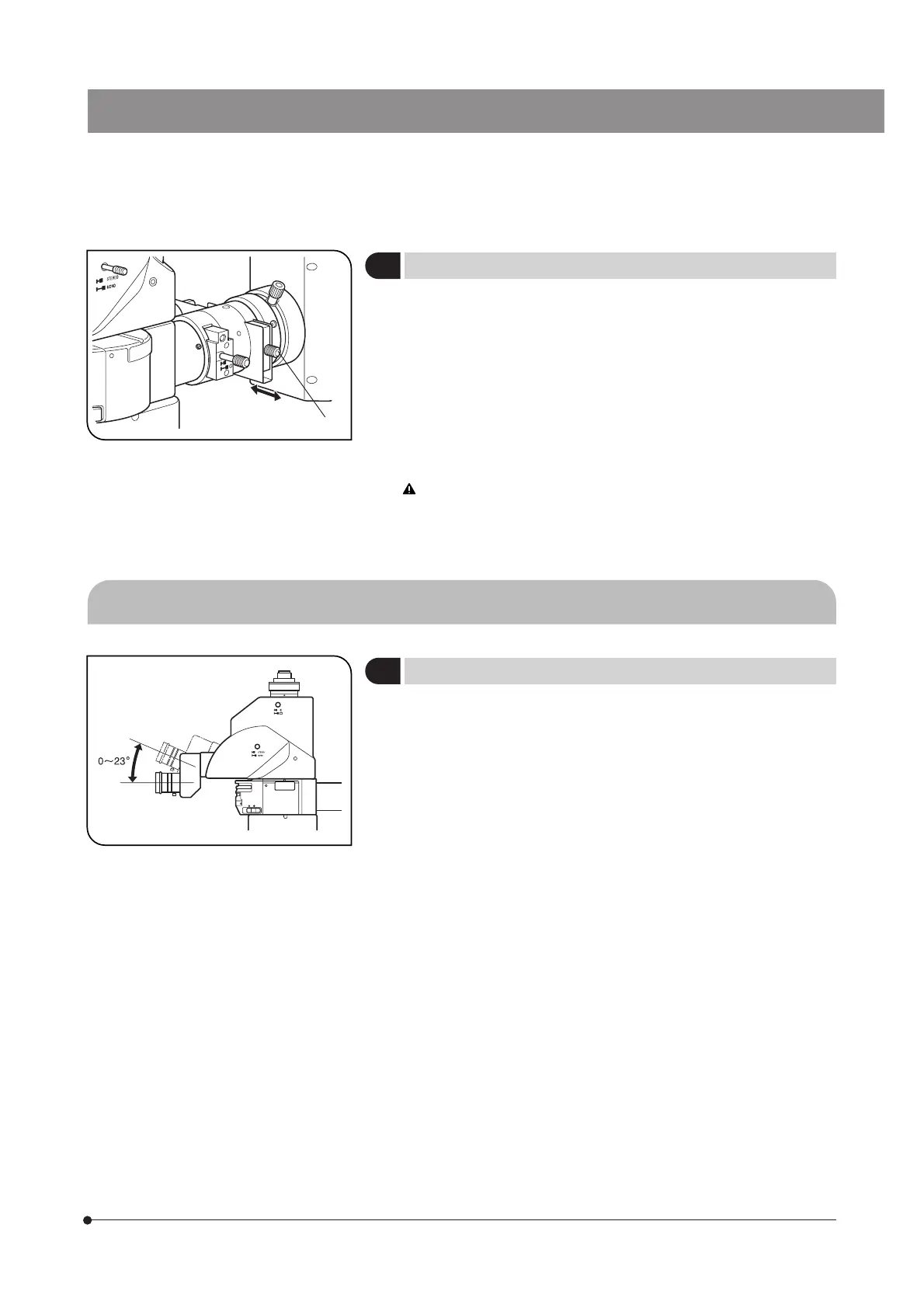

Switching the Filter Slider Knob
(Fig. 9)
}Hold the filter slider knob @ of coaxial fluorescence illuminator and move
it toward the left or right to select one of the two filter pockets or idle
position.
The idle position is selected when the knob is pulled to the rightmost
stop position. Pushing the knob at the click position one step after the
idle position selects filter pocket 1, and pushing it further to the leftmost
stop position selects filter pocket 2.
To adjust the brightness using filters, mount the required ND filter
(32ND6, 32ND12, 32ND25, 32ND50) or frost filter (32FR80) in the filter
pockets and select the desired filter pocket with the filter slider knob.
When the mercury burner has been turned on for an extended
period, the metallic part of the filter slider knob and the ND filter
get very hot. Be careful when switching the filter slider knob or
changing the filter.
4-4 Observation Tube
1
Adjusting the Tilt
(Fig. 10)
}Adjust the height and tilt of the eyepieces of the binocular assembly to
the most comfortable viewing position.
Holding the binocular assembly with both hands, raise or lower it to the
desired position.
# Do not attempt to force the binocular assembly past the upper or
lower stop positions. Applying excessive force could destroy the
mechanism.
Fig. 9
@
Fig. 10
