28
2

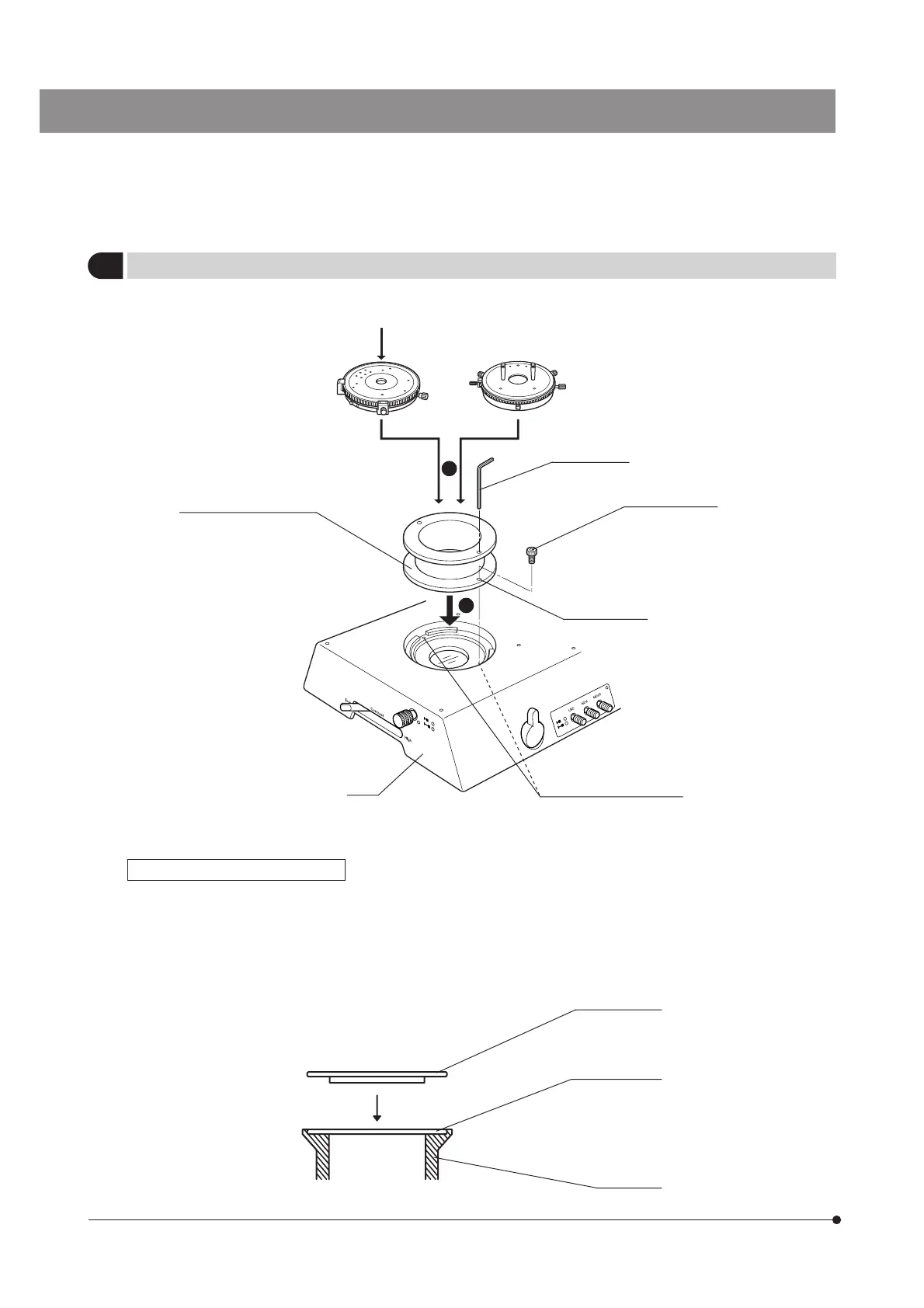

Assembly
Mechanical stage
U-FMP
Rotary stage
U-SRP
BX stage adapter type 1
SZX-STAD1
Rotary stage
U-SRG
Clamping screws
Allen wrench
Clamping screw
Attaching hole
Mounting threaded hole
Base
Mounting the Polarizer (SZX-PO)
When simplified transmitted polarized light observation is required, install the polarizer on the SZX-STAD1 BX stage
adapter type 1.
To install the polarizer, place the polarizer frame in the polarizer mount on the upper part of the SZX-STAD1.
(The polarizer oscillation directions <
––
> are basically horizontal.)
Polarizer frame
Polarizer mount
SZX-STAD1
1
2
