41
MVX10
1. Using the Allen screwdriver, loosen the clamping screw @ of the coaxial
fluorescence illuminator.
2. Fit the round dovetail ² on the bottom of the trinocular head into the
mount dovetail ³ of the illuminator and tighten the clamping screw.
1. Remove the eyepiece dust caps @ and loosen the eyepiece clamping
knobs ² completely.
2. Gently insert the eyepiece (WHN10X-H) ³ into the left and right eye-
piece sleeves all the way until they stop.
3. Tighten both eyepiece clamping knobs ².

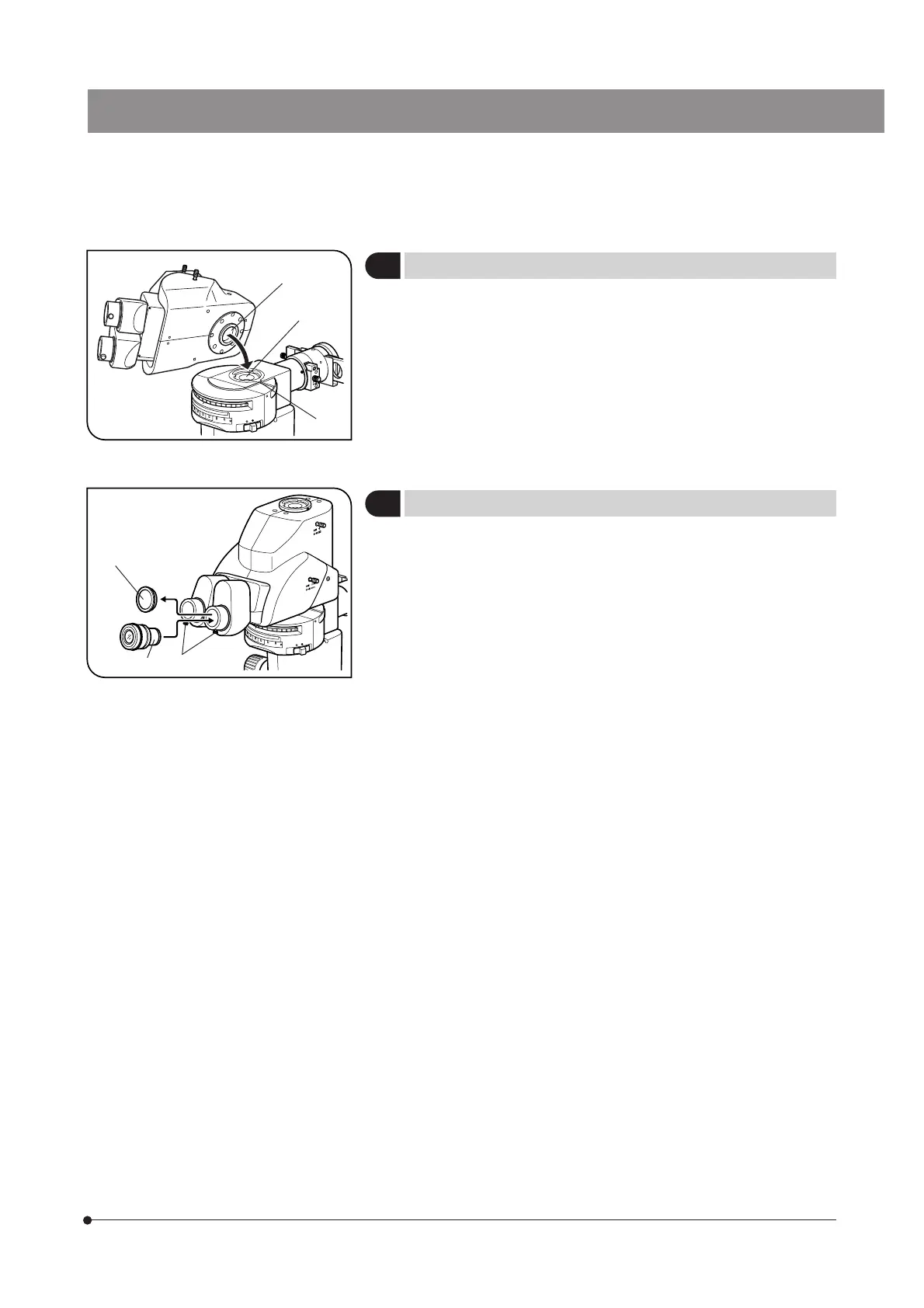

Fig. 40
@
²
³
Fig. 41
@
²
³
8
Mounting the Tilting Trinocular Head
(Fig. 40)
9
Mounting the Eyepieces
(Fig. 41)
