CMC 353 Reference Manual
62

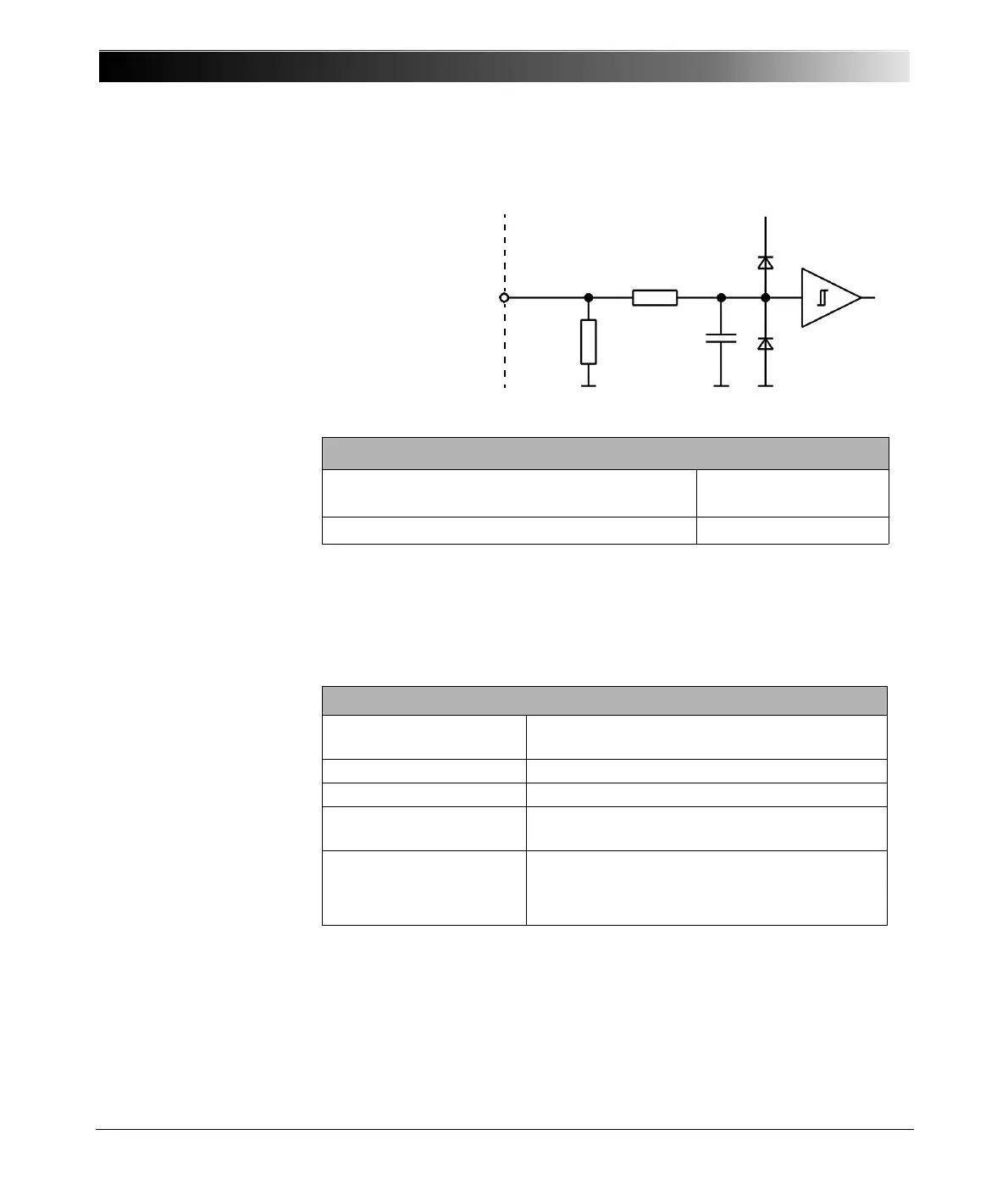

Figure 6-17:
Circuit diagram of
"ext. Interf." counter inputs
1 and 2
Table 6-20:
Ordering Information
For a manufacturer description about the connection sockets "LL out 1-6"
and "ext. Interf.", visit the Web site www.lemo.com.
6.5 Technical Data of the Ethernet Ports
Table 6-21:
Technical data of the
Ethernet ports
Rear side
of CMC 353
+15 V
100 k
Ω
22 kΩ
47 pF
Inside of
CMC 353
Counter inputs 1 & 2
"ext. Interf."
Ordering Information
Connector for one guide notch and pull relief
(for "ext. Interf")
FGG.2B.316.CLAD 72Z
Black anti-bend cable cover GMA.2B.070 DN
Ethernet ports ETH1 and ETH2
Type 10/100Base-TX (10/100Mbit, twisted pair,
auto-MDI/MDIX or auto-crossover)
Connector RJ45
Cable type LAN cable of category 5 (CAT5) or better
Status indication Green LED: physical link present
Yellow LED: traffic on interface
Power over Ethernet
(PoE)
IEEE 802.3af compliant.
Port capability limited to one Class 1 (3.84 W)
and one Class 2 (6.49 W) power device.
