Omicron CMC 353 - 1 x 64 A High Current Mode (LL-LN)

Increasing the Output Power, Operating Modes
67
7.2.2 1x64A High Current Mode (LL-LN)
1 x 0 ... 64 A (±90 A
DC
), max. 35 V
peak
, 1 x 500 VA at 40 A
Since the current over the N socket is limited to 32 A
rms
(45 A
DC
), the third
phase is used to support the N socket. The currents 1 and 2 are connected
in parallel.
Observe the safety instructions given in Section 7.1 on page 65 when using
this operating mode.

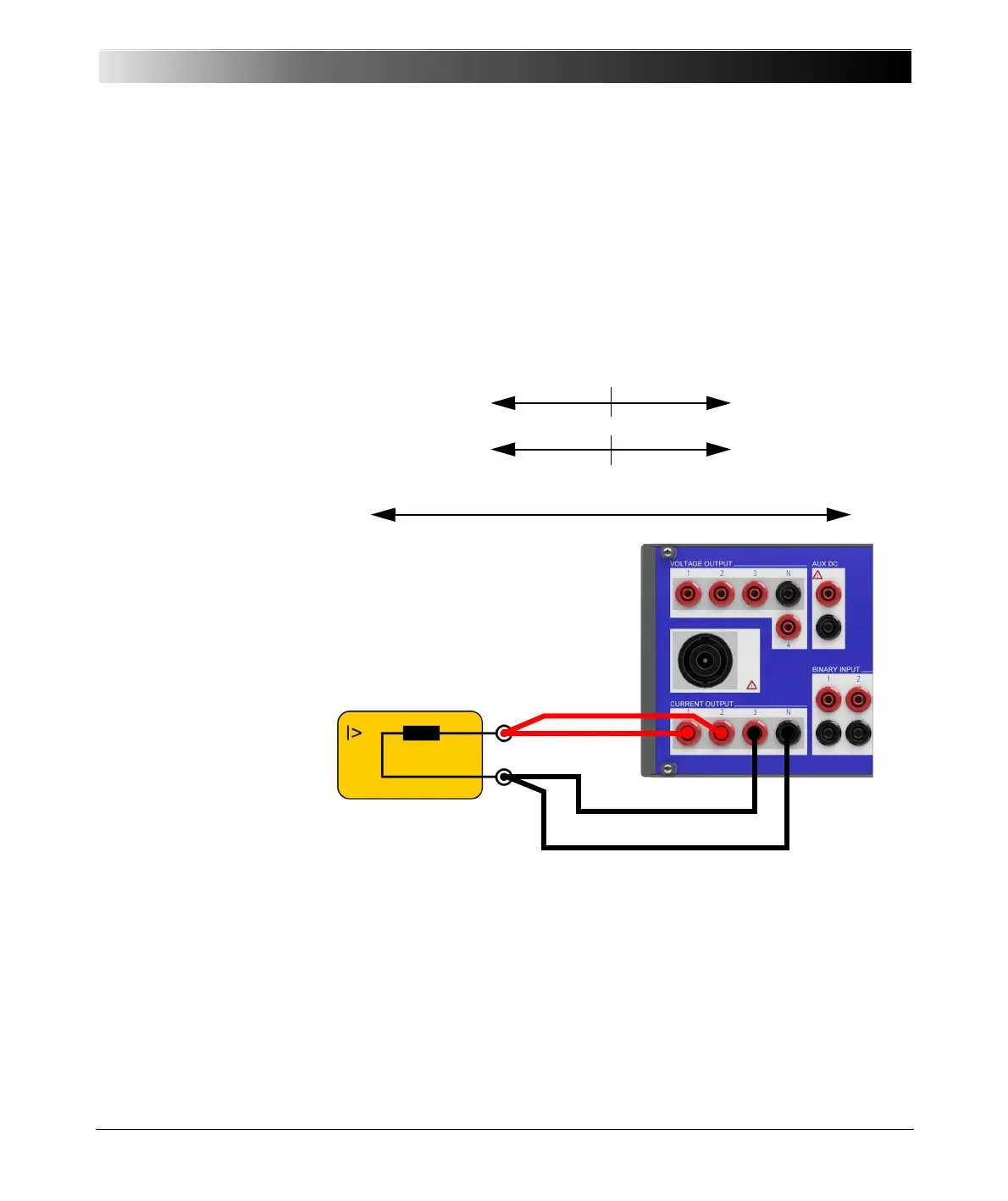

Figure 7-2:
Single-phase operation,
1 x 64 A high current mode
Refer to the output curves shown in the figures 6-1 through 6-5 in section
6.3.2, "Current Outputs" on page 43.
Load
1’
N’
I
1
I
3
I
2
I
N
I’ = 2 x I
