Omicron CMC 353 - Typical continuous output current and output power

CMC 353 Reference Manual
46

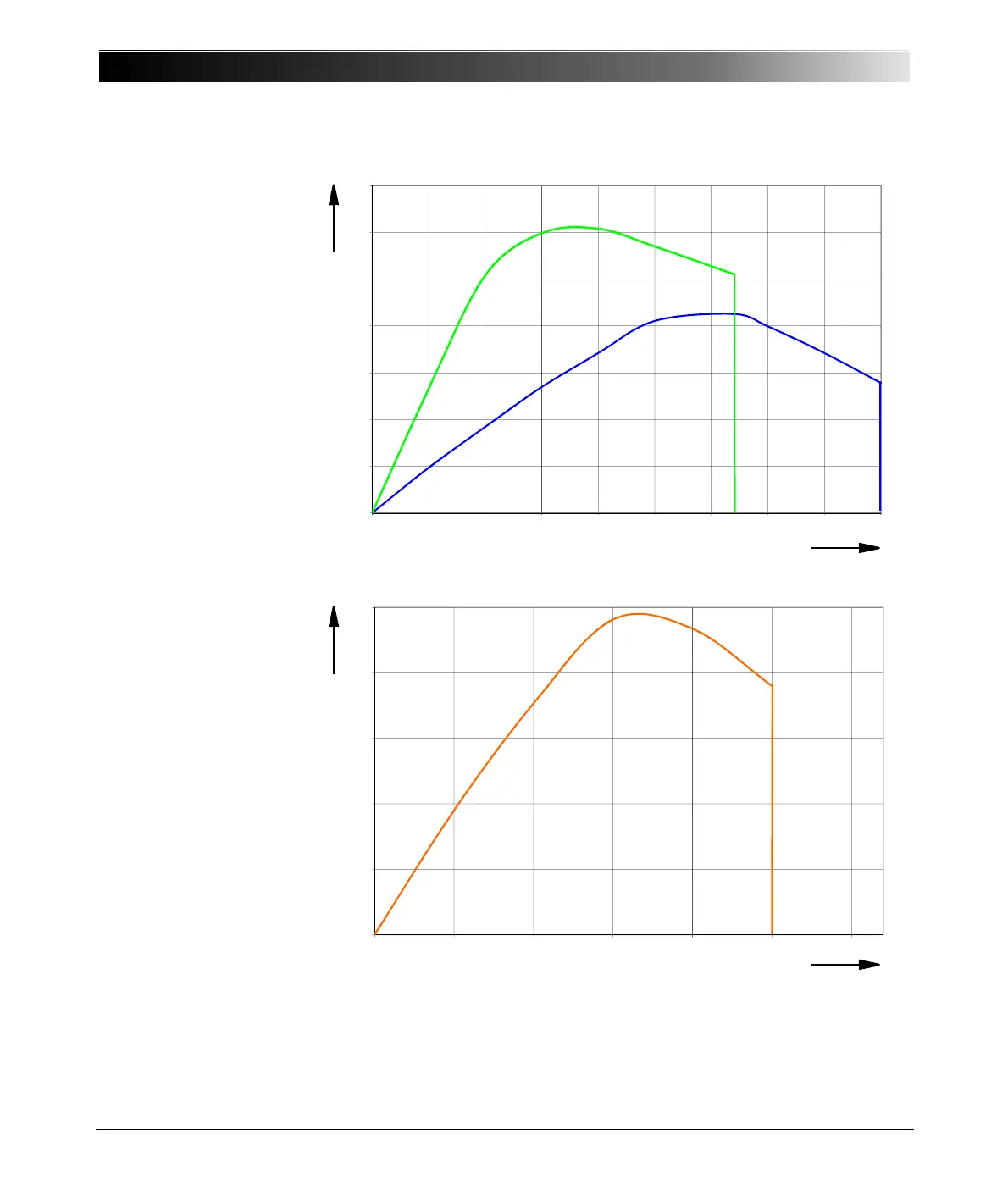

Figure 6-5:
Typical continuous output
current and output power
at 23 °C;
single-phase mode
Figure 6-6:
Typical continuous output
current and output power
at 23 °C;
three- and six-phase mode
The continuous operating range is given by the area below the curves in the
figure 6-5 and 6-6 above.
300
400
500
600
700
0
100
200
0 5 10 15 20 25 30 35 40 45
Current in A
Continuous output power in W
1x64A
1x32A
100
150
200
250
0
50
0 5 10 15 20 25 30
Current in A
Continuous output power in W
3x32A
