Omicron CMC 353 User Manual

Connections and Interfaces
27
5CONNECTIONS AND INTERFACES
5.1 Front Panel Connections

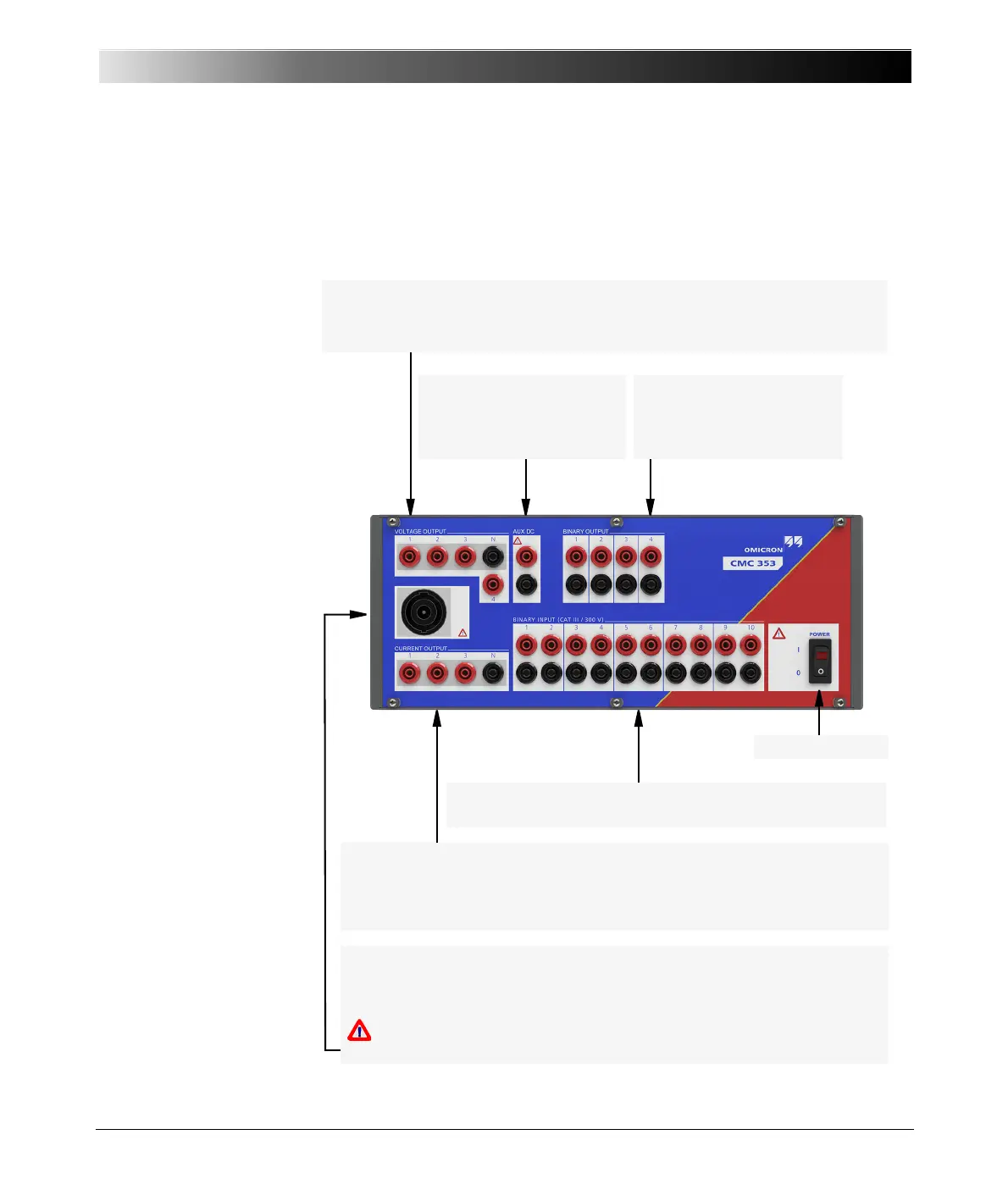

Figure 5-1:
Front view of the CMC 353
AUX DC
Output voltage in 3 ranges
from 0 - 264 V; used to
supply power to test objects.
VOLTAGE OUTPUT
4x300V
rms
output of the internal voltage amplifier; outputs 1 - 3 also applied to
the generator combination socket.
BINARY OUTPUT
Four potential-free relay
contacts.
BINARY INPUT
10 binary inputs in 5 galvanically separated groups.
Power Switch
CURRENT OUTPUT
3x32A
rms
output of the internal current amplifier; also applied to the generator
combination socket.
Generator combination socket
8-pole combination socket for VOLTAGE OUTPUT 1-3 and CURRENT OUTPUT
(up to 3 × 25 A max.).
Warning indication: Dangerous Voltage!
At least one of the output voltages exceeds 42 V.
