CMC 353 Reference Manual
82
9.5 Wiring Accessories
9.5.1 Standard Delivery Scope
The following three cs belong to the standard delivery scope of a CMC 353
test set. They can, however, also be ordered separately.

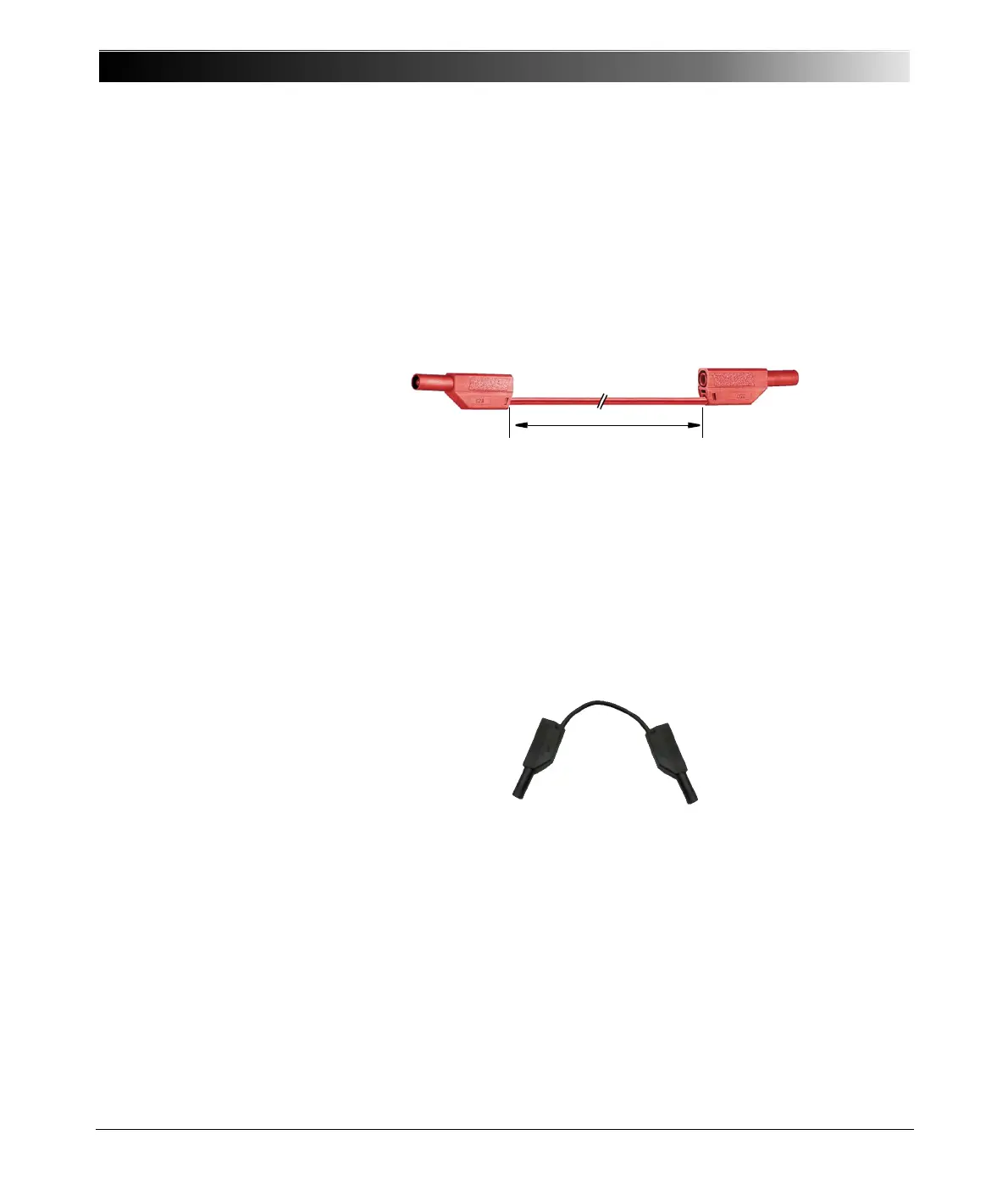

1. Flexible test lead
2 m (6 ft.) test lead to connect the CMC 353 output to other safety sockets
of, for example, amplifiers, test objects or to banana adapters in control
cabinets.
Specification: 1000 V/32 A
Amount supplied: 6 x red, 6 x black
2. Flexible jumper
Flexible jumper to connect current outputs in parallel (up to 32 A) or to
short-out the neutrals of binary inputs.
Specification: 1000 V/32 A
Amount supplied: 4 x black
