CMC 353 Reference Manual
14
3.3 Regular Test Leads for Safety Sockets
Use the regular test leads of 2.0 m/6 ft. length to connect the CMC 353
output to other safety sockets of, for example, amplifiers, test objects or to
banana adapters in control cabinets.
3.3.1 Terminal adapters
The optional CMC Wiring Accessory Package includes flexible terminal
adapters to connect the regular test leads to screw-clamp terminals.
The terminal adapters have blank ends. Therefore, turn off the voltage
before connecting these adapters. Always insert an adapter with its blank
end into the terminal strip first, and fasten it before connecting it to a test
lead.

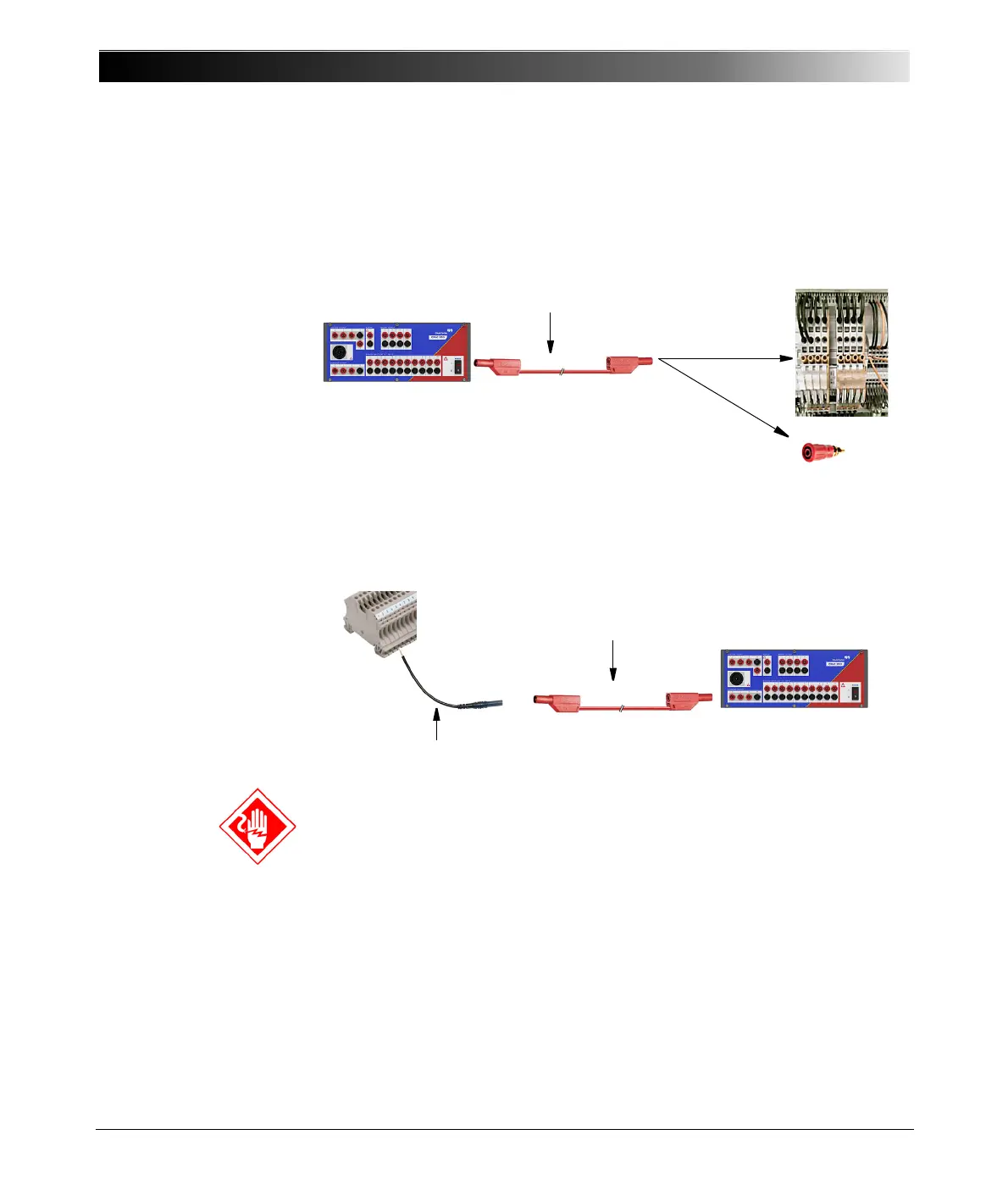

Regular test lead
or to safety socket,
e.g., at test object.
CMC 353 test set
or amplifier
to terminal strip
Regular test lead
Terminal adapter
