6.3.3.2 Power Diagram for Single-Phase Operation
Also refer to section 7.2.3, "Single-Phase Voltage" on page 68.

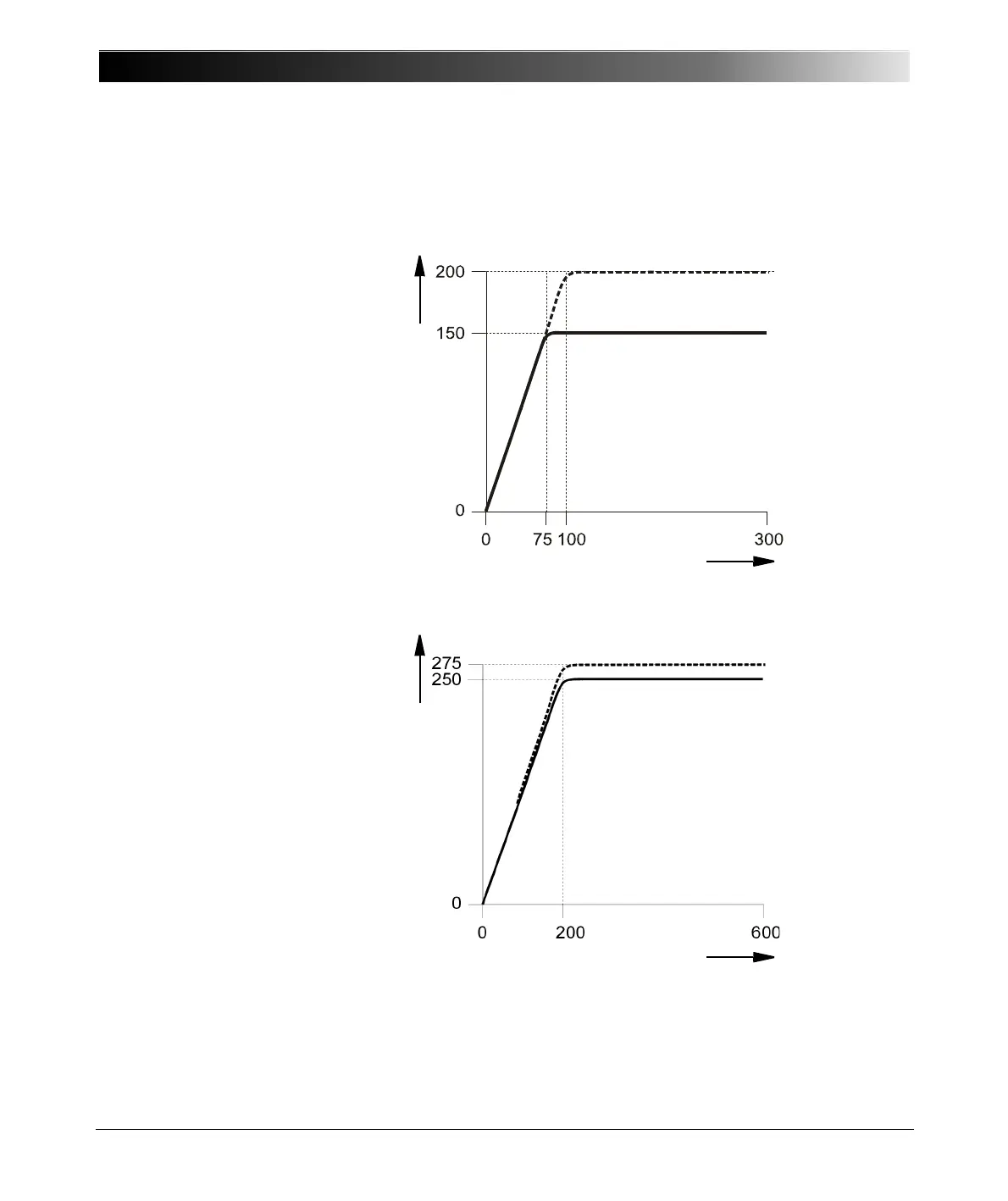

Figure 6-8:
Single-phase operation
L-N
Figure 6-9:
Single-phase operation
L-L
Output voltage L-N in V
Output power in VA
typical
guaranteed
Output voltage L-L in V
Output power in VA
typical
guaranteed
