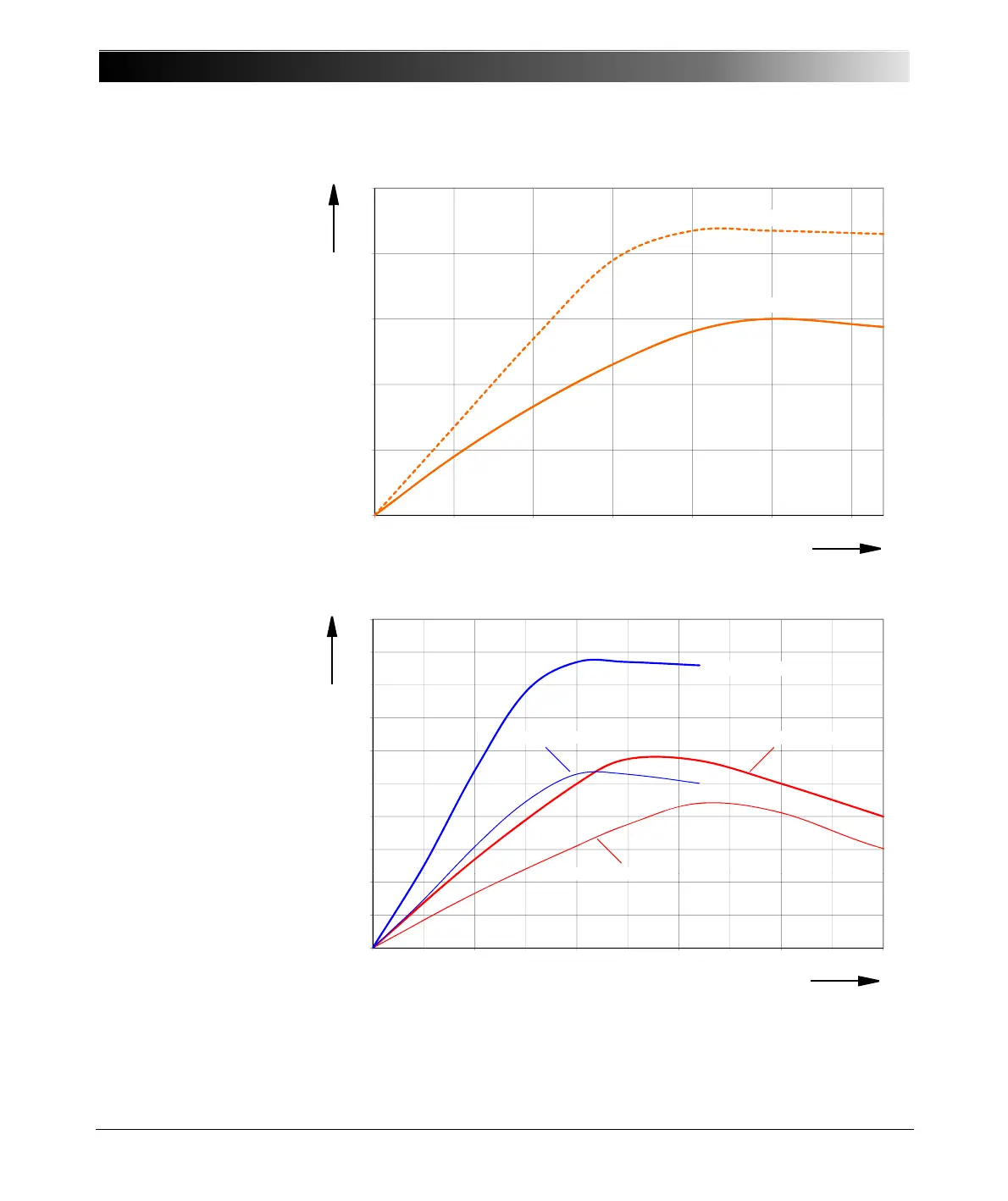

Figure 6-1:
Guaranteed output power
per phase of a group and
when groups A and B are
connected in parallel
(active power values in W
are guaranteed; apparent
power values in VA are
typical values)
Figure 6-2:
Guaranteed single phase
output power curves
(active power values in W
are guaranteed; apparent
power values in VA are
typical values)
For additional information refer to section 7.2, "Single-Phase Operation of
the CMC 353" on page 66.
200
300
400
500
0
100
0 5 10 15 20 25 30
Output current in A
rms
Output power per phase in VA / W
S 3-phase per phase in [VA]
P 3-phase per phase in [W]
300
400
500
600
700
800
900
1000
0
100
200
0 5 10 15 20 25 30 35 40 45 50
Output power in VA / W
Output current in A
rms
S @ 64 A (LL-LN) [VA]
P @ 64 A (LL-LN) [W]
P @ 32 A (L-L) [W]
S @ 32 A (L-L) [VA]
