4.4 Examples of network connection options
Due to the multiplicity of process ports, control ports, and usage options for the individual ports, there
are a huge number of possible connections. Each of these options may be suited in certain
applications and several options may similarly serve an application.
In the following, a number of examples with a short explanation of the typical use are provided. For
further reference, the connection options are labelled CO01, CO02, and so on.
Used symbols
The following figure shows the meaning of symbols used to exemplify the network connection options.

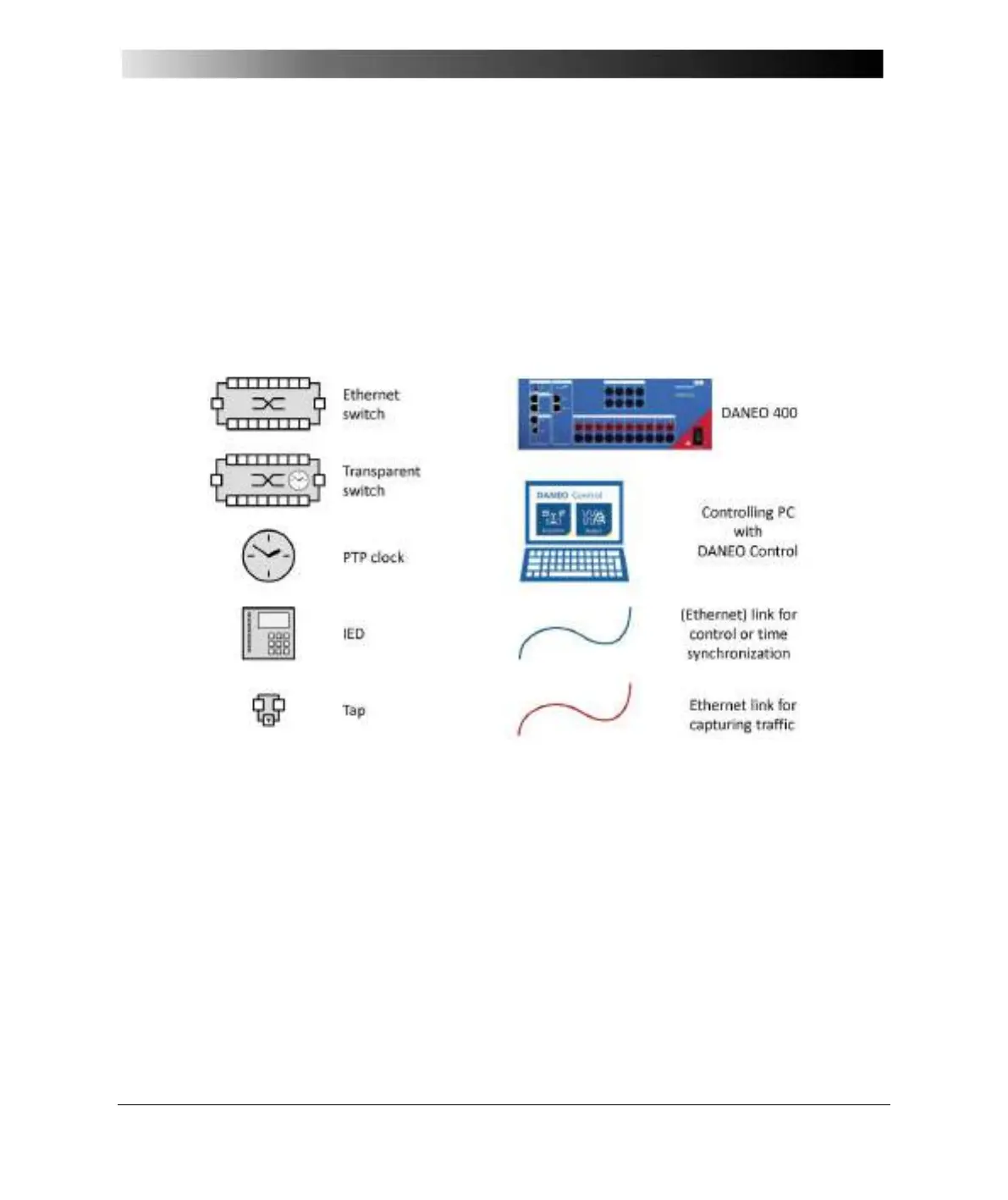

Figure 2: Symbols used to exemplify different network connection options
