The two general device status LEDs (S1, S2) are indicating the following different device states:
Normal mode (idle or running, ECAT LEDs indicate
RUN state)
Error (runtime error until stop)
The two EtherCAT communication status LEDs (Run, Error) are defined by the EtherCAT standard.
The Run LED indicates the current state of the EtherCAT state machine (“Off” is idle state; “Blinking” is
pre-operation state, “On” is operation state). The Error LED indicates different error codes defined by
the standard (“Off” is no error).
7.2 Rear panel
On the rear panel you find the power socket and the power fuse.
7.3 Flexible housing
The housing of DANEO 400 is very flexible. It can be configured for different working positions by
rotating and moving the device handle.
For placing DANEO 400 on the floor, the handle can be used as floor stand as shown in the figure
below. If the handle is not required (for example to stack multiple devices) you can easily stash it to
the rear side of DANEO 400.

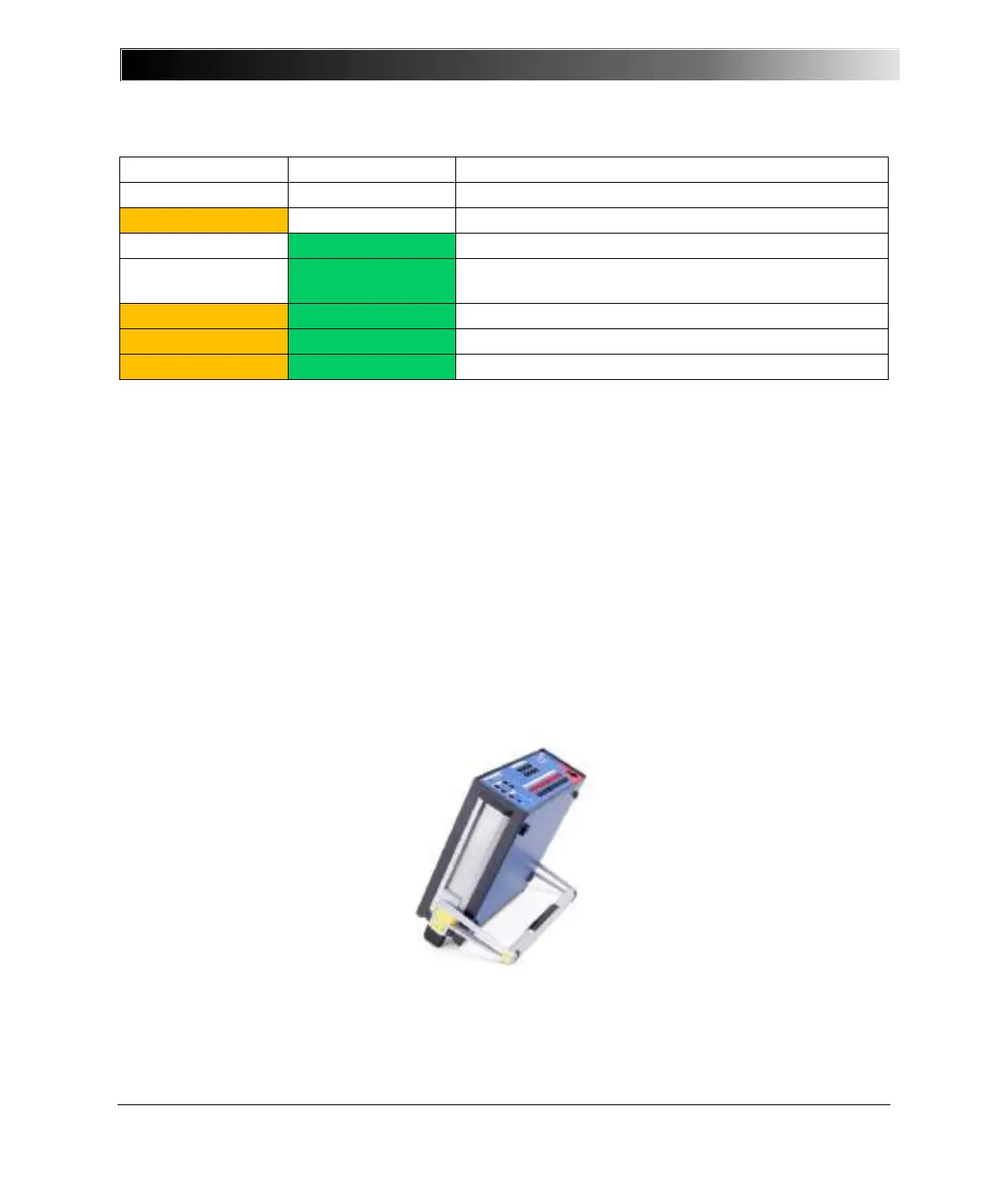

Figure 28: DANEO 400 flexible housing
