OMICRON 35
MPD 800 measurement system

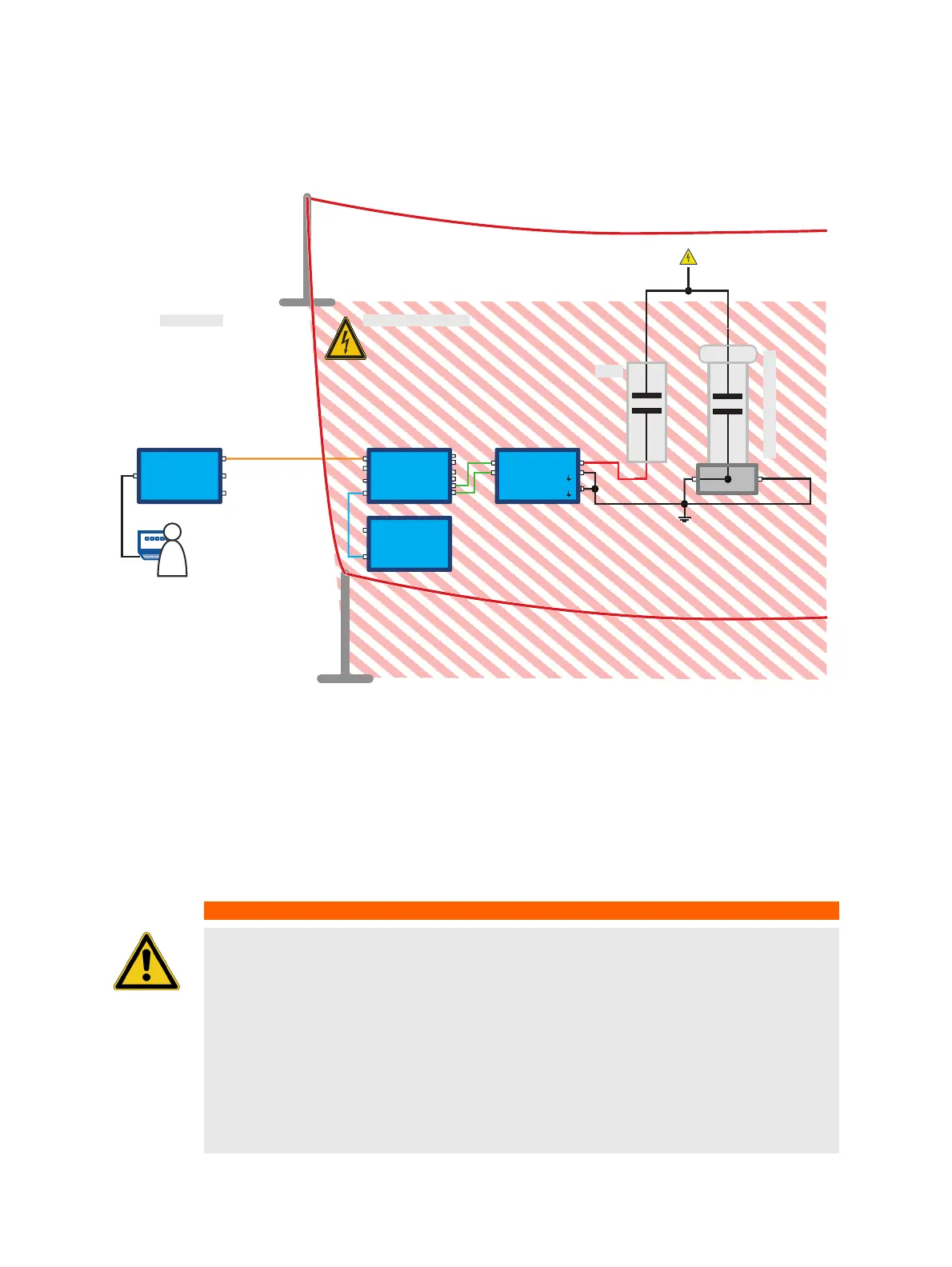

Further connection application of the MPD 800 system
Figure 2-19: Further connection application of the MPD 800 system
2.3.1 Specific safety instructions
Prior to setting up and operating the MPD 800 system to carry out a PD test, it is essential that you have
read and understood the chapter 1 "Safety instructions" on page 6.
Before entering the high-voltage area, observe the following instructions:
WARNING
Death or severe injury caused by high voltage or current possible
Working in the area of high-voltage systems is very dangerous!
► Switch off the high voltage.
► Always obey the five safety rules (see 1.2.2 "Safety rules" on page 6) and follow the
detailed safety instructions.
► Make sure to observe dangerous areas.
► Always obey the internal safety instructions for working in areas with high voltage to
avoid injury.
► Before switching on the high voltage, leave the high-voltage area.
MCU2
FO1
FO2
FO3
FO1
FO2
POWER
OUT
AUX
AC
PD
AC
PD
MPD 800
PD
AC
GND
INPUT
CPL1
OUTPUT
INPUT
RBP1
TRIGGER
GND
Work area High-voltage area
Coupling capacitor
DUT
