Performing System Verification System Verification
10-2 80-JB566-1 Rev. G
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

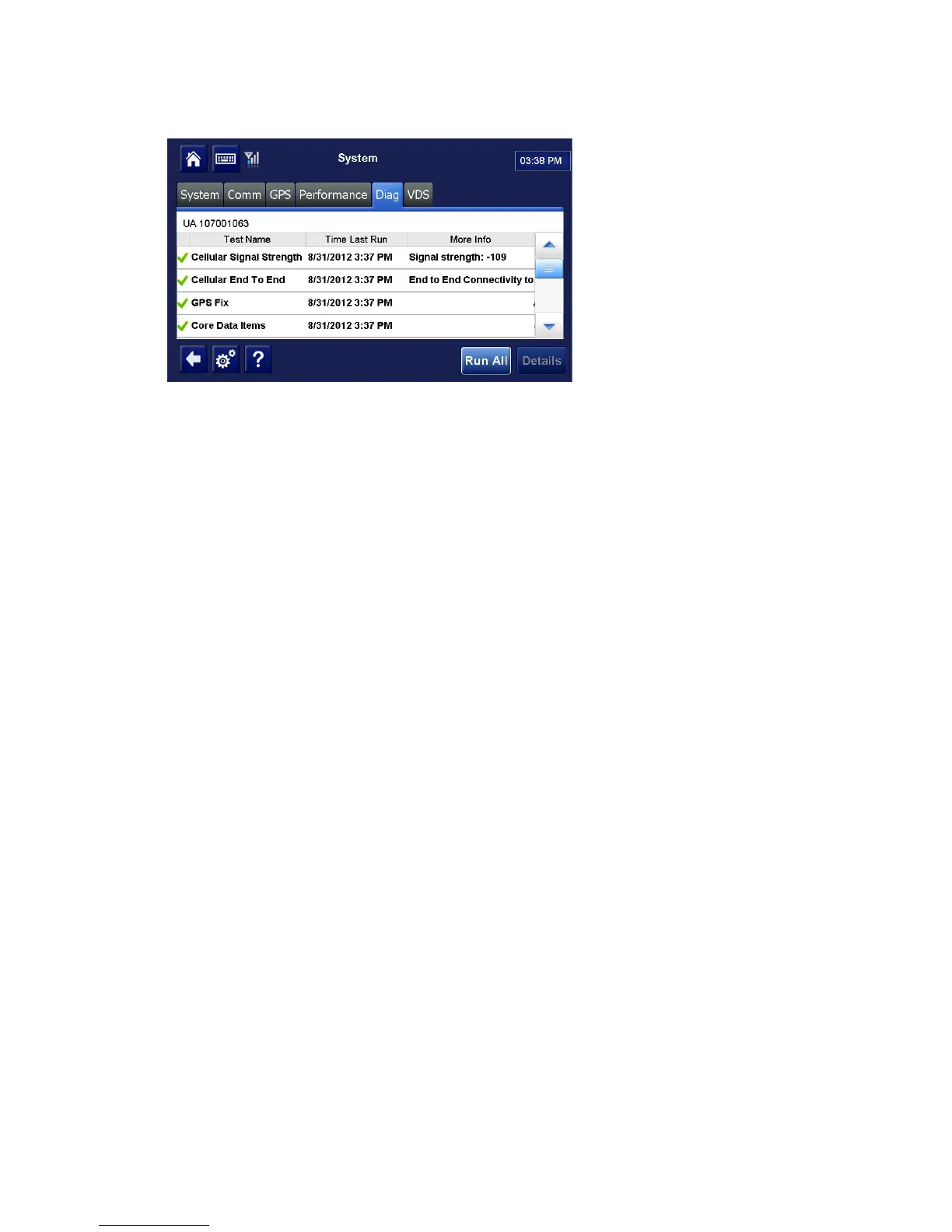

If the test passes, a (green ) is shown. If the test fails, a (red X) is shown.
Cellular Signal Strength, Cellular End to End, GPS, and Core Data Items should have a green
checkmark.
Item Description
Cellular Signal Strength Will show a green checkmark when in good cellular network
coverage. See Chapter 15: Cellular Signal Strength
Problems if red X.
Cellular End To End Will show a green checkmark if the unit is successfully
transmitting with Omnitracs and received an
acknowledgement back. See Chapter 14: Cellular End to
End Problems if red X.
GPS fix test Will show a green checkmark if GPS network is detected
and it is getting a 3D fix. See Chapter 17: GPS Fix Problem
if red X.
Core Data Items Will show a green checkmark if Speed, RPM, Distance LTD,
and Fuel LTD is being detected. See Chapter 21: Core Data
Problem if red X.
