Omnitracs MCP50 - Display Interface Unit 50 (DIU50) Cable Connector Pin Callouts

Display Interface Unit 50 (DIU50) Cable Connector Pin Callouts Wiring Diagrams and Charts
A-6 80-JB566-1 Rev. G
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

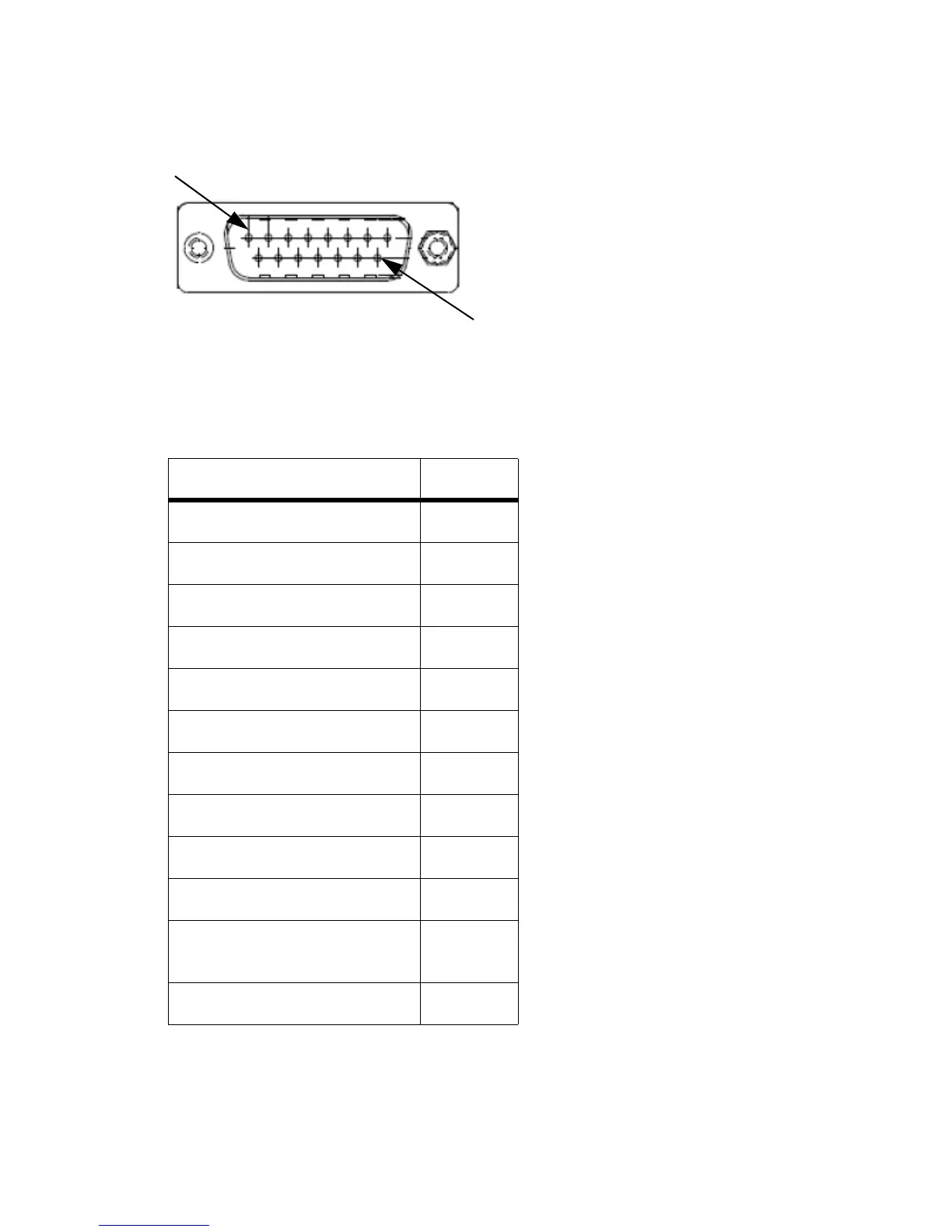

Display Interface Unit 50 (DIU50) Cable Connector Pin Callouts
Note: the DIU50 has no user-serviceable parts.
SIGNAL PIN
DIU_PWR 8
DIU_GND 7, 14
DIU_TX 10
DIU_RX 4
DIU_RTS 11
DIU_CTS 6
DIU_DTR 3
DIU_DCD 5
DIU_DSR 15
DIU_RI 13
USB_DP
USB_DM
1, 9
N/C 2
Pin 15
Pin 1
