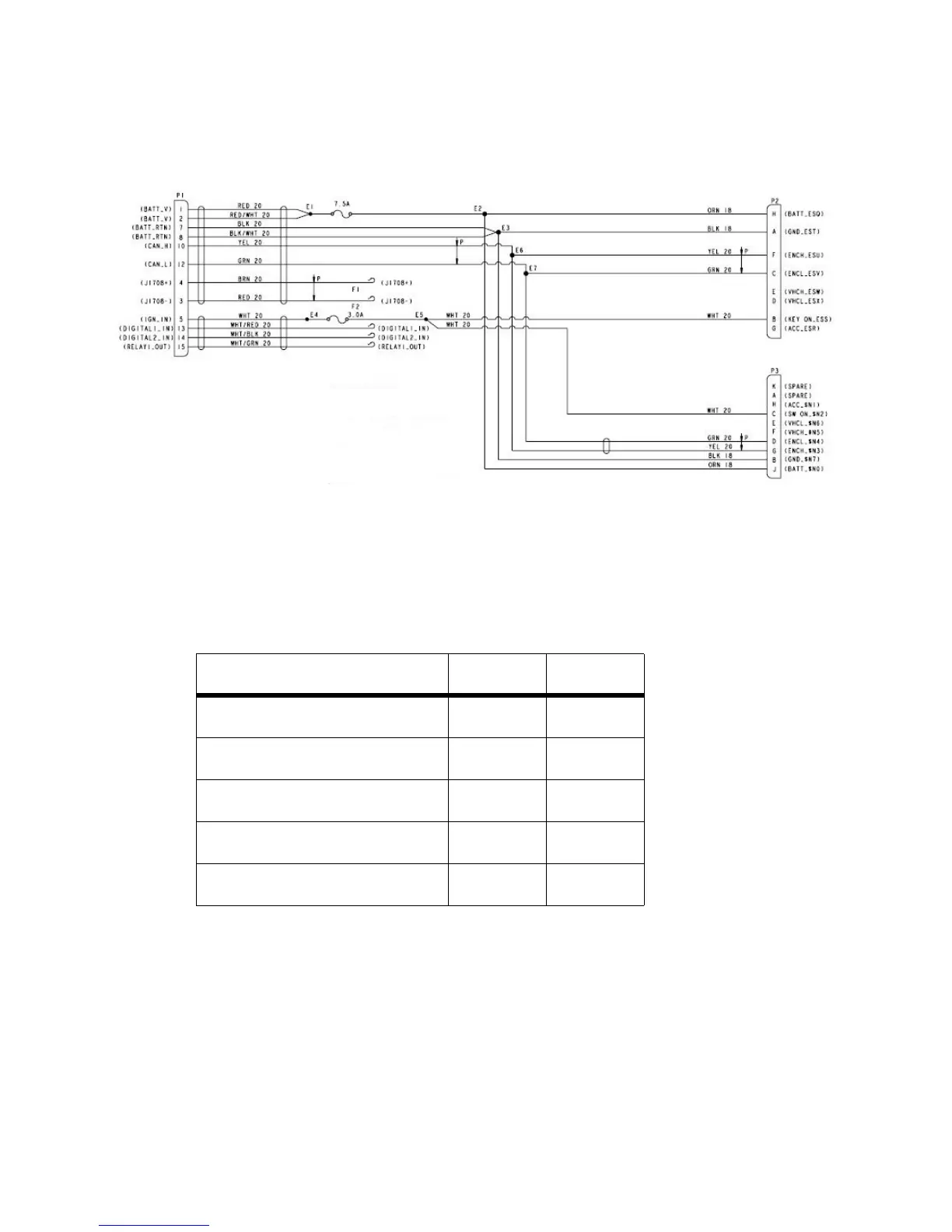

Wiring Diagrams and Charts Hino

Hino

P2: Blue US-built vehicle

P3: White: Japanese-built vehicle

SIGNAL P2 P3

Battery H J

Chassis Ground (batt return) A B

CAN high F G

CAN low C D

Ignition B C
