80-JB566-1 Rev. G A-3
MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

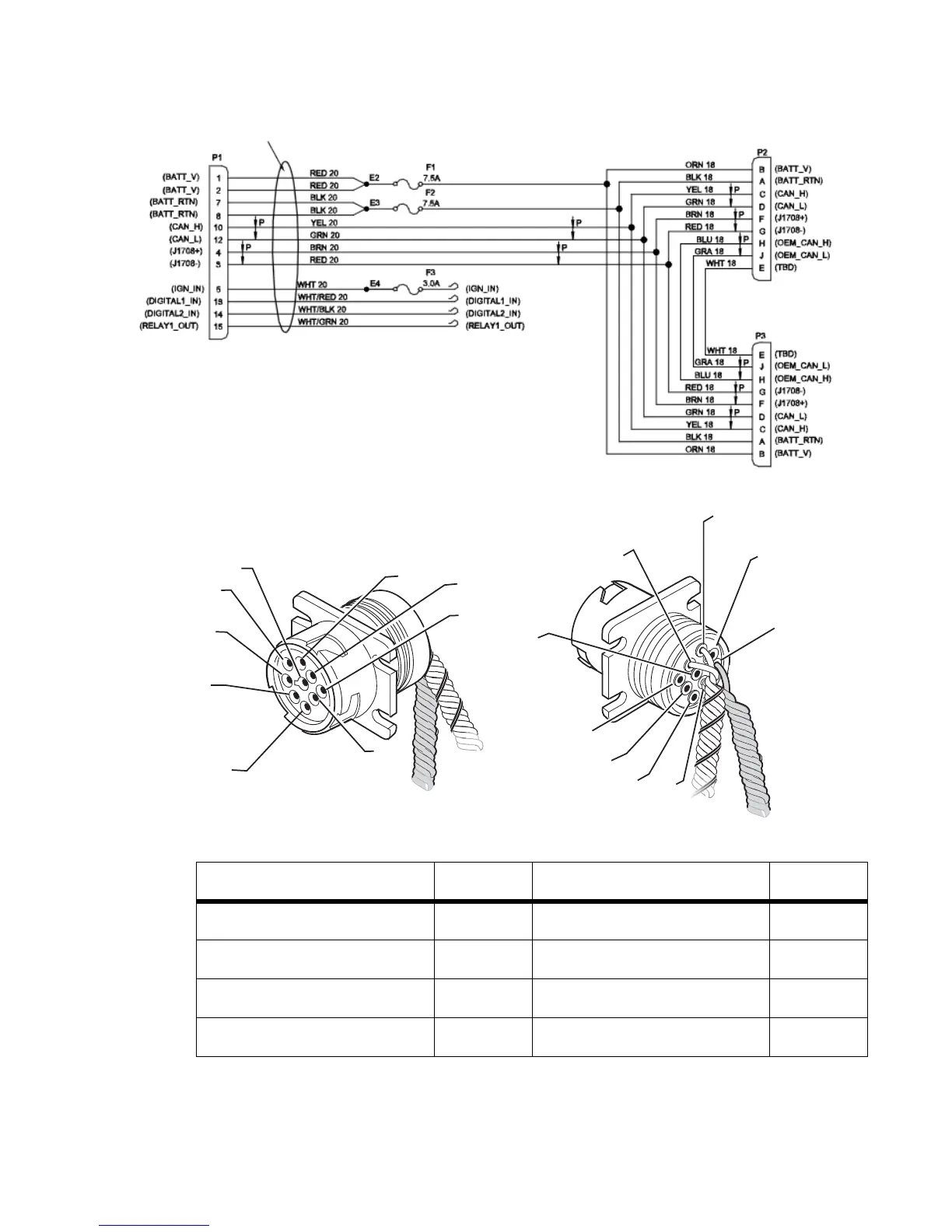

Wiring Diagrams and Charts 9-pin Power/IO Cable and Paccar Adapter Cable
9-pin Power/IO Cable and Paccar Adapter Cable
SIGNAL PIN SIGNAL PIN
BATTERY GROUND A J1708/J1587 DATA LINK+ F
+12VDC B J1708/J1587 DATA LINK- G
J1939 DATA LINK+ C OEM_CAN_H H
J1939 DATA LINK- D OEM_CAN_L J
J
D
E
C
F
B
A
G
H
08AAA_051
A
C
D
B
F
E
J
G
H
