3 Configuration Software
CJ-series PROFIBUS Master Unit Operation Manual for NJ-series CPU Unit (W509)
3-3 Generic Slave Device DTM
3
3-3-1 Configuration User Interface
In the Group tab the user can define to which group the slave device will belong. This group defini-
tion is used to define multi-cast groups of slave device to which a Global-Control command can be
transmitted. The window is shown below.

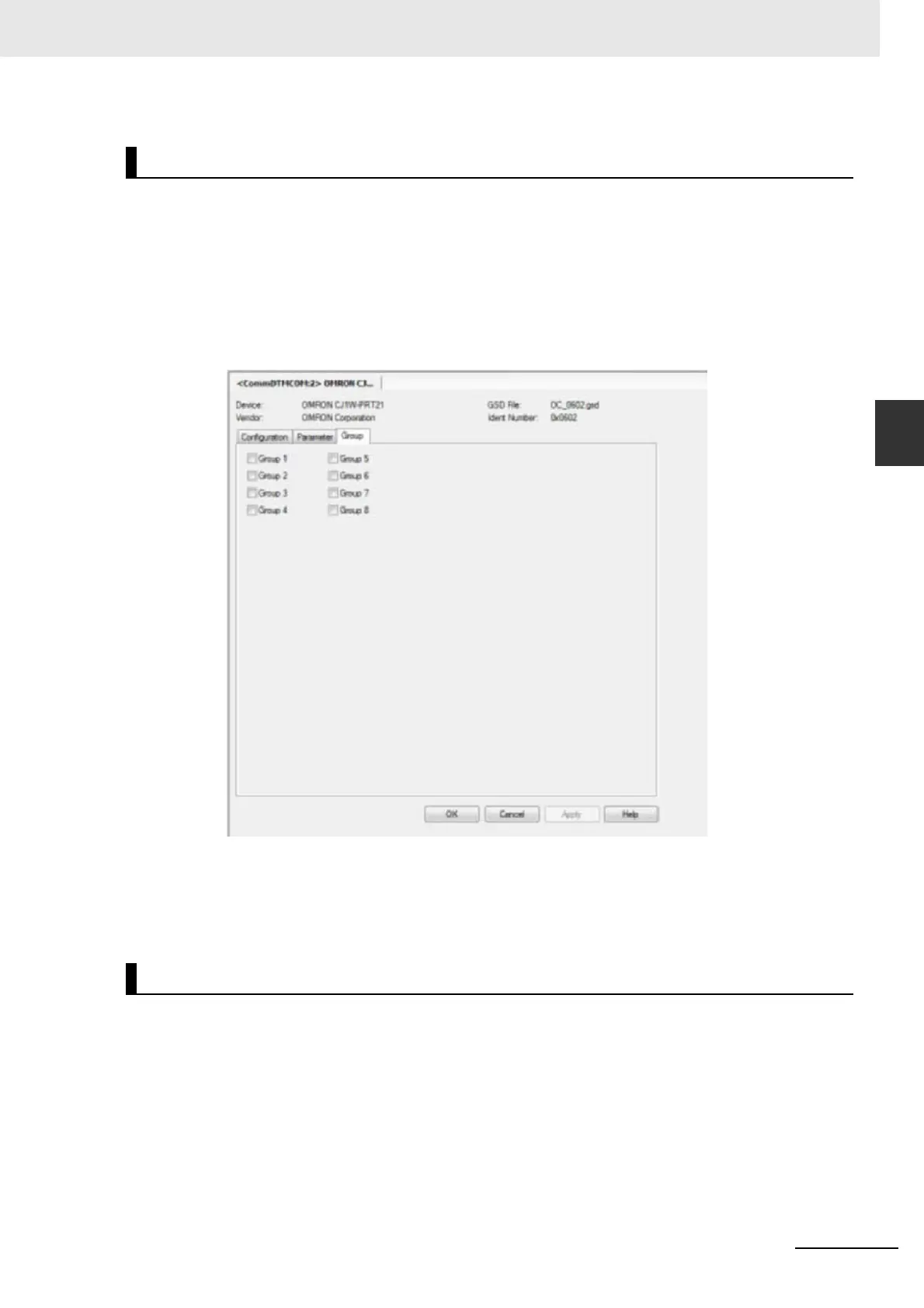

Selecting the Groups
The user can check the check boxes for each group the slave device will belong to. The group set-
ting is transferred to the slave device as part of the parameter message.
The three tabs discussed above, allow for making all the standard PROFIBUS DP settings for a
slave device. For slave devices supporting PROFIBUS DP-V1, two additional tabs will show up.
These tabs will appear, if the GSD file parameter GSD_Revision is set to 3 or higher. The additional
tabs are discussed below.
The Extensions tab contains a number of settings, which define additional behavior of the CJ1W-
PRM21 PROFIBUS Master Unit with respect to a particular PROFIBUS DP-V1 slave device.
Although this specific behavior is defined in the PROFIBUS DP extensions standard (PROFIBUS
DP-V1) it does not necessarily require PROFIBUS DP-V1 capabilities from the PROFIBUS Master
Units. The Extension tab is shown below.
Group Tab
Extensions Tab
