5 Operation
5-6
CJ-series PROFIBUS Master Unit Operation Manual for NJ-series CPU Unit (W509)

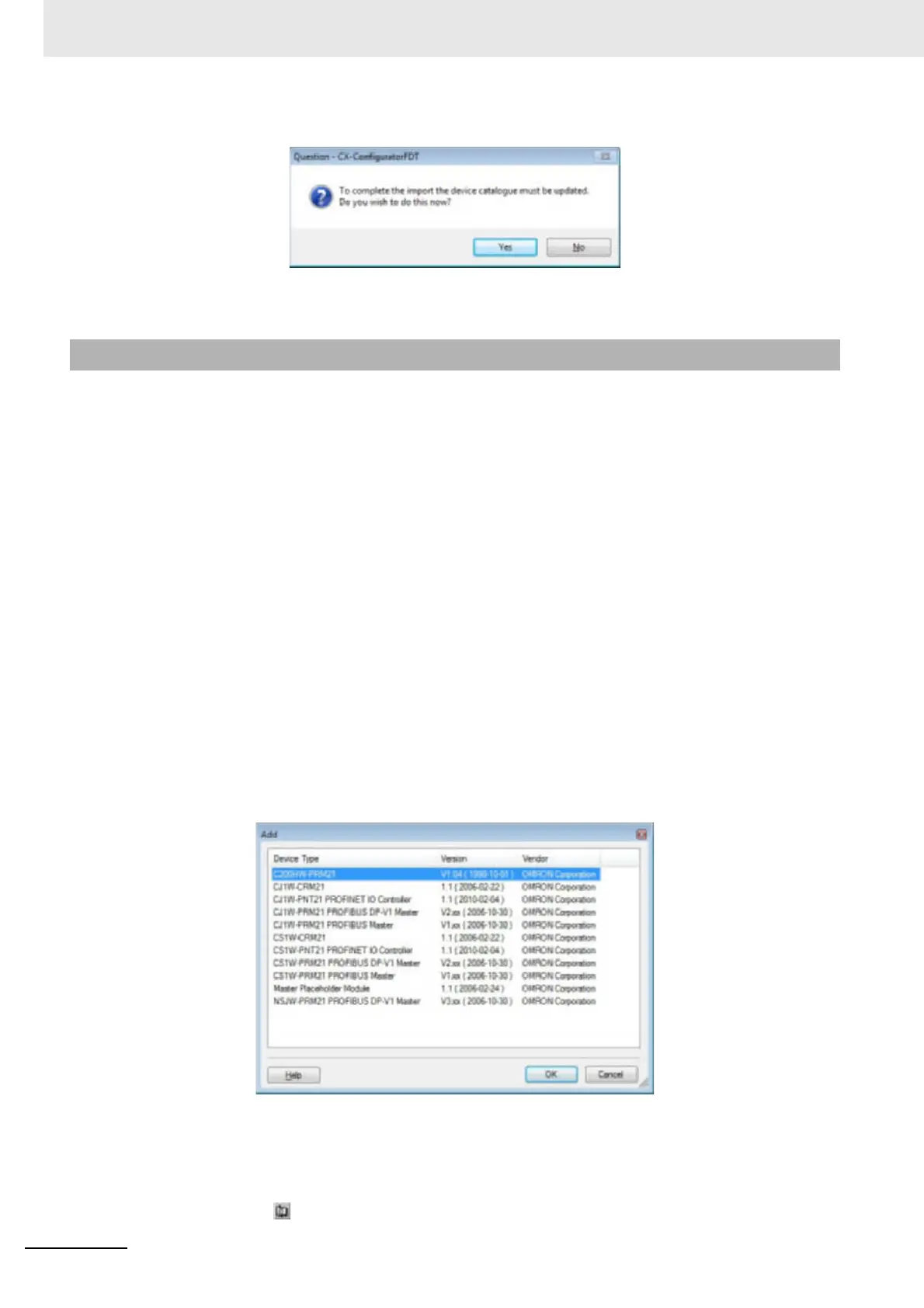

Note Updating the Device Catalogue may take several minutes, depending on the number of installed GSD files.
If the Device Catalogue is up to date, it can be used to setup the network. Setting up a network in CX-
ConfiguratorFDT starts with adding single device DTMs to the Network view. First the CJ1W-PRM21
Master DTM must be added to the main branch of the project Network. To do so, one of three proce-
dures as outlined below must be used to add the DTM.
Using the Context Menu
1
Select the top of the network to which the DTM must be added, i.e. select MyNetwork in the
Network view.
2
Right click the mouse and a context menu will be displayed.
3
From the menu select Add...
4
A simplified Device Catalogue is displayed. The list only contains the devices which can be
inserted at the selected network location (see figure below, only Master devices are listed).
5
From the displayed list, select the device DTM to be added and select the OK button. The
Device DTM will be added to the network.
Using Drag & Drop
1
Open the Device Catalogue: Either select the View - Device Catalogue menu option, or press
the button in the Tool Bar.
5-2-1 Adding Devices to the Network
To Next Page
