5-23
5 Operation
CJ-series PROFIBUS Master Unit Operation Manual for NJ-series CPU Unit (W509)
5-4 Configuring the Master
5
5-4-5 Downloading the Configuration

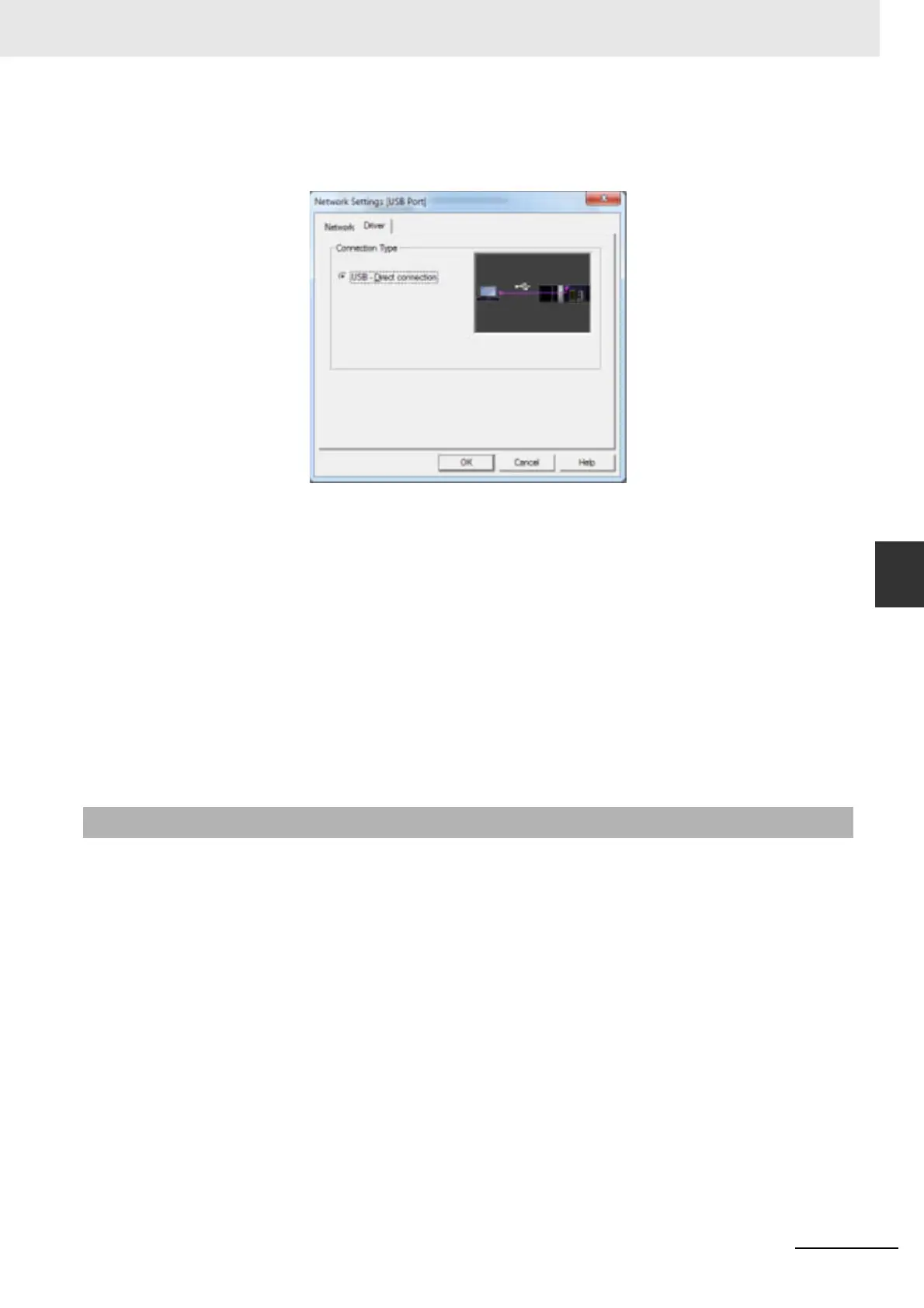

2 Select the Settings button next to the Network Type selected, to display the Network set-
tings window, and select the Driver tab (USB is shown as the example below).
3 Make the necessary selections to facilitate communication between the PC and the CPU to
which the PROFIBUS Master Unit is attached, and press the OK button.
Testing CX-Server setup
After making the settings, press the OK button to close the CX-Server interface. In order to verify
that the communication has been setup correctly, press the Test button in the Device Setup tab of
the DTM Configuration User Interface. This will initiate a command to read the Unit’s profile, i.e. the
name of the Unit and the firmware version.
If the communication has been setup correctly, the response of the command will yield the required
information which will be displayed in the Device Information box in the Description and Firmware
Version fields. If the communication is not setup correctly, the two fields will contain three dashes,
i.e. “---”, and an Error message will be displayed in the Error Log view of CX-ConfiguratorFDT. The
communication settings must be changed to the correct value first. Refer to A-5 CX-Configura-
torFDT Warning and Error Messages for more information on communication and download errors.
Downloading Parameters
In order to download the parameter sets to the CJ1W-PRM21 PROFIBUS Master Unit, the following
sequence must be performed.
1
Select the CJ1W-PRM21 Master DTM in the Network view and right-click the mouse to display
the context menu.
2
Select Download Parameters from the menu, to initiate a download. A communication channel
through CX-Server will be opened automatically.
3
When communication is achieved with the CPU, a warning window will be displayed, notifying
the user that the CPU will be switched to PROGRAM mode. If the user confirms this, the down-
load will continue.
5-4-5 Downloading the Configuration
