10. Appendix 2 Setting the Tag Data Links Using the Software
74
16

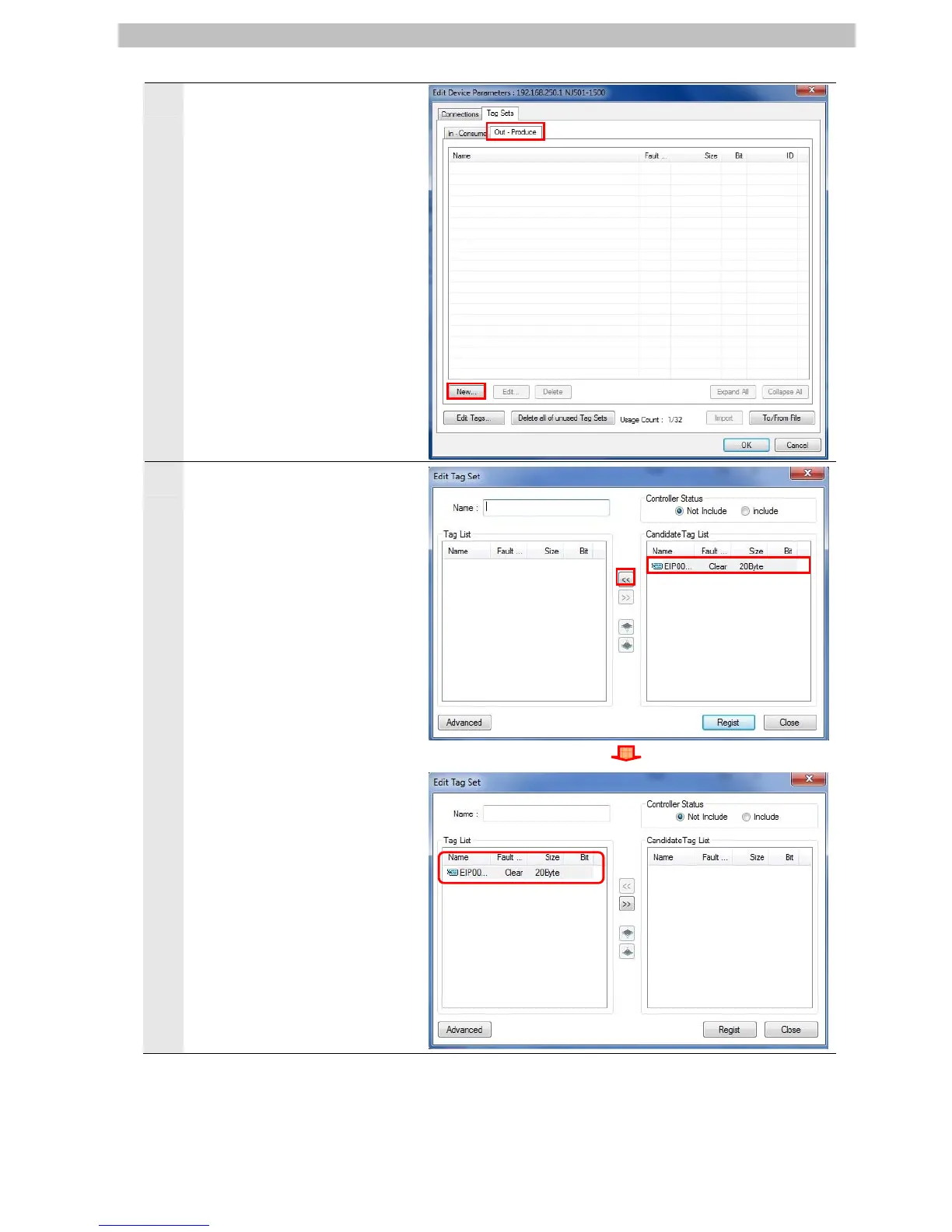

Select the Out-Produce Tab.
Click the New Button.
17
The Edit Tag Set Dialog Box is
displayed.
Move the variables from the
Candidate Tag List to the Tag
List in the same way as steps 11
and 12.
*Make sure that the data in the
Tag List is arranged in order of
offsets shown in 9.2.
Relationship between
Destination Device and Global
Variables.
