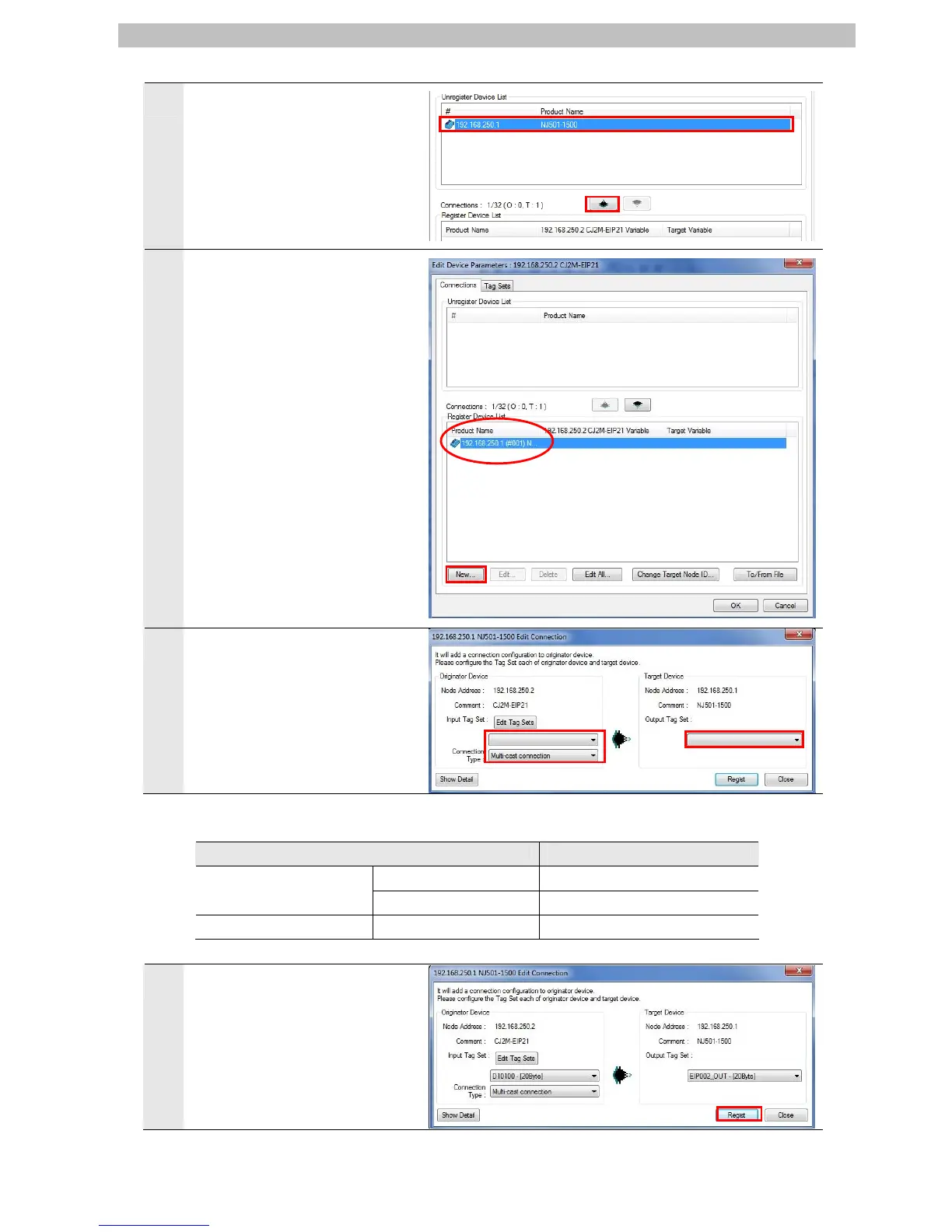

Omron CJ2 Series User Manual

10. Appendix 2 Setting the Tag Data Links Using the Software
78
9
Select 192.168.250.1 in the
Unregister Device List Field.
Click the Down Arrow that is
shown in the dialog box.
10
192.168.250.1 is registered in
the Register Device List.
Select 192.168.250.1 and click
the New Button.
11
The Edit Connection Dialog Box
is displayed. Select the following
values from the pull-down lists
for the settings in the Originator
Device Field and the Target
Device Field.
■Settings of connection
Connection allocation Setting value
Input Tag Set D10100 - [20Byte] Originator device
Connection Type Multi-cast connection
Target Device Output Tag Set EIP002_OUT - [20Byte]
12
Confirm that the settings are
correct and click the Regist
Button.

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
