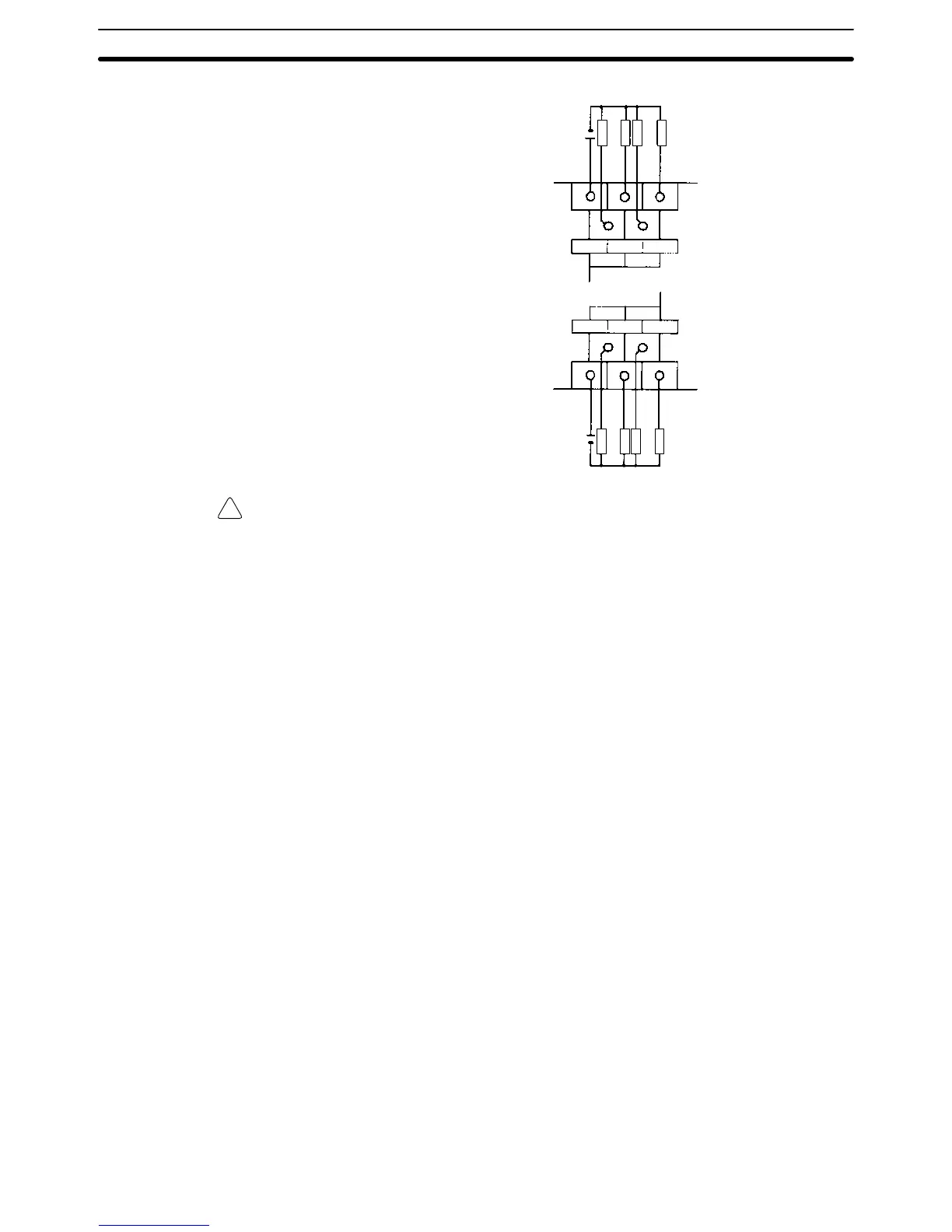

CPM1A-8ET1

Load

COM 01

0200

COM 05

0604

Load

24 VDC

+10%

–15%

24 VDC

+10%

–15%

Caution Double-check the polarity of the power supply for the load before turning it on.

Output Wiring Precautions Observe the following precautions to protect the PC’s internal components.

Output Short Protection

The output or internal circuitry might be damaged when the load connected to an

output is short-circuited, so it is recommended to install a protective fuse (0.5 to

1.0 A) in each output circuit.

Polarity of Power Supply for the Load

Double-check the polarity of the DC power supply for the load before wiring the

transistor output. If the polarity of the power supply is reversely connected, the

load will malfunction and internal components may be damaged.
