Omron CS1W-ETN01 User Manual

Appendix ANetwork Installation
228
Optical Ethernet Systems
Some manufacturers provide optical fiber components for Ethernet networks to provide high resistance to noise.
The following illustrations show some simple examples of optical installations. See the manufacturer for specifics.
Use as Noise Countermeasure

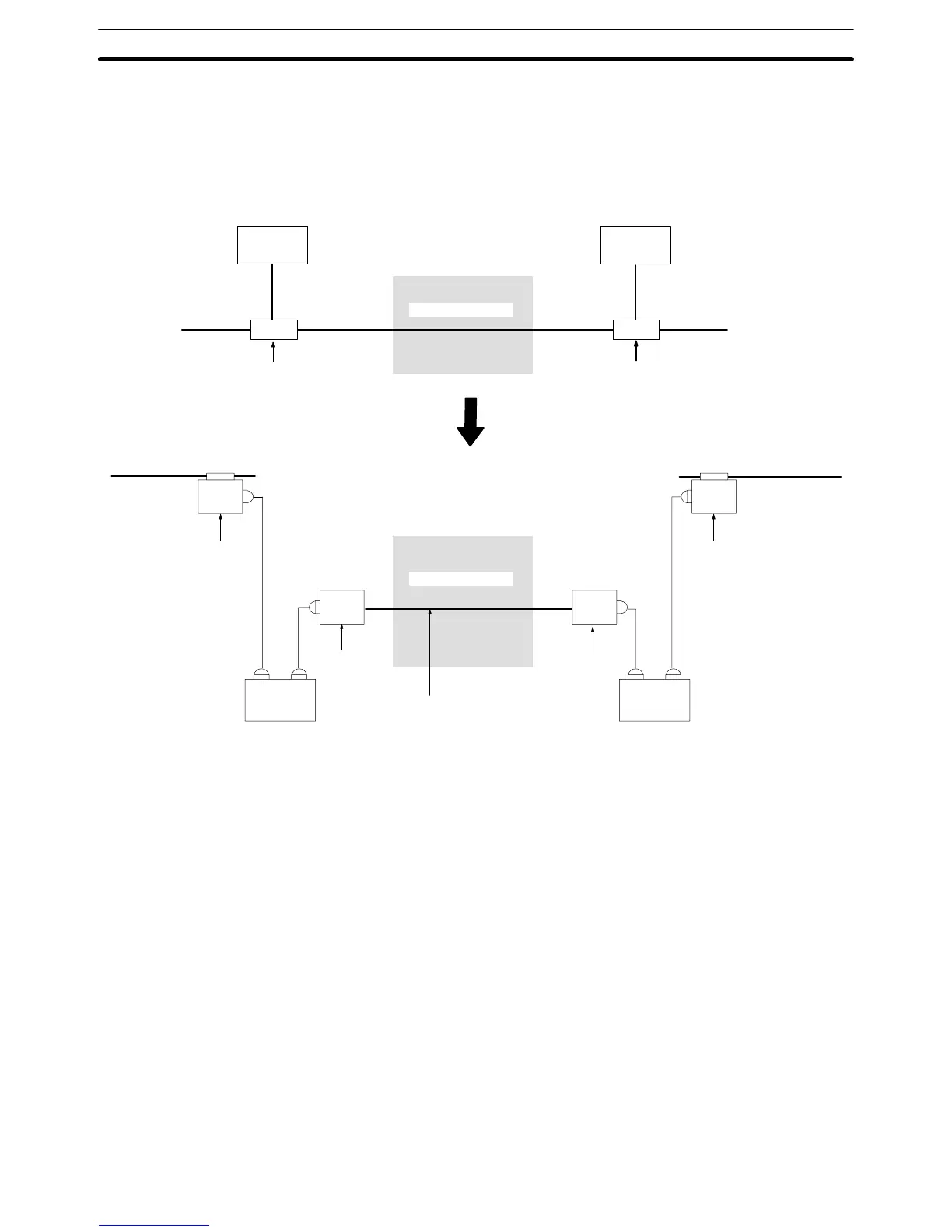

The following illustration shows how optical components can be used to convert to optical fiber cable through
areas highly prone to noise.
Node Node
Transceiver Transceiver
Coaxial cable
Noise-prone area
Segment 1
Coaxial cable
Transceiver
Transceiver cable
Repeater
Optical
transceiver
Repeater
Segment 2
Coaxial cable
Transceiver
Transceiver cable
Noise-prone area
Optical
transceiver
Optical fiber cable
