115
Procedures Section 3-2
The values of variables used in the ST program are displayed in the right side
of the window (called the ST variable monitor window).
At this point, it is possible to monitor variable values, change PVs, force-set or
force-reset bits, and copy/paste variables in the Watch Window. (These oper-
ations are described below.)
Monitoring Variables
Variable values are displayed in blue in the ST variable monitor window.
Changing PVs

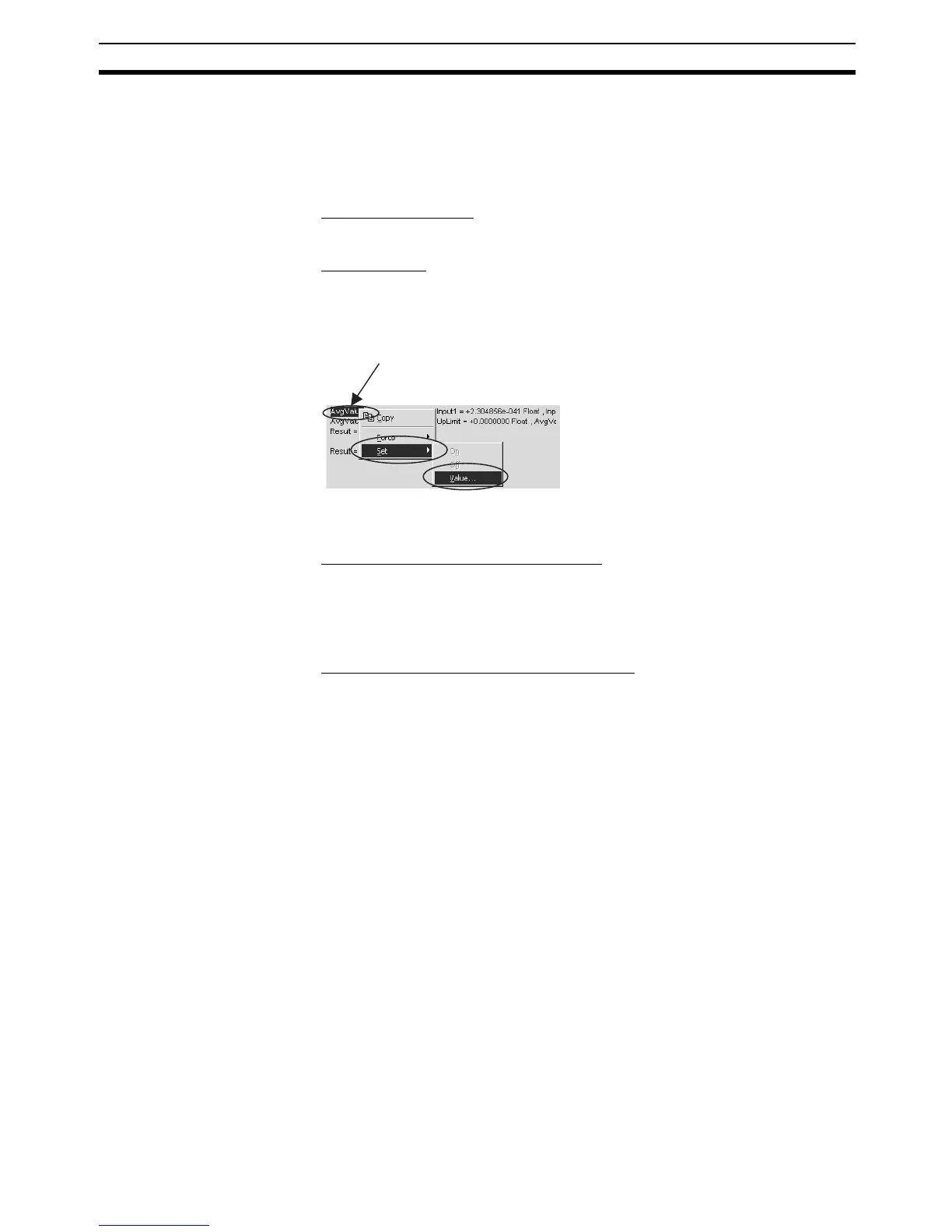

To change a PV, select the desired variable in the ST variable monitor window
(displayed in reverse video when selected), right-click, and select Set - Value
from the pop-up menu.
The Set New Value Dialog Box will be displayed. Input the new value in the
Value field.
Force-setting and Force-resetting Bits
To force-set, force-reset, or clear the forced status, select the desired variable
in the ST variable monitor window (displayed in reverse video when selected),
right-click, and select Force - On, Force - Off, Force - Cancel, or Force -
Cancel All Forces from the pop-up menu.
Copying and Pasting in the Watch Window
1,2,3... 1. To copy a variable to the Watch Window, select the desired variable in the
ST variable monitor window (displayed in reverse video when selected),
right-click, and select Copy from the pop-up menu.
2. Right-click in the Watch Window and select Paste from the pop-up menu.
Select the variable.
