D6F-series MEMS Flaw Sensor User’s Manual (A286) 12
6.2.4 Bamboo type
A bamboo type is used in a state where the urethane tube or others is inserted. Inserting is
very easy. It can be done by hand (no tools necessary). In addition, there is the benefit that
the variation due to human error is less likely to occur. Both the D6F-□A1 series and D6F-P
series are available in bamboo type. In the case of the D6F-□A1 series, the inner diameter of
the pipe is φ4mm, maximum outer diameter is φ8.6mm, and minimum outer diameter is
φ7.4mm. In the case of the D6F-P series, the maximum outer diameter of the pipe is
φ4.9mm. When using a bamboo type, be sure to design an airproof structure. If leakage
occurs from the joint, a correct measurement cannot be achieved.
Please note that don't turn the pipe to the right when connecting the pipe to the bamboo
joint. In case the pipe is turned to the right, the internal part of the bamboo joint might be
worked loose and worked off.
Through hole
Through hole
Through hole
Through hole

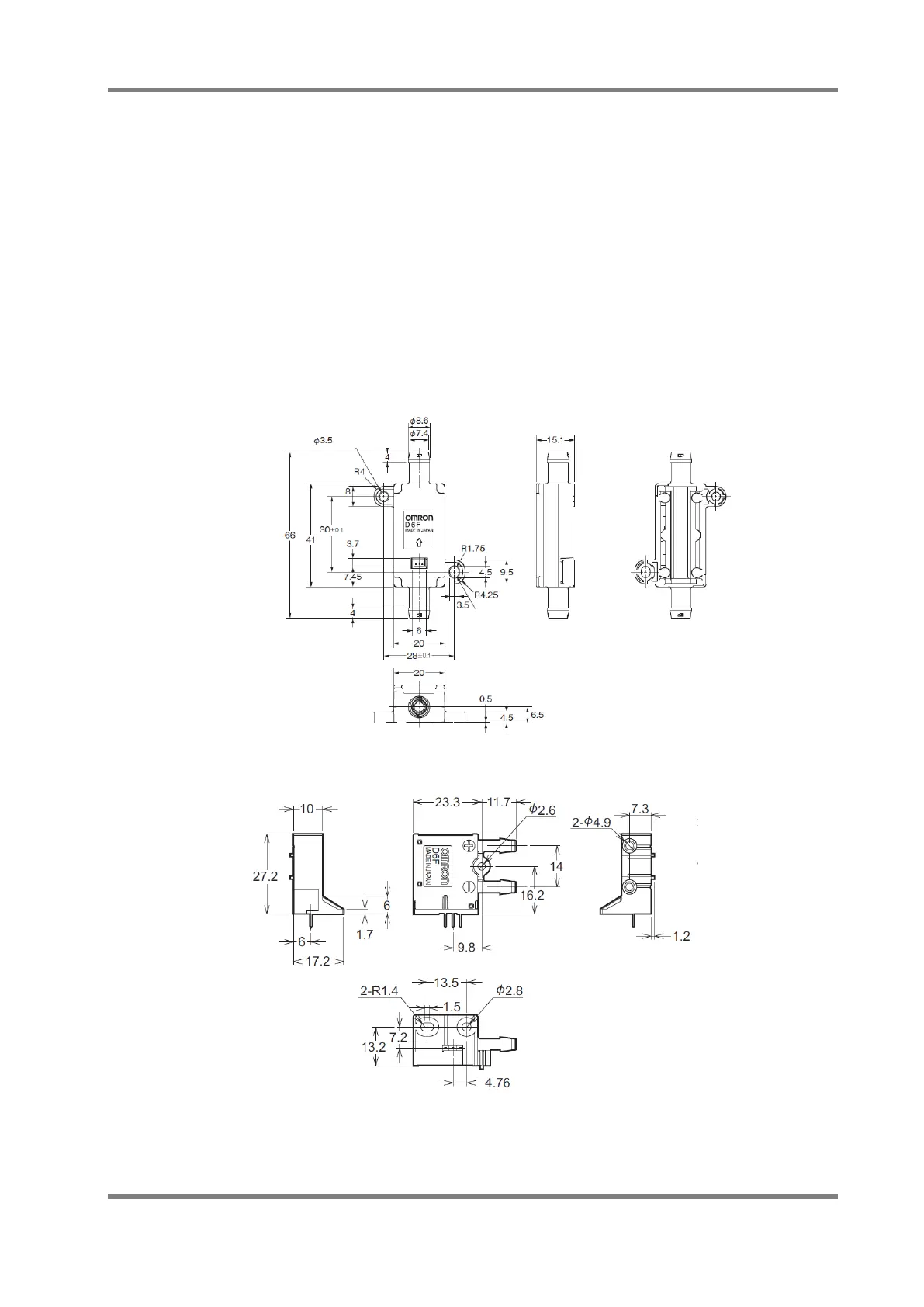

Fig.13 D6F-01A1-110 Outline Dimensions
Fig.14 D6F-P0010A1 Outline Dimensions
