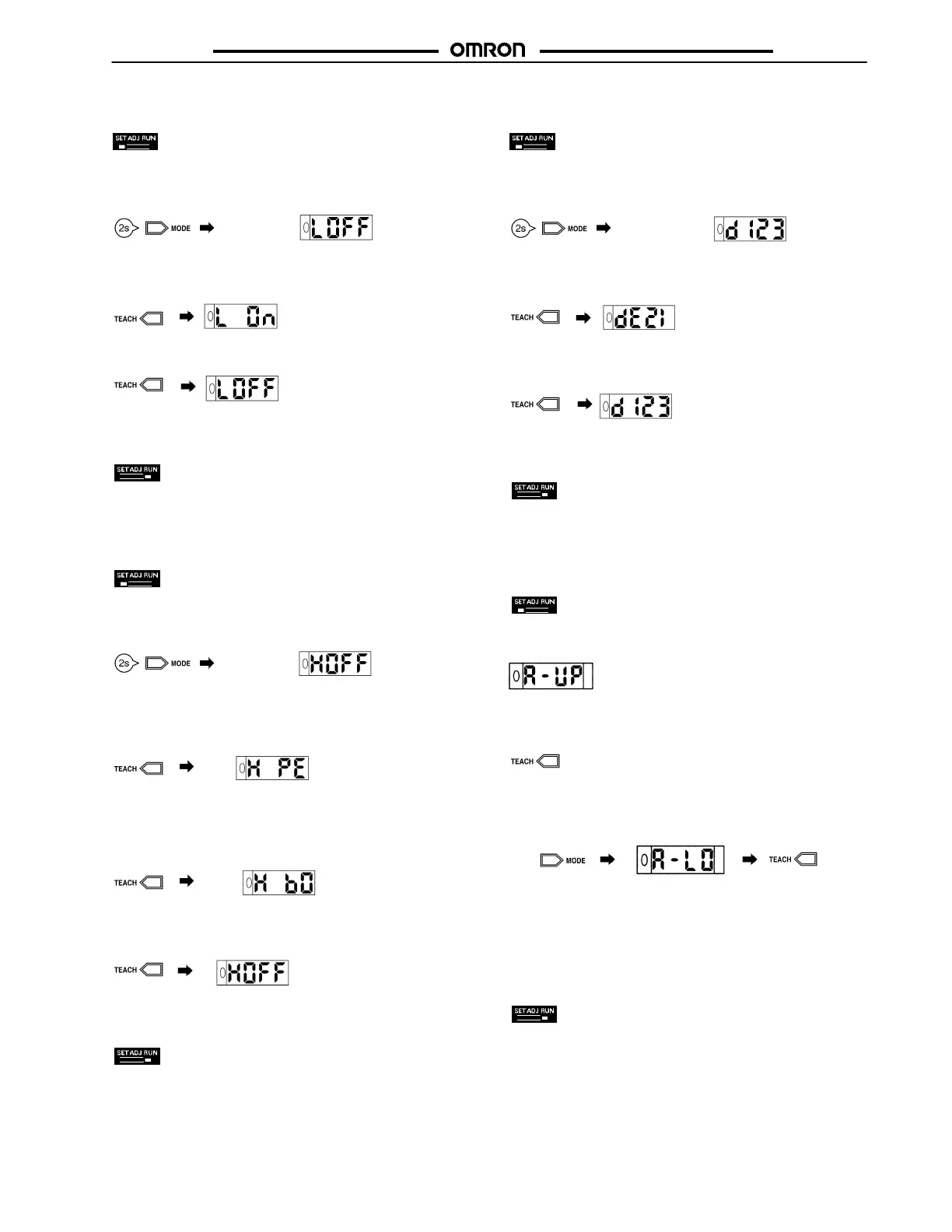

Flashing Function
1. Set the “SET ADJ RUN” switch to “SET” position.
2. Press the “MODE” button until “LOFF” is displayed. “LOFF is
the default setting.
Off (Factory-set)
3. Press the “TEACH” button to activate the “flashing” function.
Display should read “L On”
4. Press the “TEACH” button to return to the “LOFF” mode.
5. Set the “SET ADJ RUN” switch to “RUN” position to imple-
ment settings from the teach function.
Display Hold Setting Function
1. Set the “SET ADJ RUN” switch to “SET” position.
2. Press the “MODE” button until “HOFF” is displayed. “HOFF”
is the default setting.
Off (Factory-set)
3. Press the “TEACH” button to activate “Peak Hold” display.
Displayed data get updated every 2 seconds. The maximum
value is displayed.
Peak
4. Press the “TEACH” button to activate “Bottom Hold” display.
Displayed data gets updated every 2 seconds. The minimum
value is displayed.
Bottom
5. Press the “TEACH” button to return to the default setting.
“HOFF”.
Off
6. Set the “SET ADJ RUN” switch to “RUN” position to imple-
ment settings from the teach function.
Display Orientation Setting Function
1. Set the “SET ADJ RUN” switch to “SET” position.
2. Press the “MODE” button until “d123” is displayed. “d123” is
the standard setting.
Standard (Factory-set)
3. Press the “TEACH” button to change the orientation of the
display. “dE21” should now appear in the display.
4. Press the “TEACH” button to return to the standard setting,
“d123”.
5. Set the “SET ADJ RUN” switch to “SET” position to imple-
ment settings from the teach function.
J MONITOR FOCUS
1. Set the “SET ADJ RUN” switch to “SET” position.
2. Press the “MODE” button until “A–UP” is displayed.
3. Press the “TEACH” button to set the desired “upper limit
setting” of the incident level.
4. To set “lower limit setting,” press the “MODE” button until
“A–LO” is displayed. Press the “TEACH” button to set the
lower limit setting.
Note: It is not possible to set an “upper limit” that is lower than
the value of the “lower limit”. Conversely, it is not possible
to set a “lower limit” that is greater than the value of the
“upper limit”
5. Set the “SET ADJ RUN” switch to “RUN” position to imple-
ment settings from the teach function.
