Omron E3X-DA-N - Two-Point Teach Mode; Pinpoint Teach Mode (Positioning)

E3X-DA-N
E3X-DA-N
9

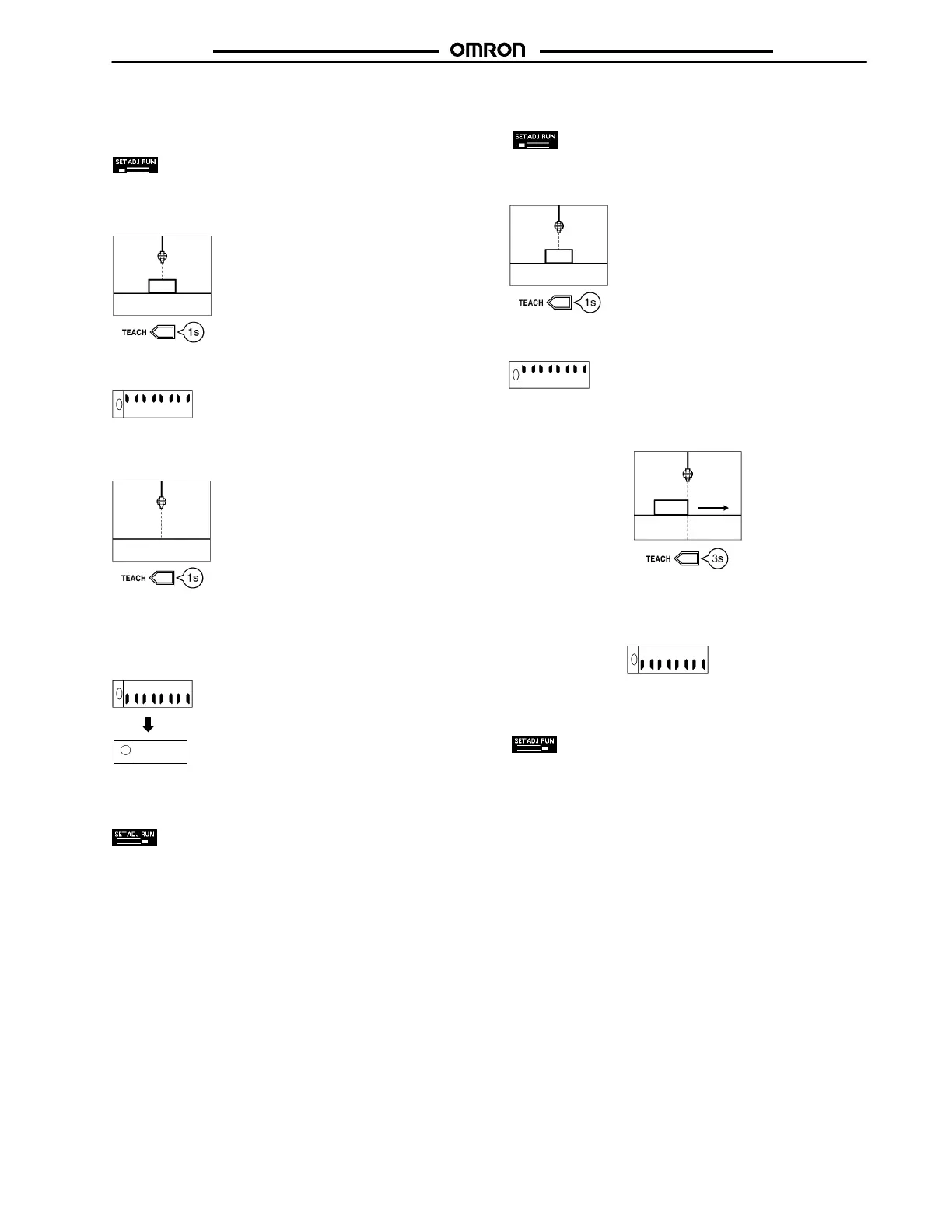

J TWO-POINT TEACH MODE
WITH/WITHOUT OBJECT
1. Set the “SET ADJ RUN” switch to “SET” position.
2. Press the “TEACH” button for approximately 1 second when
the object is at the sensing position.
Object
3. The red level display is lit.
(Red)
4. Remove the object from the sensing area, and press the
“TEACH” button for approximately 1 second.
5. Teaching is complete when the green level display is lit.
Digital incident level will appear shortly after the green dis-
play is lit. (The red level display will flash if a teaching error
occurs.)
(Green)
1234
6. Set the “SET ADJ RUN” switch to “RUN” position to imple-
ment settings from the teach function.
Note: The order of “with-object” and “without-object” setting pro-
cedures above can be reversed.
J PINPOINT TEACH MODE (POSITIONING)
1. Set the “SET ADJ RUN” switch to “SET” position.
2. Press the TEACH button for approximately 1 second with no
object
Object
3. The red level display is lit.
(Red)
4. Place the object in the desired position and press the TEACH
button for 3 seconds minimum.
Object
5. Teaching is complete when the green level display is lit. Digi-
tal incident level will appear shortly after the green display is
lit. (The red level display will flash if a teaching error occurs.)
(Green)
6. Set the “SET ADJ RUN” switch to “RUN” position to imple-
ment settings from the teach function.
