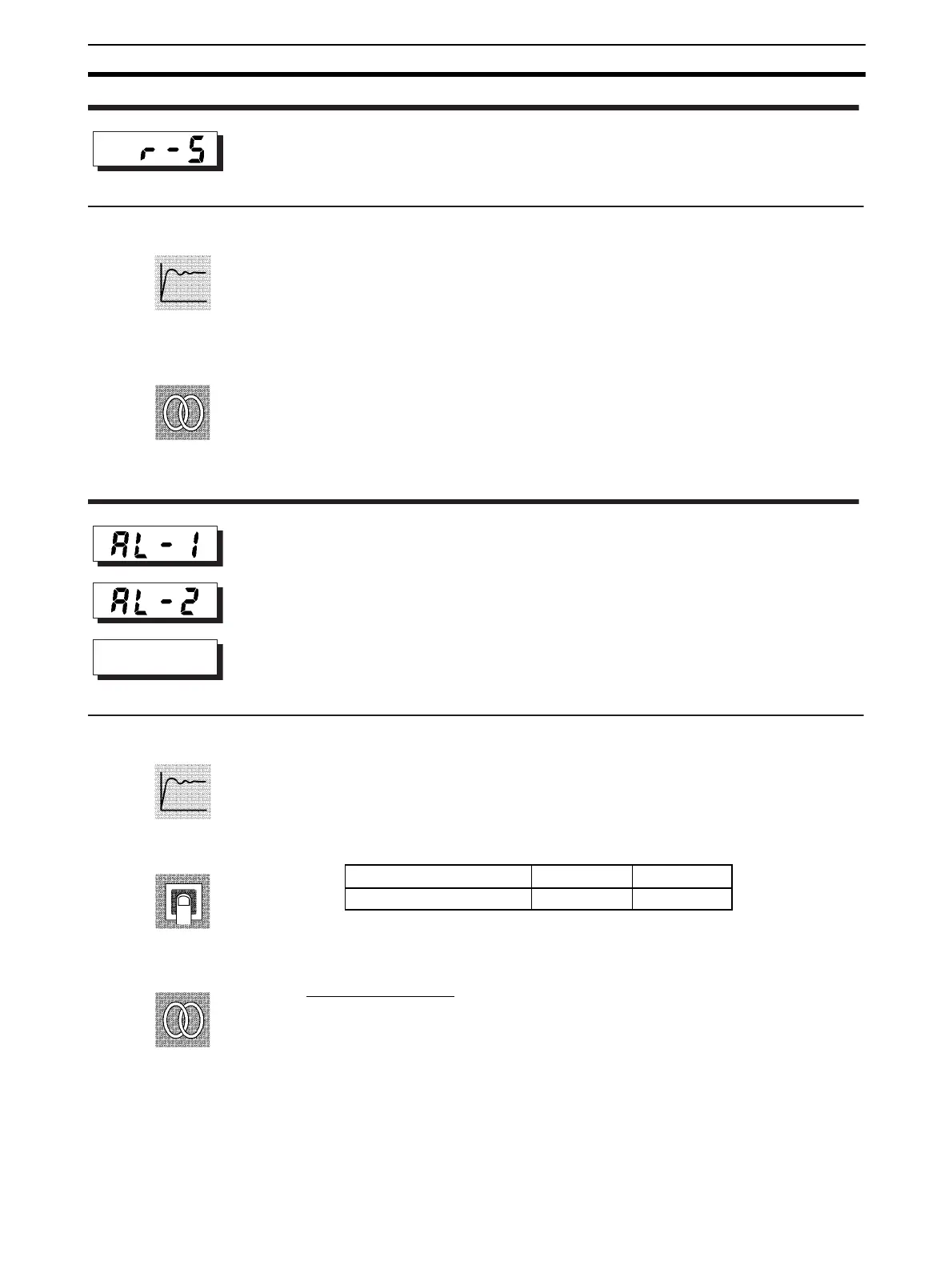

Operation Level Section 5-3
This parameter specifies run and stop.
When “run: run” is selected, control is running. When “stop: stop” is
selected, control is stopped. When control is stopped, the STOP display
lights.
Default is “run”.
When the run/stop function is being controlled by event input, the run/stop
function cannot be set by operating the keys on the front panel.
This parameter sets the input value “X” in the alarm type list.
• This parameter is used for setting the alarm values of alarm outputs 1 to
3.
• During temperature input, the decimal point position is dependent on the
currently selected sensor, and during analog input, it is dependent on the
“decimal point” parameter setting.
The alarm type must be set to other than upper- and lower-limit alarm.
■ Related parameters
“Input type” “Scaling upper limit” “Scaling lower limit” “Decimal point”
“Alarm 1 type” “Alarm 2 type” “Alarm 3 type” (initial setting level)
“Alarm 1 open in alarm” “Alarm 2 open in alarm” “Alarm 3 open in alarm”
“Alarm 1 hysteresis” “Alarm 2 hysteresis” “Alarm 3 hysteresis” “Standby
sequence reset”, “Alarm 1 to 3 latch” (advanced function setting level)
Run/Stop
The run/stop function must not be set
to event input assignments 1 and 2.
Function
See
Alarm value 1
The alarm type must be set to other
than upper- and lower-limit alarm.
Alarm value 2
The control must be set to standard
control. (Alarm value 3 only)
Alarm value 3
al-3
Setting Range
Unit Default
−1999 to 9999 EU 0
Function
Setting
See
