Adjustment Level Section 5-4
5-4 Adjustment Level
This level is for executing AT (auto-tuning) or setting up the control.
This level provides you with basic controller setup parameters for PID (propor-
tional band, integral time, derivative time) and heating/cooling control.
To move to the adjustment level from the operation level, press the key
for less than one second.
The set points 0 to 3 in the adjustment level are set values for switching
the set point during multi-SP input.
Heater current value monitor and HBA detection are displayed when
option unit (E53-AZH) is mounted on the E5AZ/E5EZ.
You can change adjustment level parameters by setting Operation/adjust-
ment protect to “0”. If the protect level is set to “1” to “3”, adjustment level
parameters cannot be displayed.

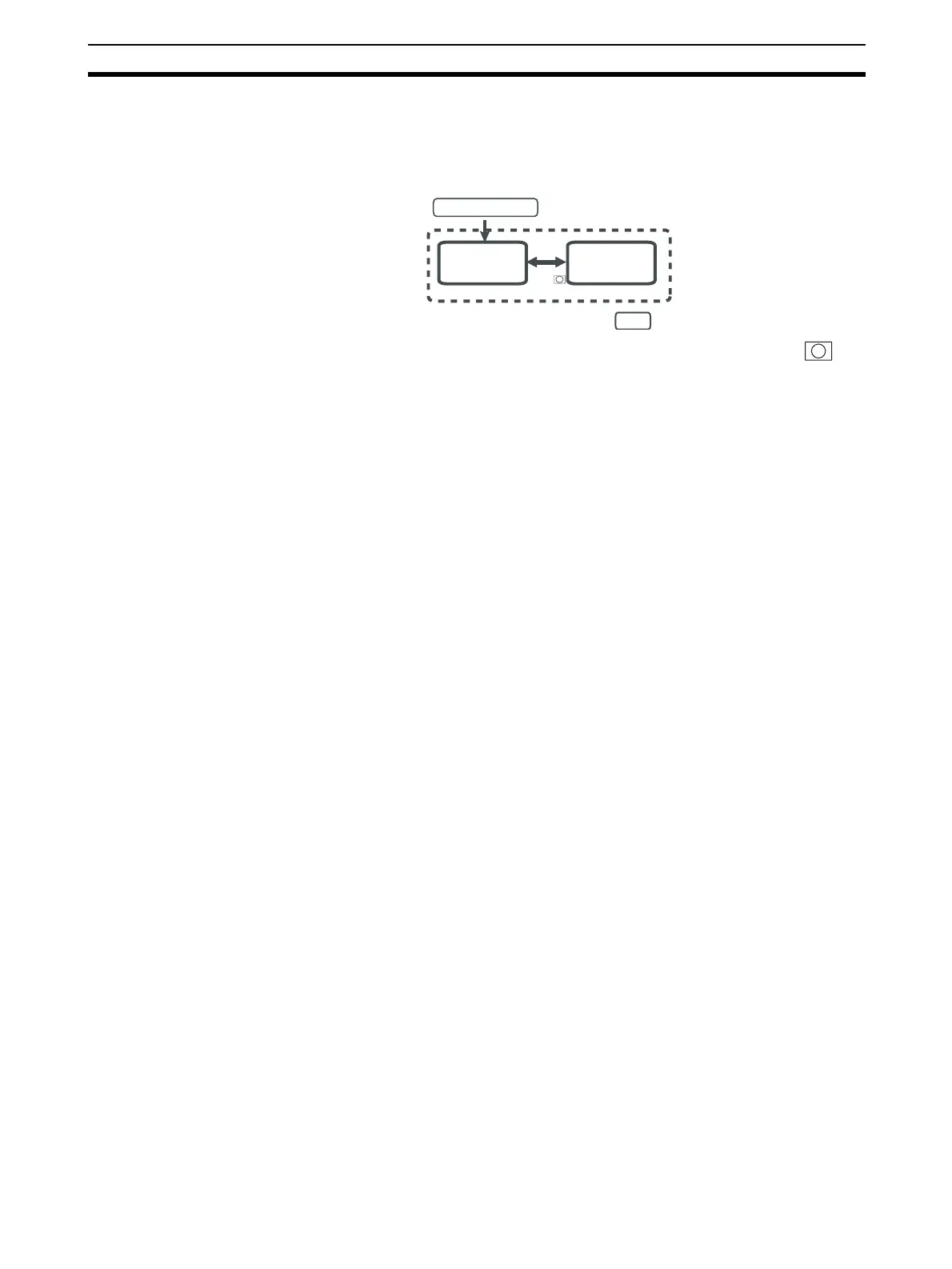

Power ON
Operation
Level
Adjustment
Level
Press
key less than 1 second.
Control in progress
