6
Setting Level Configuration and Key Operations Section 1-3

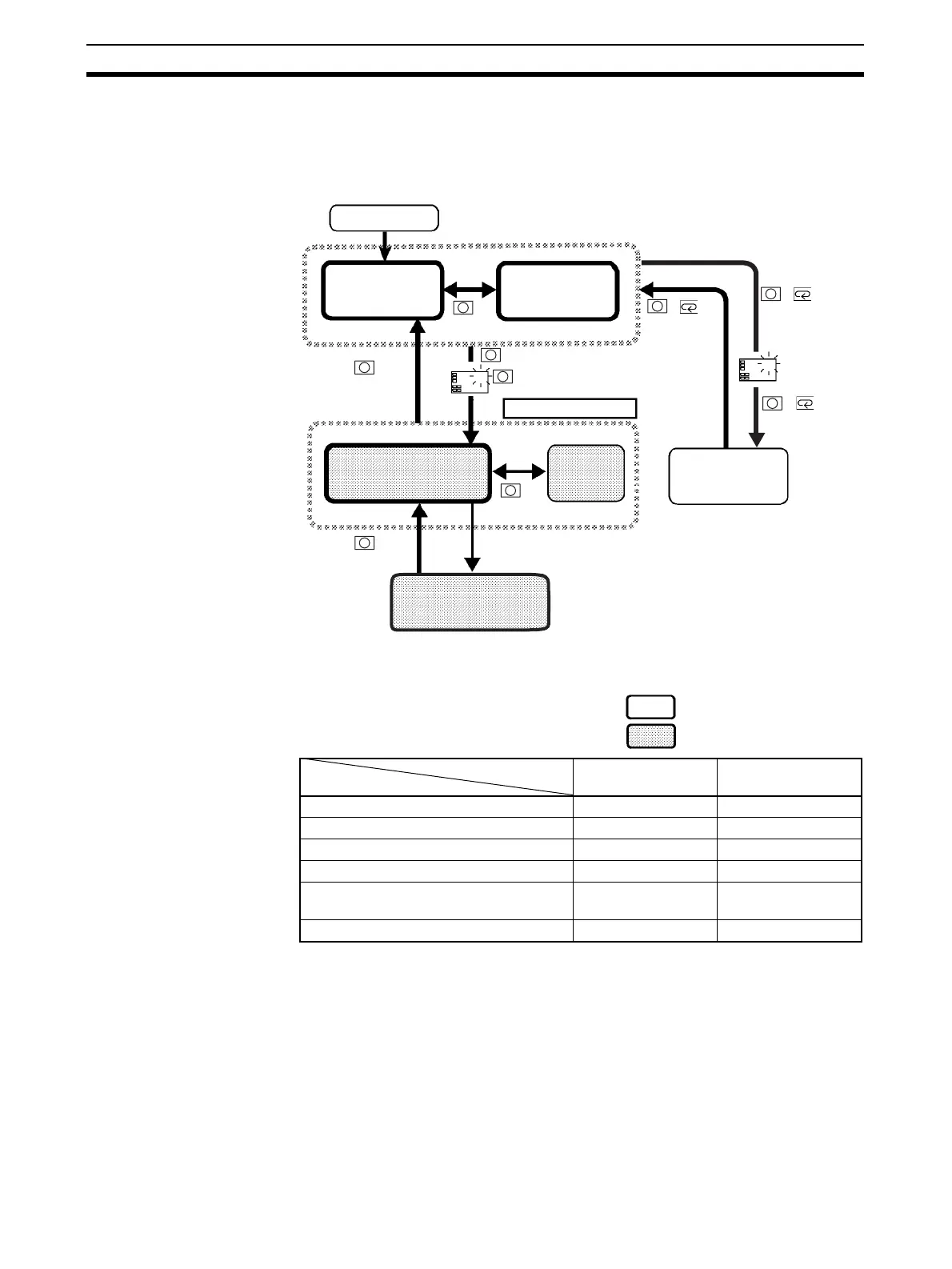

1-3 Setting Level Configuration and Key Operations
Parameters are divided into groups, each called a “level”. Each of the set val-
ues (setup items) in these levels are called a “parameter.” The parameters on
the E5AZ/E5EZ are divided into the following six levels:
Note Set the parameters in the “initial setting/communications protect” under “pro-
tect level” to “0”, to activate advanced function setting level.
Of these levels, the initial setting level, communications setting level, and
advanced function setting level can be used only when control has stopped.
Note that controller outputs are stopped when any of these three levels are
selected.
Control in
Progress
Control Stopped
Protect level Can be set. -
Operation level Can be set. -
Adjustment level Can be set. -
Initial setting level - Can be set.
Advanced function setting level
(See note.)
- Can be set.
Communications setting level - Can be set.
Advanced
function setting level
Password input
set value "−169"
Control stops.
Initial setting level
Less than
1 second
key
key
Commu-
nications
setting level
The PV display flashes after one second.
Power ON
Operation level
1 second min.
Protect level
Control in progress
Control stopped
Adjustment level
Less than
1 second
key
1 second min.
key
1 second min.
key
3 seconds min.key
3 seconds min.
+ keys
The PV display
flashes
25
100
25
100
+ keys
+ keys
Note :
Communications setting level is displayed
when the optional communications unit
E53-AZ01 or E53-AZ03 is mounted along
with the E53-AZM option board.
The key pressing time can be changed in
"Move to protect level time" (advanced
function setting level).
