124
Appendix

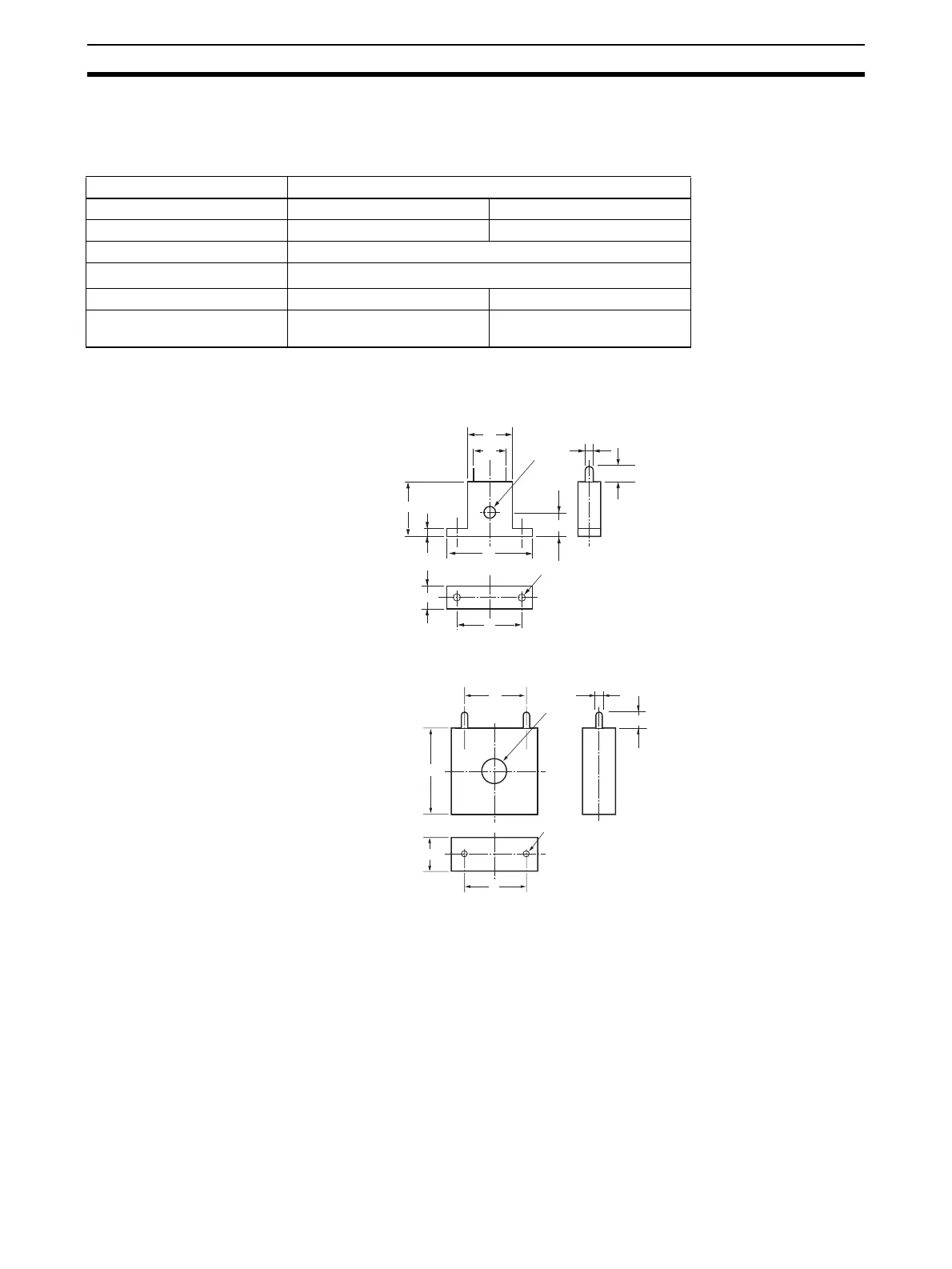

Current Transformer (CT)
Specifications
Note The maximum continuous current of the E5AZ/E5EZ is 50 A.
External Dimensions
Item Specifications
Model E54-CT1 E54-CT3
Max. continuous current 50 A 120 A (See note.)
Dielectric strength 1000 VAC (1 minute)
Vibration resistance
50 Hz 98m/s
2
{10G}
Weight Approx. 11.5 g Approx. 50 g
Accessory None Armature (2)
Plug (2)
E54-CT1
E54-CT3
30
21
15
5.8 dia.
25
3
40
10.5
2.8
7.5
10
Two, 3.5 dia.
40 × 40
30
12 dia.
9
2.36 dia.
15
30
Two, M3 holes (depth: 4)
