Omron E5AZ - Page 145

126
Appendix
Meaning
Though this is not an error, this is displayed when the process value exceeds the display range when the con-
trol range is larger than the display range (
−1999 to 9999 or −199.9 to 999.9).
• When less than “
−1999 or −199.9”
• When less than “9999 or 999.9”
Action
Control continues, allowing normal operation. An error message is displayed when “process value” or “PV/SP”
are displayed.
Meaning
Internal memory operation is in error.
Action
First, turn the power OFF then back ON again. If the display remains the same, the E5AZ/E5EZ must be
repaired. If the display is restored, then a probable cause could be electrical noise affecting the control system.
Check for electrical noise.
Operation at error
Control output and alarm output turn OFF. (Current output is approx. 0 mA).

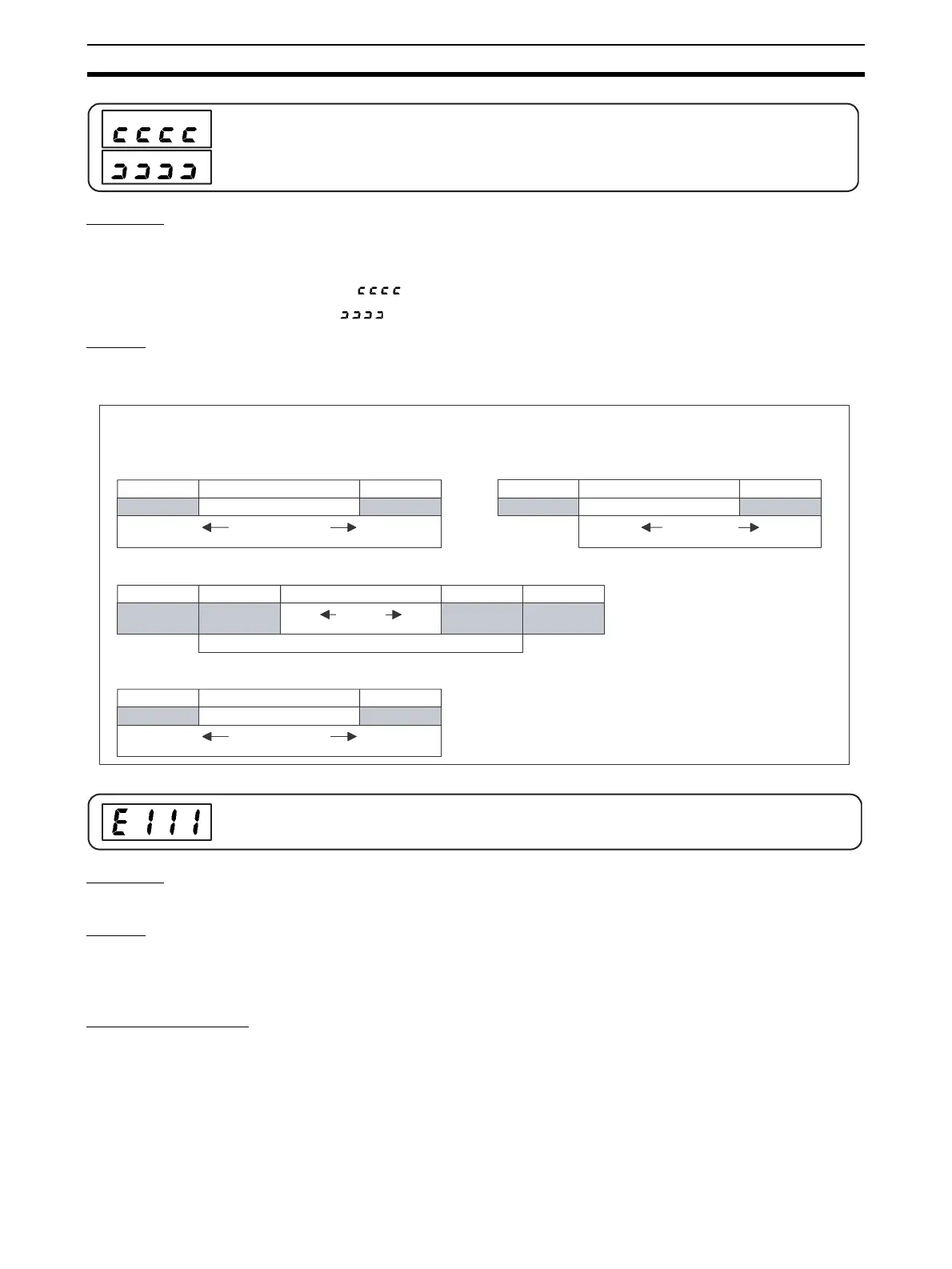

Display range over
●
Platinum resistance thermometer input
(setting range: does not include −199.9−500.0 (˚C) type)
Thermocouple input
(setting range: does not include −199.9−400.0 (˚C) type)
S.Err indicator S.Err indicator Numeric value display
Input indication range
Display range
Numeric value display
input indication range
display
range
S.Err indicator
Numeric value display
Input indication range
Display range
Numeric value display
Input indication range
display range
S.Err indicator cccc indicator
S.Err indicator S.Err indicator
S.Err indicator
cccc indicator cccc indicator
●
Analog signal input
Analog signal input
Display range < Numeric value display
Display range > Numeric value display
−1999
(−199.9)
9999
(999.9)
−1999
(−199.9)
9999
(999.9)
−1999
(−199.9)
−1999
(−199.9)
9999
(999.9)
9999
(999.9)
Platinum resistance thermometer input
(setting range: does not include −199.9−500.0 (˚C) type)
Thermocouple input
(setting range: does not include −199.9−400.0 (˚C) type)
Memory error
