12

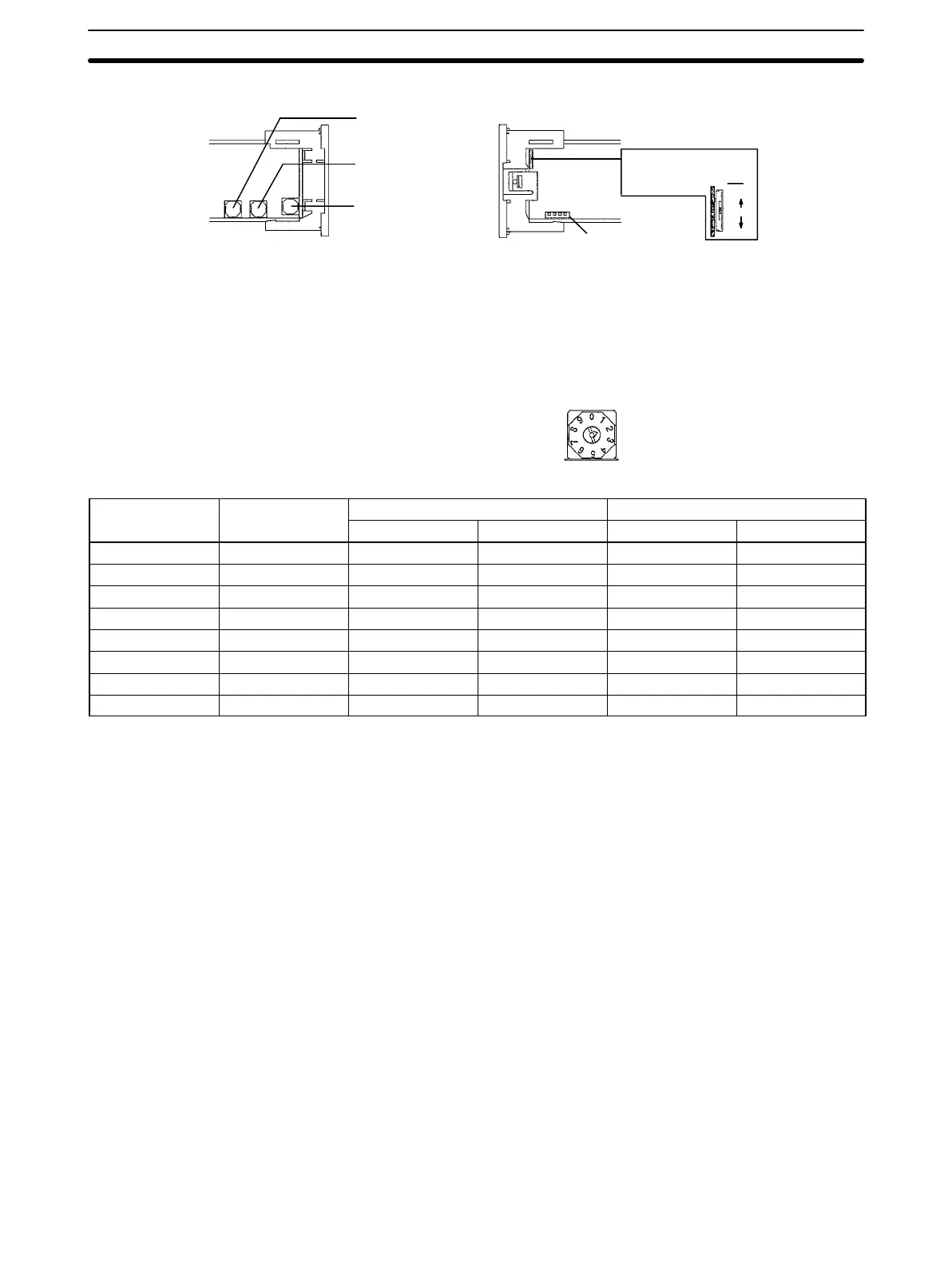

E5CJ
SP
OFF
ALL
Key protection
switch
PROTECT
Alarm mode selector 2
ALM2
ALM1
Alarm mode selector 1
INPUT
Input type selector
FUNCTION
Function selector
Top view
Bottom view
Note The E5CJ with no alarm does not incorporate ALM1 or ALM2.
2-3-2 Input Type Selector Setting
The input type selector is factory-set to 2 (K). Refer to the following table for the selection
of the desired sensor.
INPUT
Selector no. Input Set temperature range Specified temperature range
°C °F °C °F
0, 8 JPt100 –199.9 to 650.0 –199.9 to 999.9 –199.9 to 735.0 –199.9 to 999.9
1, 9 Pt100 –199.9 to 650.0 –199.9 to 999.9 –199.9 to 735.0 –199.9 to 999.9
2 K –200 to 1300 –300 to 2300 –350 to 1450 –560 to 2560
3 J –100 to 850 –100 to 1500 –195 to 945 –260 to 1660
4 T –199.9 to 400.0 –199.9 to 700.0 –199.9 to 460.0 –199.9 to 790.0
5 L –100 to 850 –100 to 1500 –195 to 945 –260 to 1660
6 U –199.9 to 400.0 –199.9 to 700.0 –199.9 to 460.0 –199.9 to 790.0
7 N –200 to 1300 –300 to 2300 –350 to 1450 –560 to 2560
Note The resistance of the JPt100 at a temperature of 100°C is 139.16 Ω and that of
the Pt100 at a temperature of 100°C is 138.50 Ω.
1, 2, 3... 1. To use Fahrenheit, set function selector 4 to ON, which is usually set to OFF.
2. Insert the internal mechanism into the case.
3. Turn on the E5J so that d-u will be displayed on the process value display.
Then press the Up Key so that f will be displayed on the set value display.
4. Turn off the power in two seconds.
5. Draw the internal mechanism from the case and set function selector 4 to
OFF and turn on the E5J.
Internal Switch Settings
Section 2-3
