Omron E5CJ-R2 User Manual

4

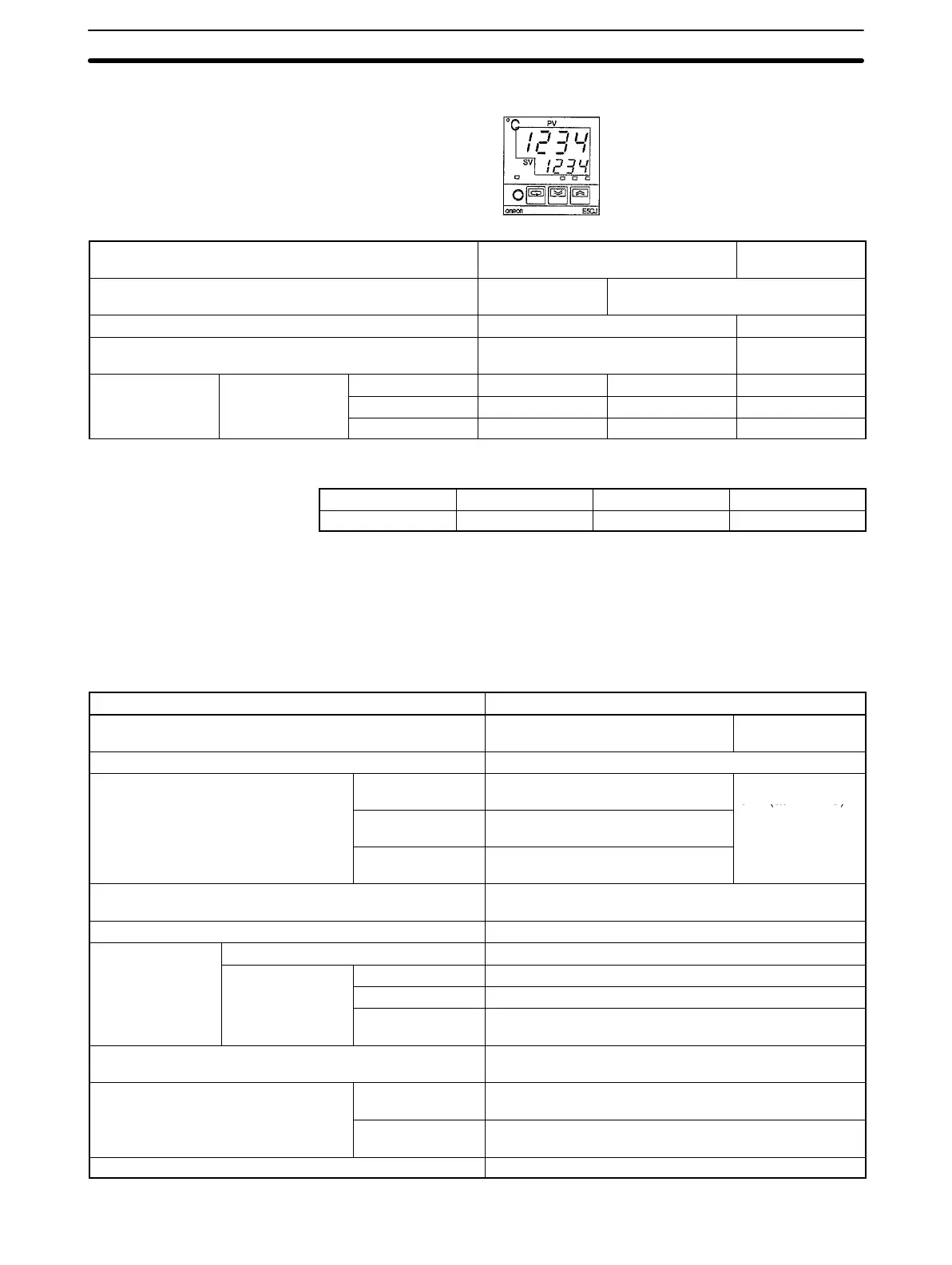

E5CJ (Simple and Standard Models)
48 X 48mm
Type Simple model type Standard model
type
Alarm --- 2 replay output points with the same
common. (see note 1)
Heater burnout alarm --- Yes (see note)
Event input --- 1 point (set point
selection)
Model Control output Relay output E5CJ-R E5CJ-R2 E5CJ-R2HB
Voltage output E5CJ-Q E5CJ-Q2 E5CJ-Q2HB
Current output E5CJ-C E5CJ-C2 E5CJ-C2B
Note No heater burnout alarm is output if a current control output is used.
Communications RS-232C RS-422 RS-485
Model E53-J01 E53-J02 E53-J03
Note For details, refer to the E5AJ/E5EJ Communications Manual (Z102).
1-3 Specifications
1-3-1 Ratings
E5J
Item Specification
Supply voltage 100 to 240 VAC, 50 or 60 Hz 24 V AC/DC,
50 or 60 Hz
Operating voltage range 85 to 110% of supply voltage
Power consumption E5AJ 10 VA (at 100 VAC) to
14 VA (at 240 VAC)
10 VA (at 24 VAC)
6 W (at 24 VDC)
E5EJ 10 VA (at 100 VAC) to
14 VA (at 240 VAC)
6 (at C)
E5CJ 10 VA (at 100 VAC) to
12 VA (at 240 VAC)
Input Thermocouples (K, J, T, L, U, and N) and platinum
resistance thermometers (JPt100 and Pt100)
CT input Dedicated CT (E54-CT1 or E54-CT3)
Control output E5AJ/E5EJ Replaceable Output Unit (sold separately)
E5CJ Relay output SPST-NO, 3 A at 250 VAC (resistive load)
Voltage output 20 mA at 12 VDC (with short-circuit protection)
Current output 4 to 20 mA DC with a load of 600 Ω max. and a
resolution of approx. 2600
Control mode ON/OFF or advanced PID with fuzzy self-tuning and
auto-tuning
Alarm output E5AJ/E5EJ 2 SPST-NO relay output points, 3 A at 250 VAC
(resistive load)
E5CJ 2 SPST-NO relay output points (with the same common),
1 A at 250 VAC (resistive load)
Setting method Digital setting with Up Key and Down Key
Communications Boards
Specifications
Section 1-3
